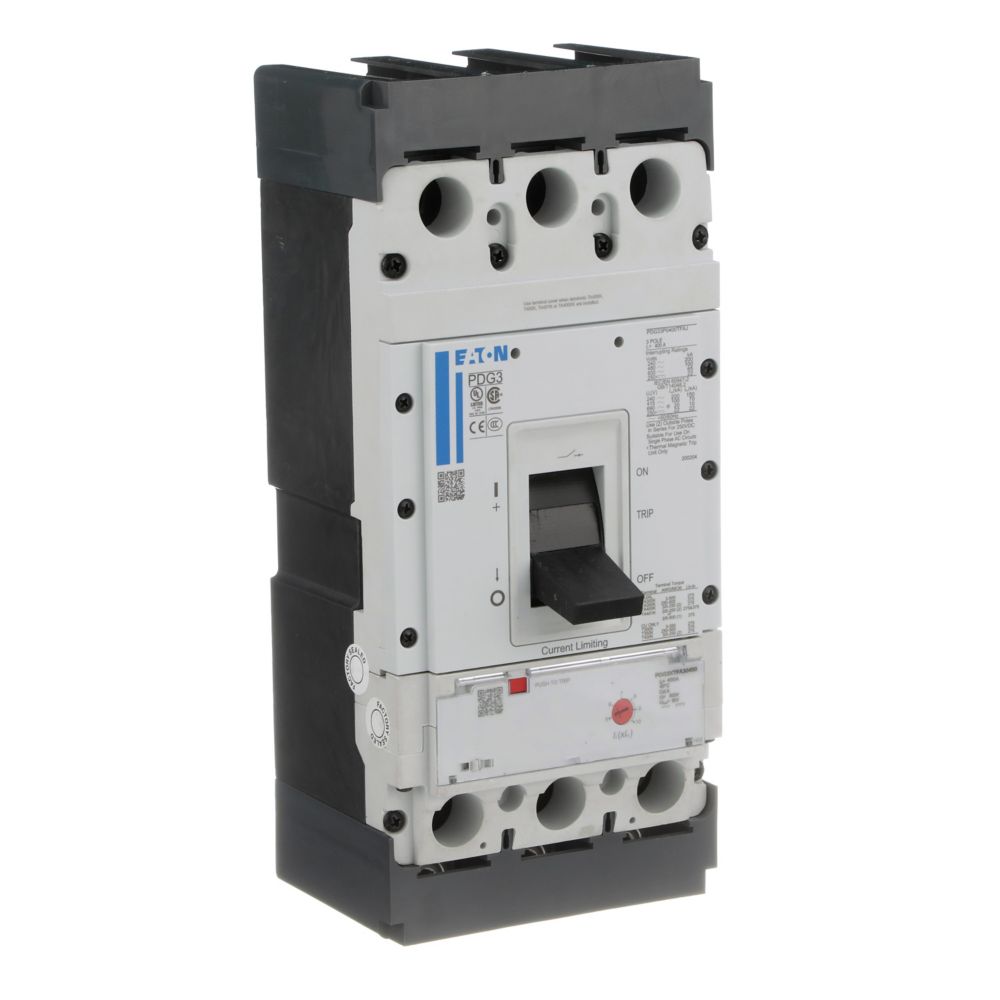

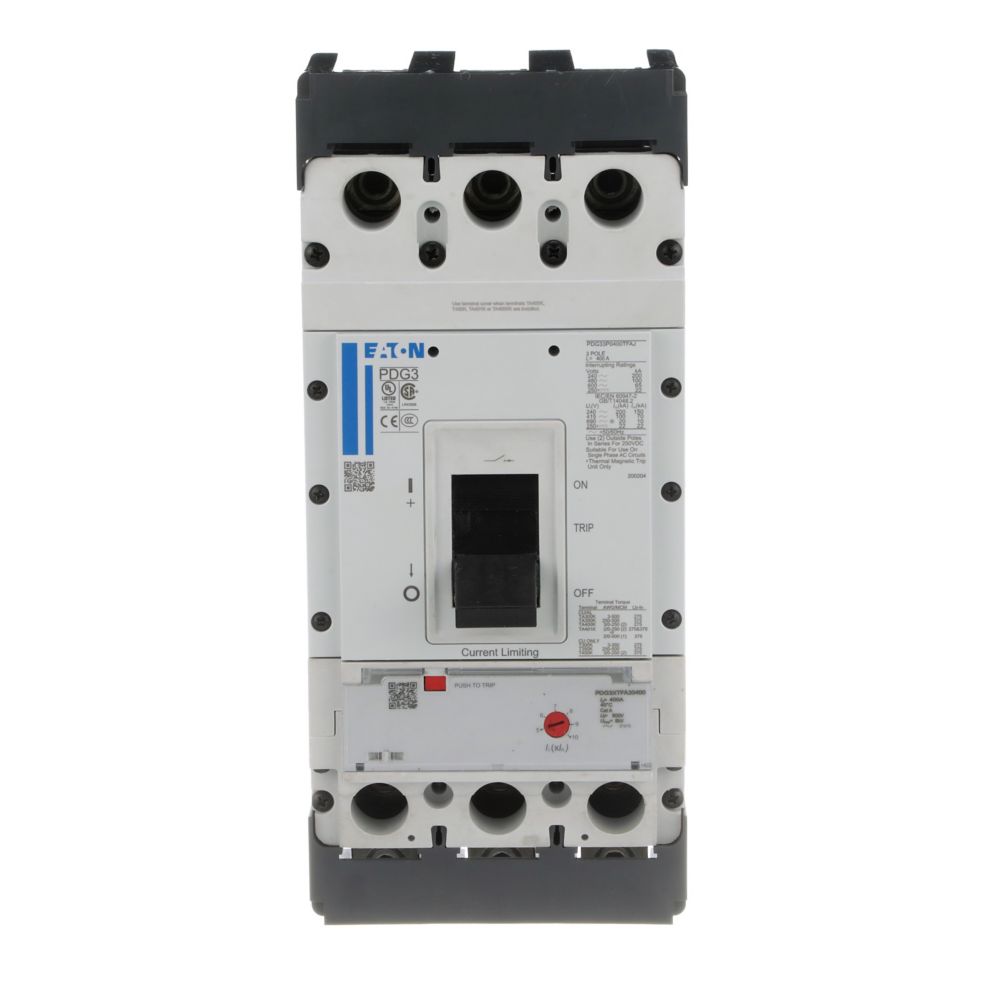

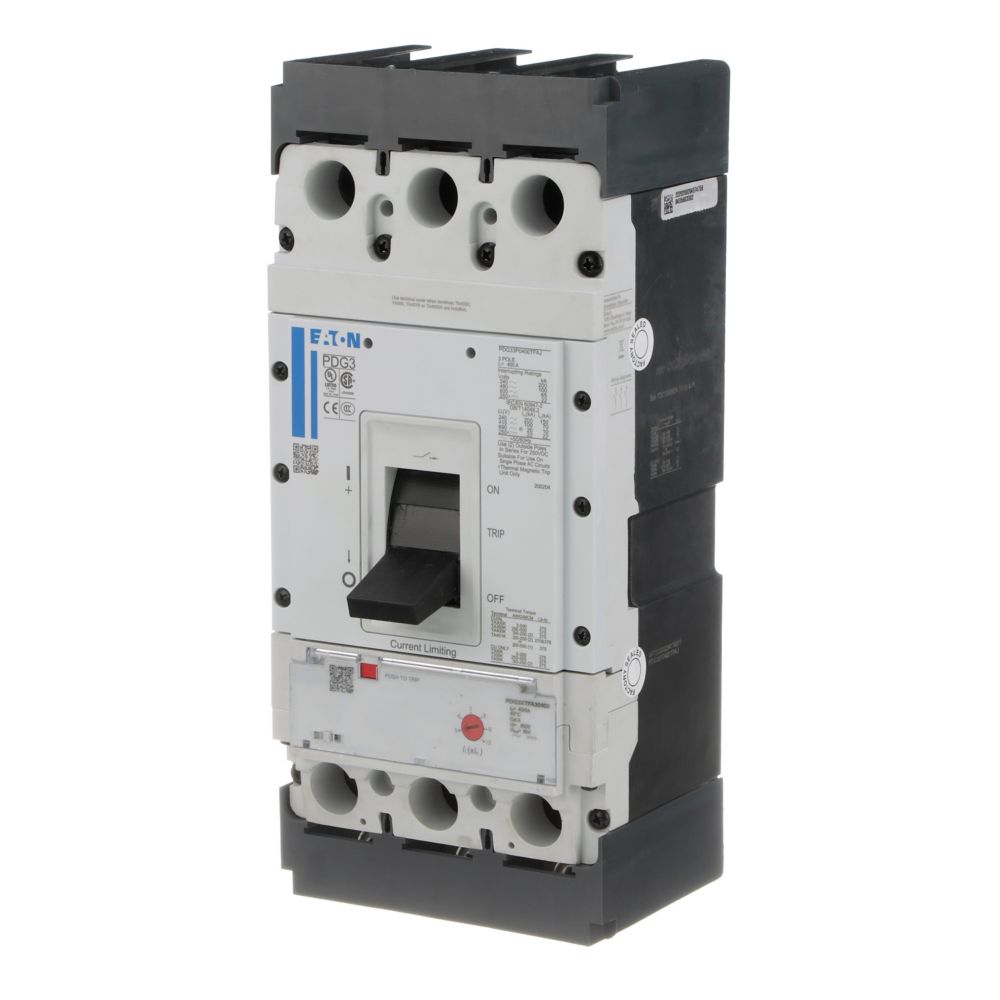

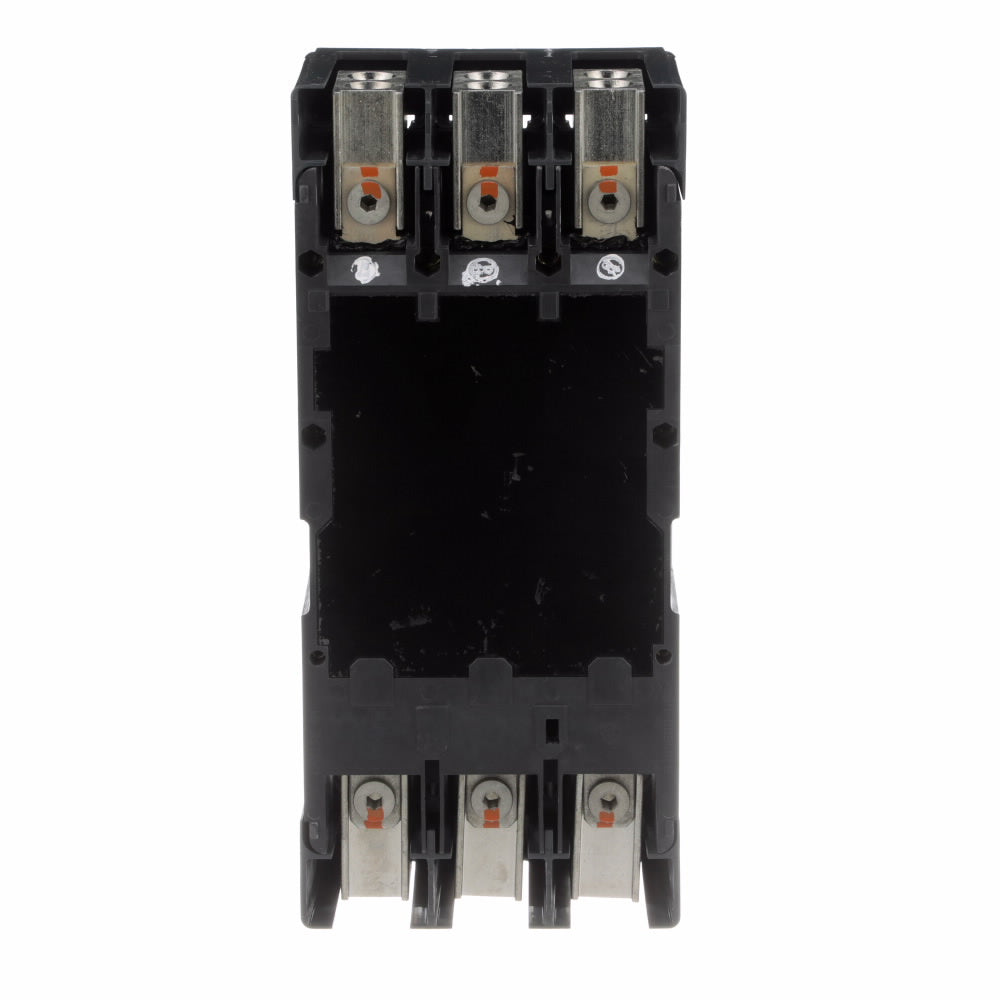

PDG33M0250TFAL - Eaton 250 Amp 600 VAC 3 Pole Molded Case Circuit Breaker Frame 3 T-M Fixed-Adjust Trip Unit

PDG33M0250TFAL

PDG33M0250TFAL is a 3 pole, 250 amp molded case circuit breaker from Eaton designed for 600 VAC applications with a Frame 3 size.This Eaton Power Defense series breaker features a fixed-adjustable thermal-magnetic trip unit, a 65 kA interrupt rating at 480 VAC, and is UL 489 listed. It supports global standards including UL, CSA, IEC, and CCC, and includes advanced features like arc flash reduction and embedded communications for enhanced safety and maintenance.

• Amperage: 250 Amp
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: 3 Frame
• Interrupt Rating: 65 kA at 480 VAC, 45 kA at 600 VAC
• Trip Unit: Thermal Magnetic Fixed-Adjust (T-M Fxd-Adj)
• Mounting Type: Panel Mount
• Certifications: UL 489, CSA, IEC, CCC
• Arc Flash Reduction Maintenance System
• Embedded Communications and Metering
• Field Installable Components and Trip Units

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG33M0250TFAL
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679712740
• GTIN : 00786679712740
• Country of Origin : Dominican Republic
• Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
• Weight : 12.5103 lb
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
