PDG33M0250E3RN - Eaton 250A 600V 3P Molded Case Circuit Breaker Frame 3 PXR20 LSIG Trip

PDG33M0250E3RN

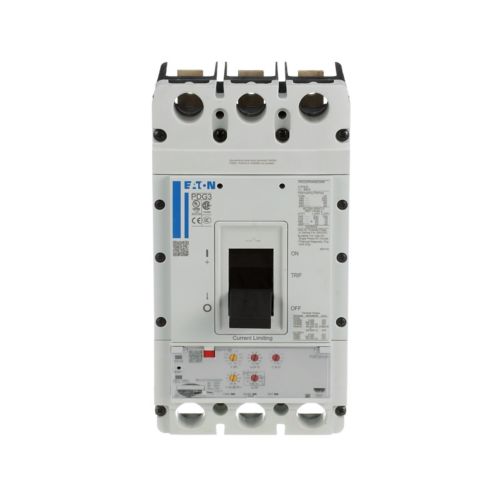

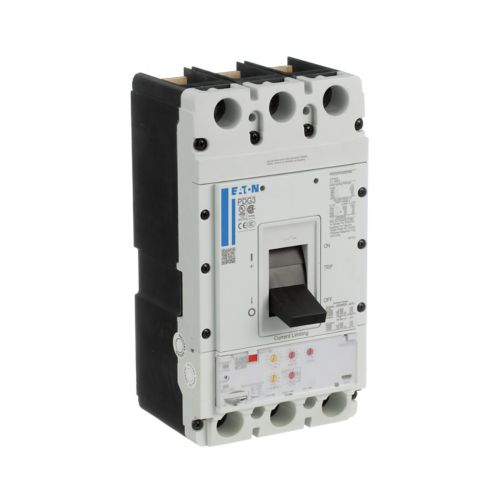

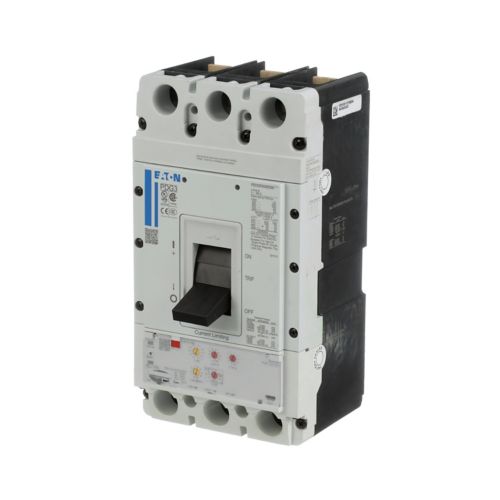

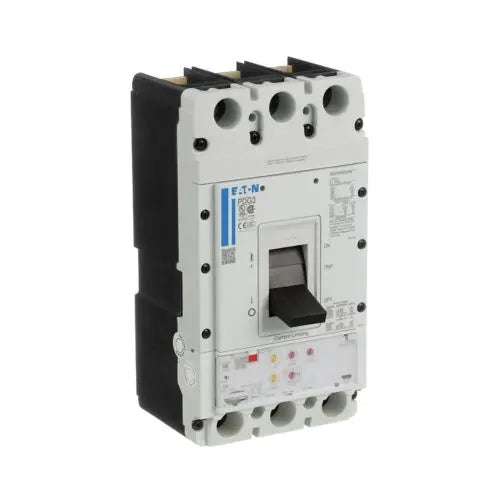

PDG33M0250E3RN is a globally rated three-pole molded case circuit breaker from Eaton's Power Defense series, designed for reliable protection in demanding electrical environments. This breaker features a 250A current rating, 600V AC voltage rating, and a robust 65 kAIC interrupt rating at 480V, making it suitable for a wide range of industrial and commercial applications. The unit is equipped with a PXR20 LSIG trip unit for advanced protection and monitoring capabilities. This Eaton circuit breaker is built on Frame 3 and is designed for bolt-on mounting with terminal pads only—no lugs included. It is engineered for high performance and safety in critical power distribution systems.

• Part Number: PDG33M0250E3RN
• Manufacturer: Eaton
• Series: Power Defense
• Frame: 3
• Amperage Rating: 250 A
• Voltage Rating: 600 Vac
• Poles: 3
• Interrupt Rating: 65 kAIC at 480 Vac
• Mounting Type: Bolt-On

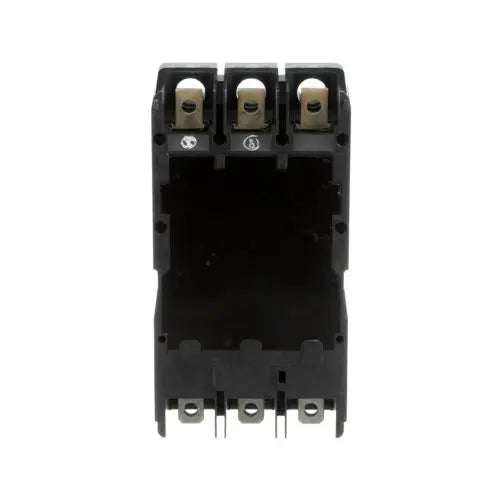

• Terminals: Terminal Pads Only (No Lugs)
• Frame Size Range: 45-600A
• Trip Unit: PXR20 LSIG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG33M0250E3RN
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 250
• AIC rating : 65kA@480V
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679266427
• GTIN : 0786679219485
• Country of Origin : Dominican Republic
• Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
• Weight : 13.2016 kg
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
