Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG33G0225TFAN

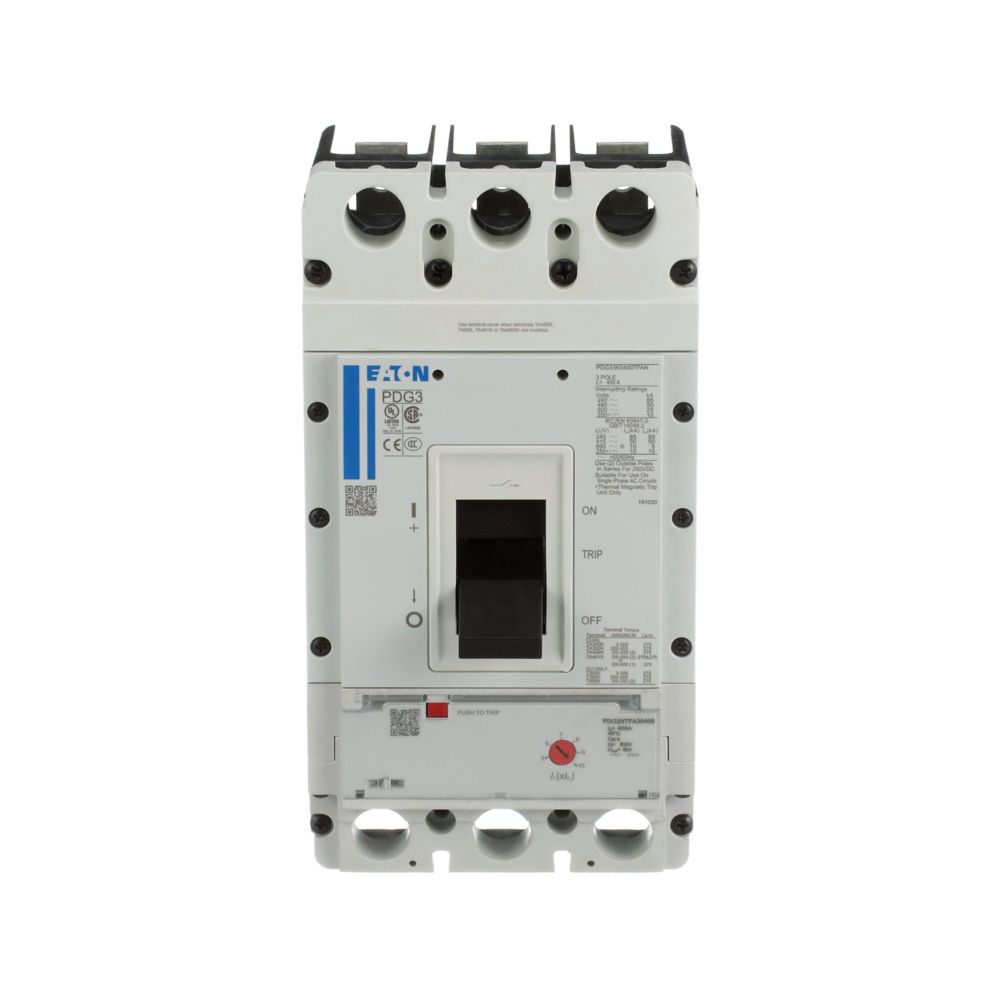

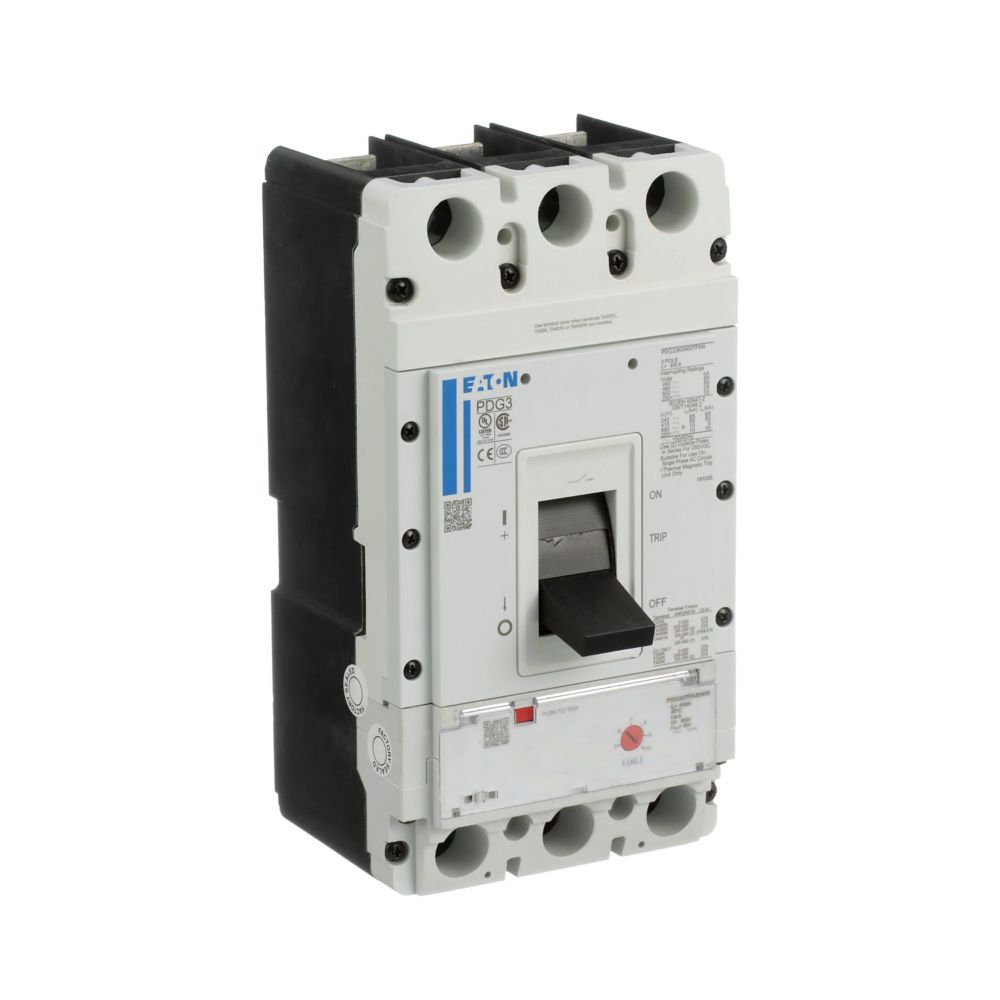

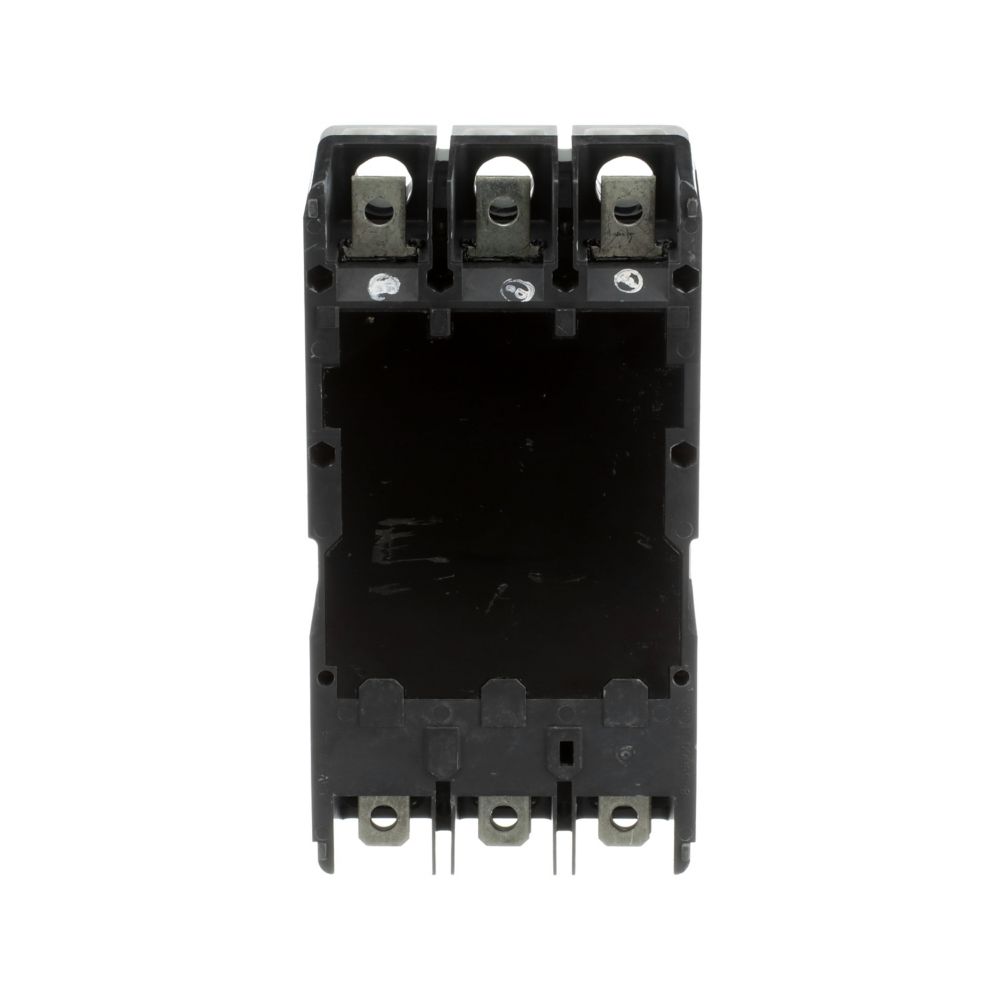

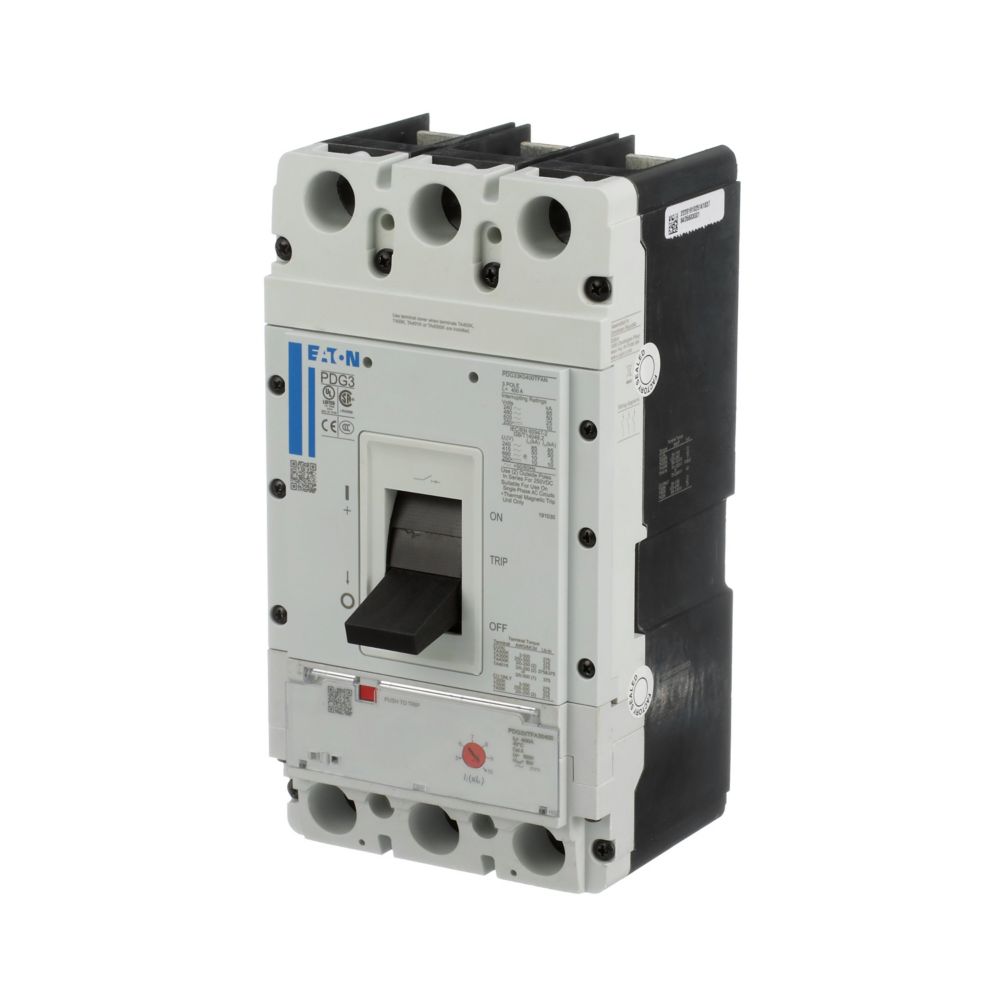

PDG33G0225TFAN is a 225 amp, 600 volt, 3 pole molded case circuit breaker from Eaton's Cutler Hammer Power Defense PD3 Global series.This PDG33G0225TFAN circuit breaker features a bolt-on mounting type and a 35kA interrupt rating at 480 volts AC. It is designed for reliable thermal magnetic trip protection in industrial and commercial power distribution applications. The breaker frame type is complete breaker, frame 3, and it meets global standards for performance and safety.
- Amperage Rating: 225 A
- Voltage Rating: 600 Vac
- Number of Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 35 kA at 480 V
- Series/Frame: PD3 Global, Frame 3
- Trip Unit: Thermal Magnetic
- Terminals: No Terminals
- Certifications: Meets global safety standards
Specifications
- Part Number: PDG33G0225TFAN
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679265383
- Country of Origin : Dominican Republic
- Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
- Weight : 12.5103
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
