2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG33F0175TFAJ

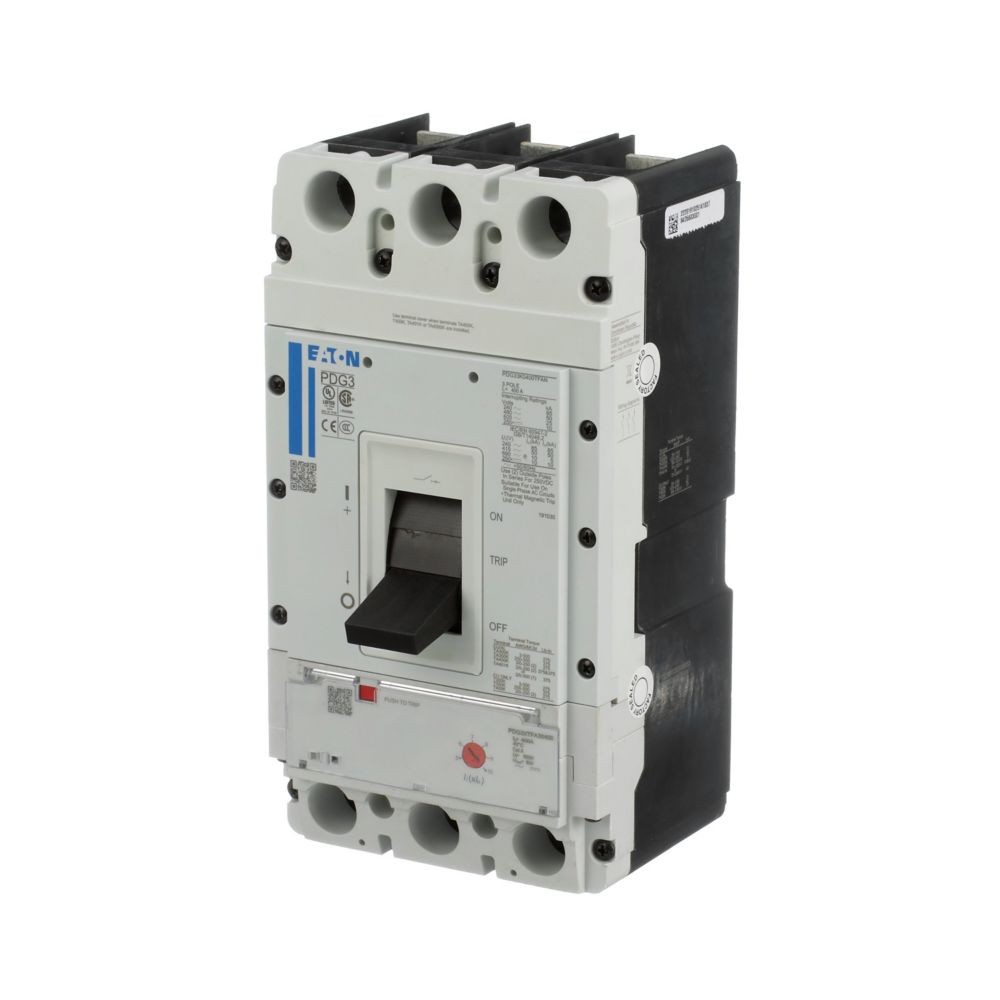

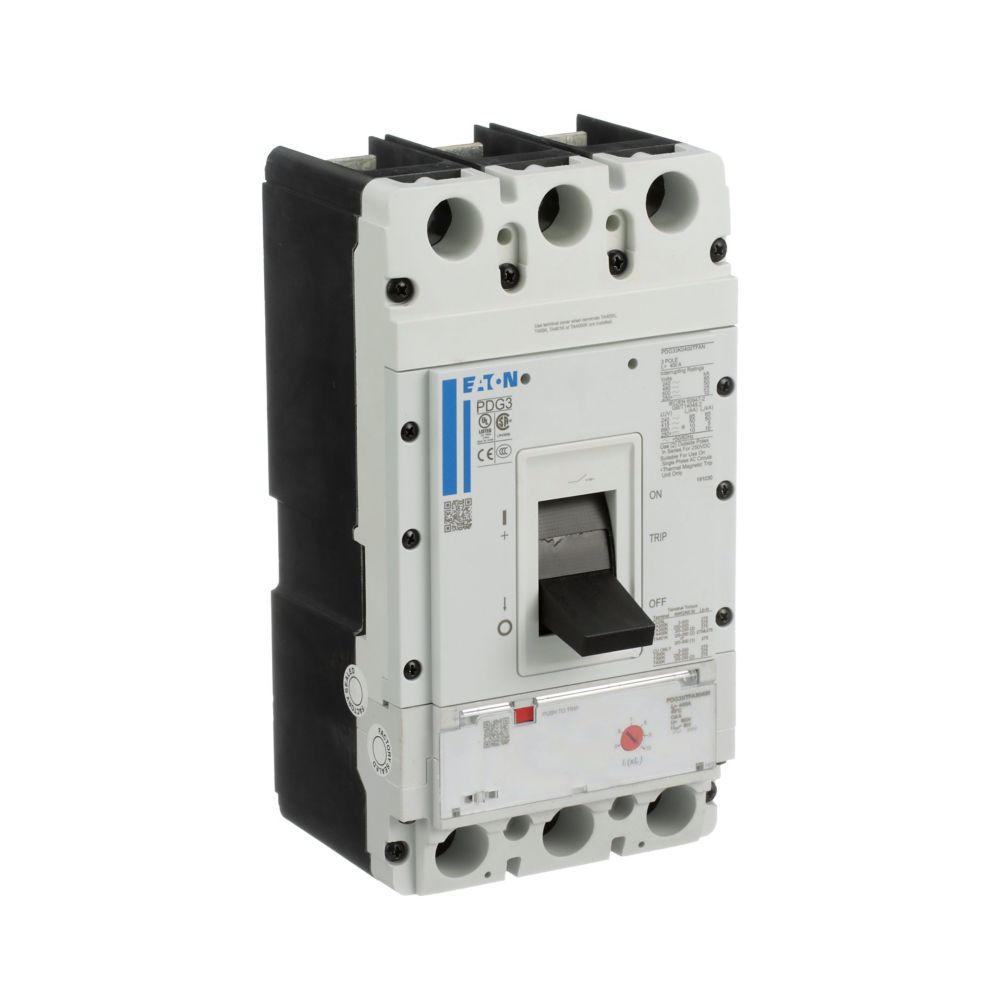

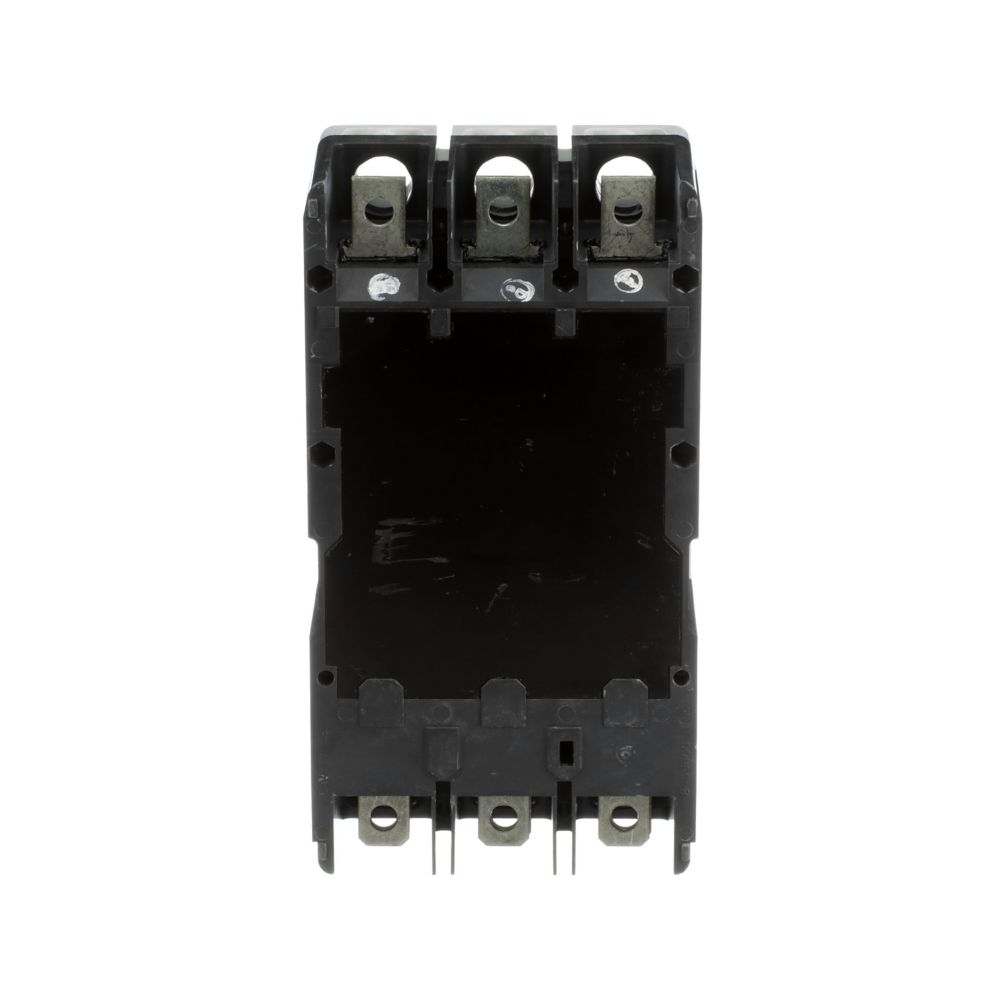

PDG33F0175TFAJ is a 3-pole thermal magnetic molded case circuit breaker from Eaton Cutler Hammer designed for reliable power protection in industrial and commercial applications. It features a 175 ampere rating and supports voltages up to 600VAC.This circuit breaker belongs to the Power Defense Globally Rated PDG series with Frame 3 construction. It offers a 25kA interrupt rating at 480V UL standard, fixed-adjustable thermal magnetic trip unit, and is engineered for long-time and instantaneous trip functions. The breaker measures 257.1 mm in height, 138.9 mm in width, and weighs 5.61 kg.
- Key Specifications
- Amperage: 175A
- Voltage Rating: 600VAC
- Number of Poles: 3
- Interrupt Rating: 25 kA at 480V (UL)
- Series/Frame: PDG Series, Frame 3
- Trip Unit: Thermal Magnetic Fixed-Adjustable
- Mounting Type: Molded Case
- Product Dimensions: 257.1 mm H x 138.9 mm W
- Weight: 5.61 kg
- Certifications: UL Listed
Specifications
- Part Number: PDG33F0175TFAJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 786679581995
- Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
- Weight : 12.5103
