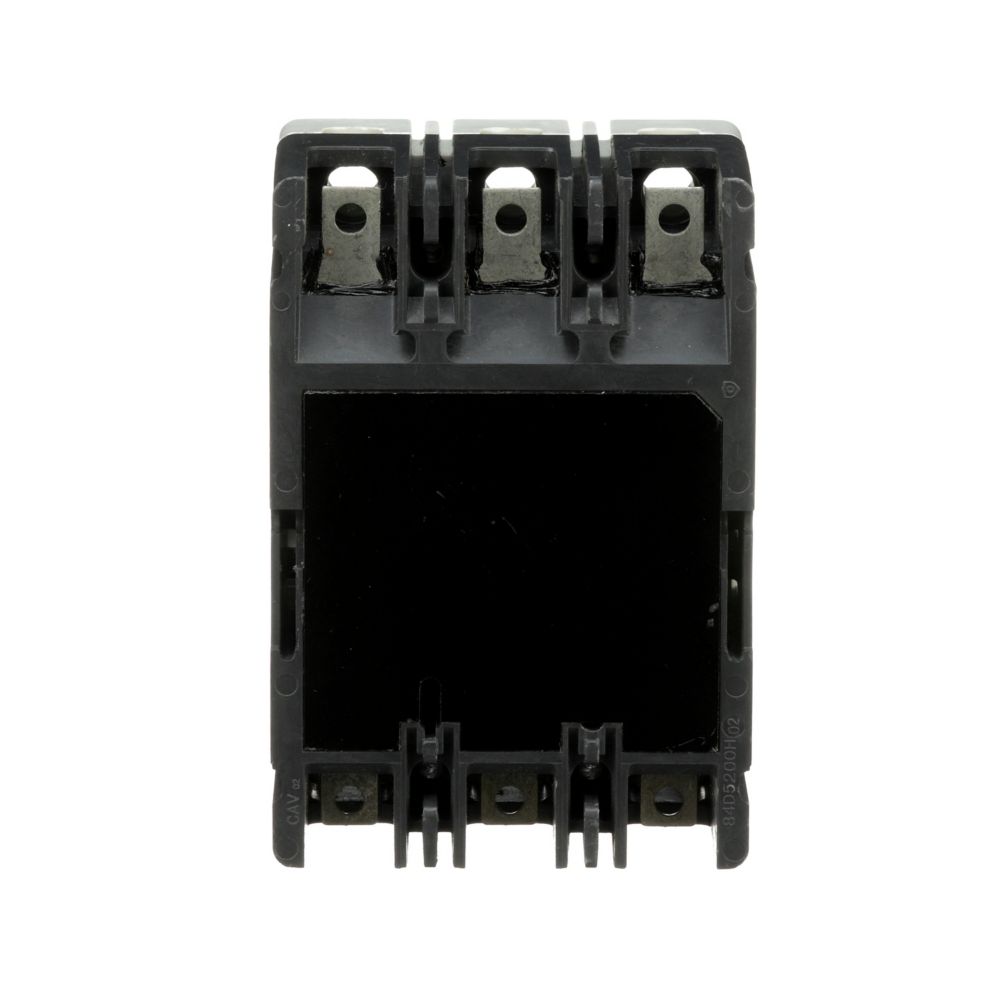

PDG23P0100TFFJ - Eaton Power Defense 100A 600V 3-Pole Molded Case Circuit Breaker Frame 2 100kAIC

PDG23P0100TFFJ

PDG23P0100TFFJ is a Eaton Power Defense molded case circuit breaker designed for reliable power distribution protection.This 3-pole, 100 amp breaker operates at 600 volts AC with a frame 2 design and a 100kA interrupt rating at 480 volts. It features thermal magnetic trip units with long-time and instantaneous protection, suitable for standard line and load connections with feed-thru terminals. Certified to UL, CSA, IEC, and CCC standards, it ensures global compliance and safety.

• Amperage: 100 A
• Voltage: 600 VAC
• Poles: 3
• Frame: 2
• Interrupt Rating: 100 kA at 480 VAC
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Connection Type: Feed-Thru
• Certifications: UL, CSA, IEC, CCC
• Dimensions: 3.5 in H x 6 in W x 4.11 in D
• Weight: 4.01 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG23P0100TFFJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786679269411
• Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
• Weight : 4.0586
• Certification : CCC Marked IEC 60947-2 UL 489 CSA
