Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG23M0225E3RJ

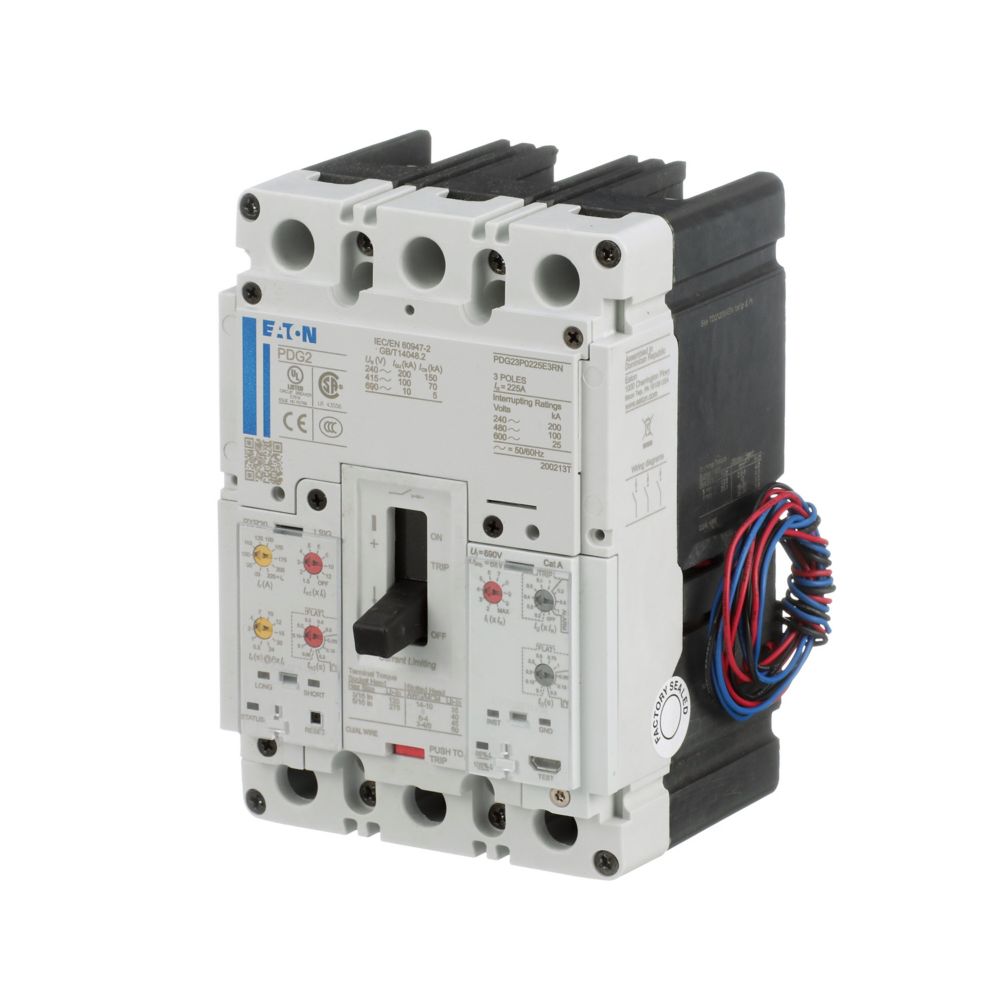

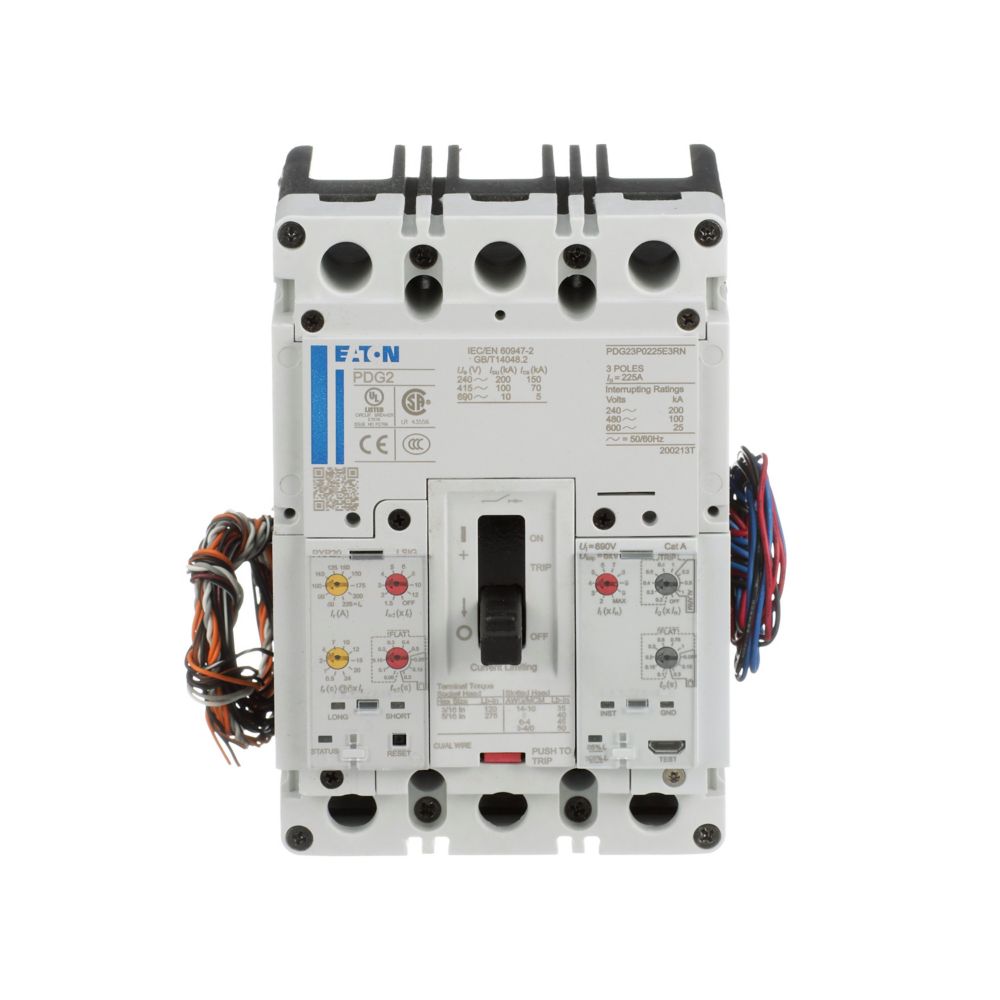

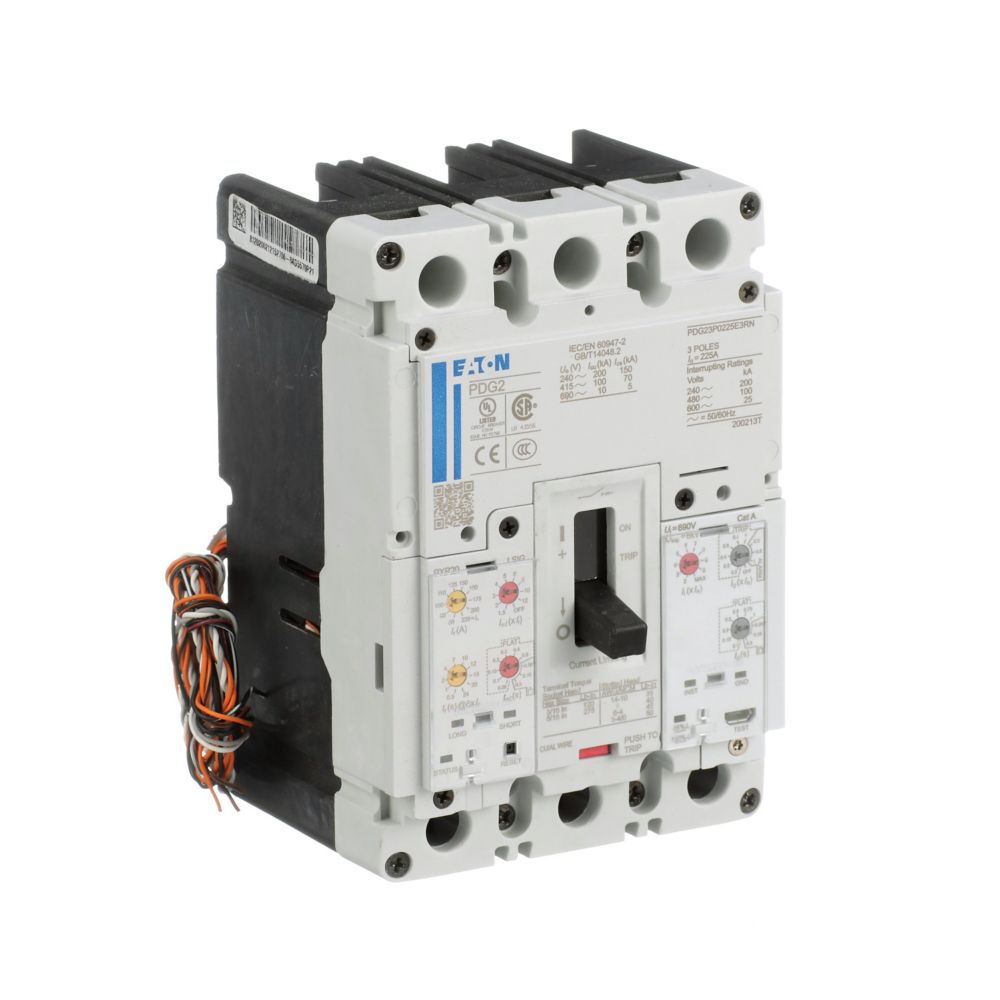

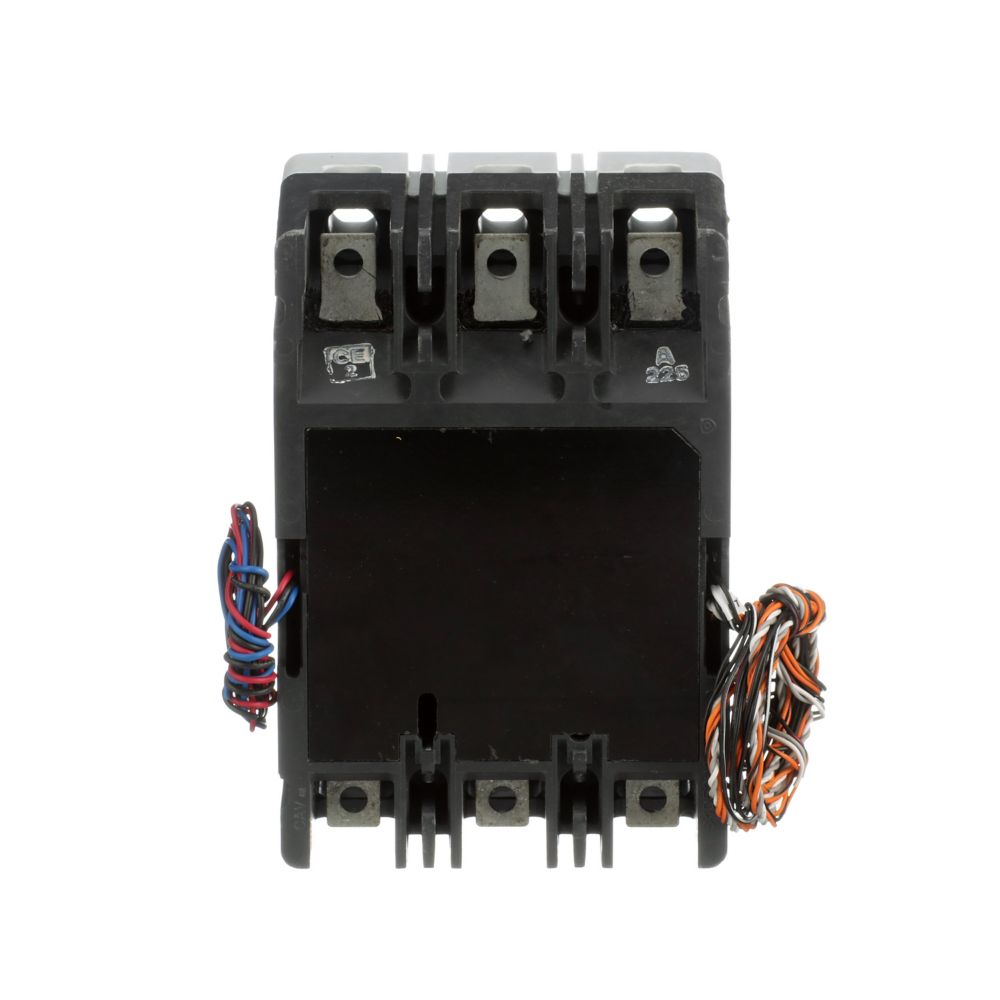

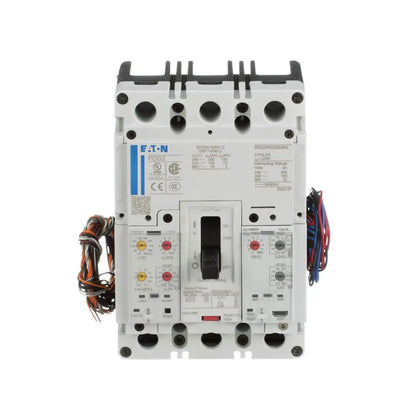

PDG23M0225E3RJ is a Eaton Power Defense molded case circuit breaker designed for reliable power distribution protection.This circuit breaker features a 225 Amp rating, 600 VAC voltage, and three poles with a Frame 2 size. It includes a PXR20 LSIG trip unit with relays, offering advanced protection with a 65 kA interrupt rating at 480V. The breaker is globally rated and supports standard line and load connections.
- Key Specifications
- Amperage: 225 A
- Voltage Rating: 600 VAC
- Poles: Three Pole
- Frame: Frame 2
- Interrupt Rating: 65 kA at 480 V
- Trip Unit: PXR20 LSIG with Relays
- Mounting Type: Standard Line and Load
- Series: Power Defense (PDG2)
- Certifications: Globally Rated
- Part Number: PDG23M0225E3RJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 225
- Phase : 3
- AIC rating : 65kA@480V
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- Control Voltate Maximum : 130
- UPC : 786679309421
- GTIN : 00786679309421
- Country of Origin : Dominican Republic
- Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
- Weight : 4.0586
- Certification : CCC Marked IEC 60947-2 UL 489 CSA
