PDG23M0225B2NL - Eaton 225A 600VAC 3 Pole Molded Case Circuit Breaker Frame 2 PXR10 LSI Trip

PDG23M0225B2NL

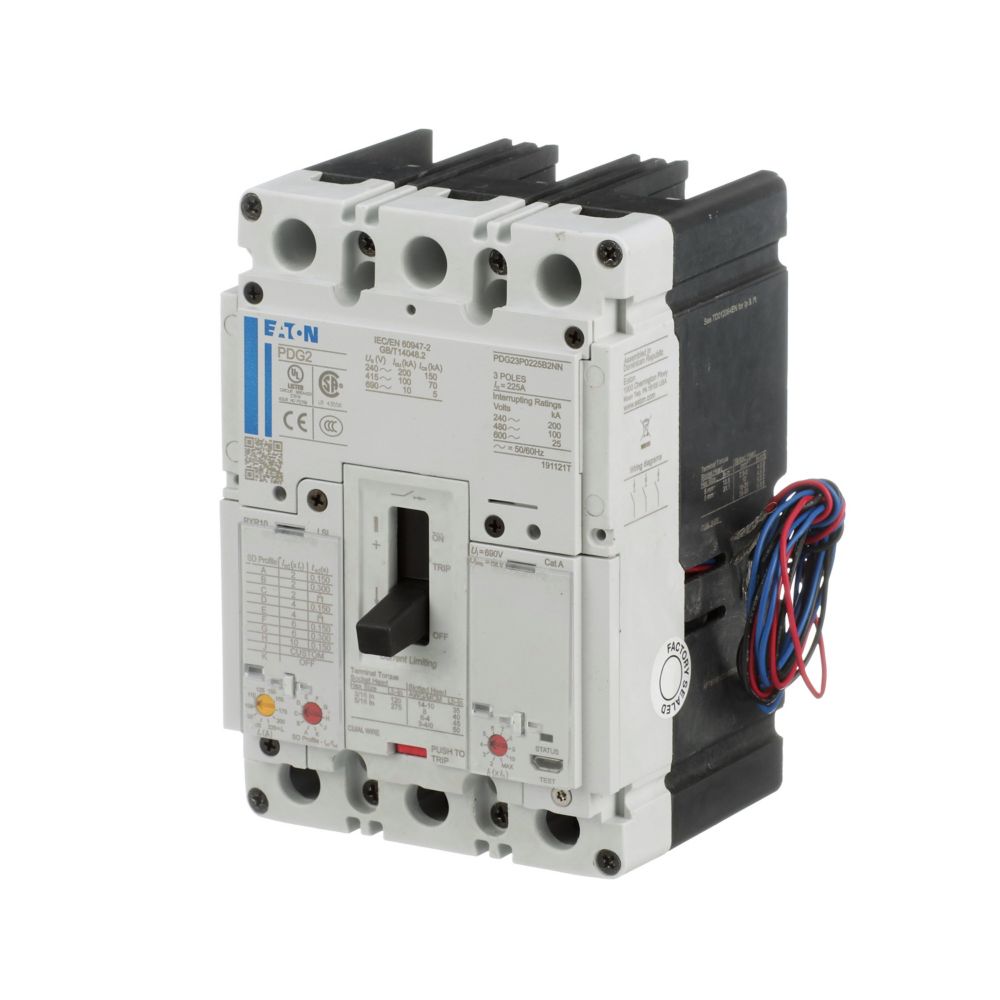

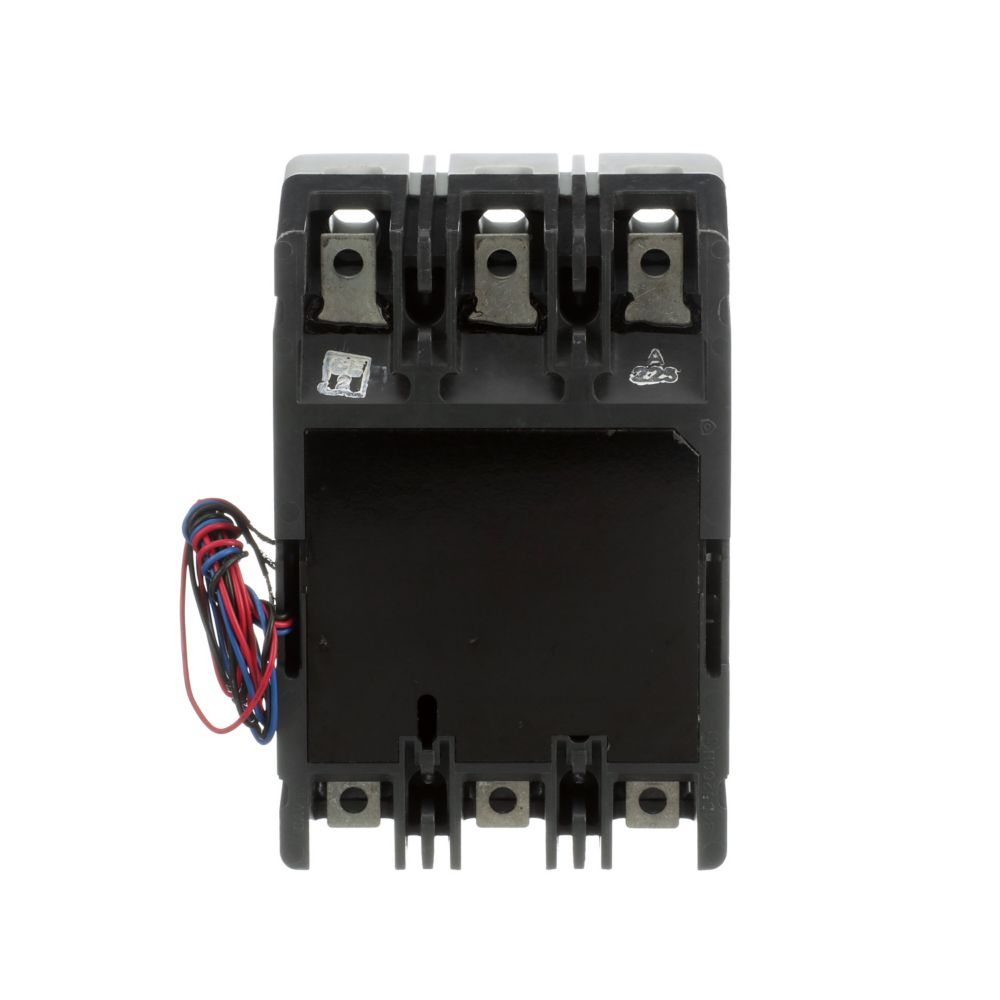

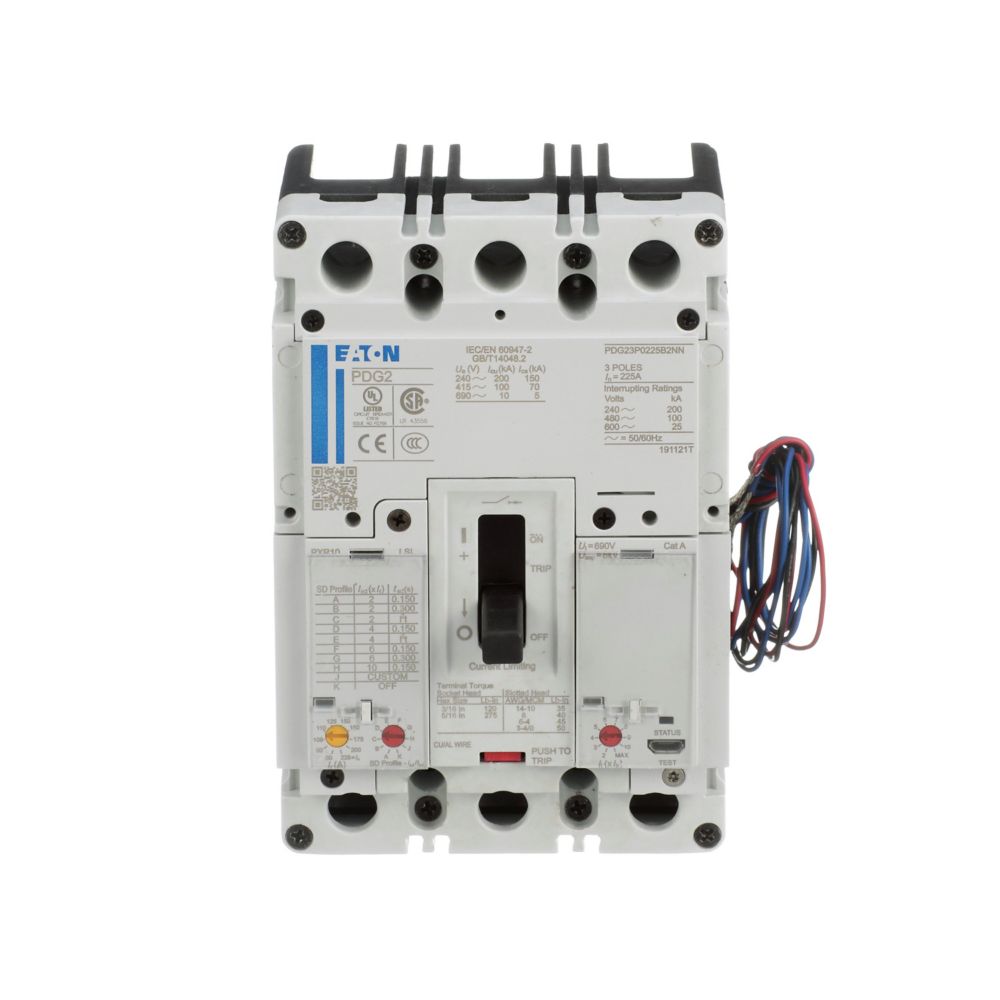

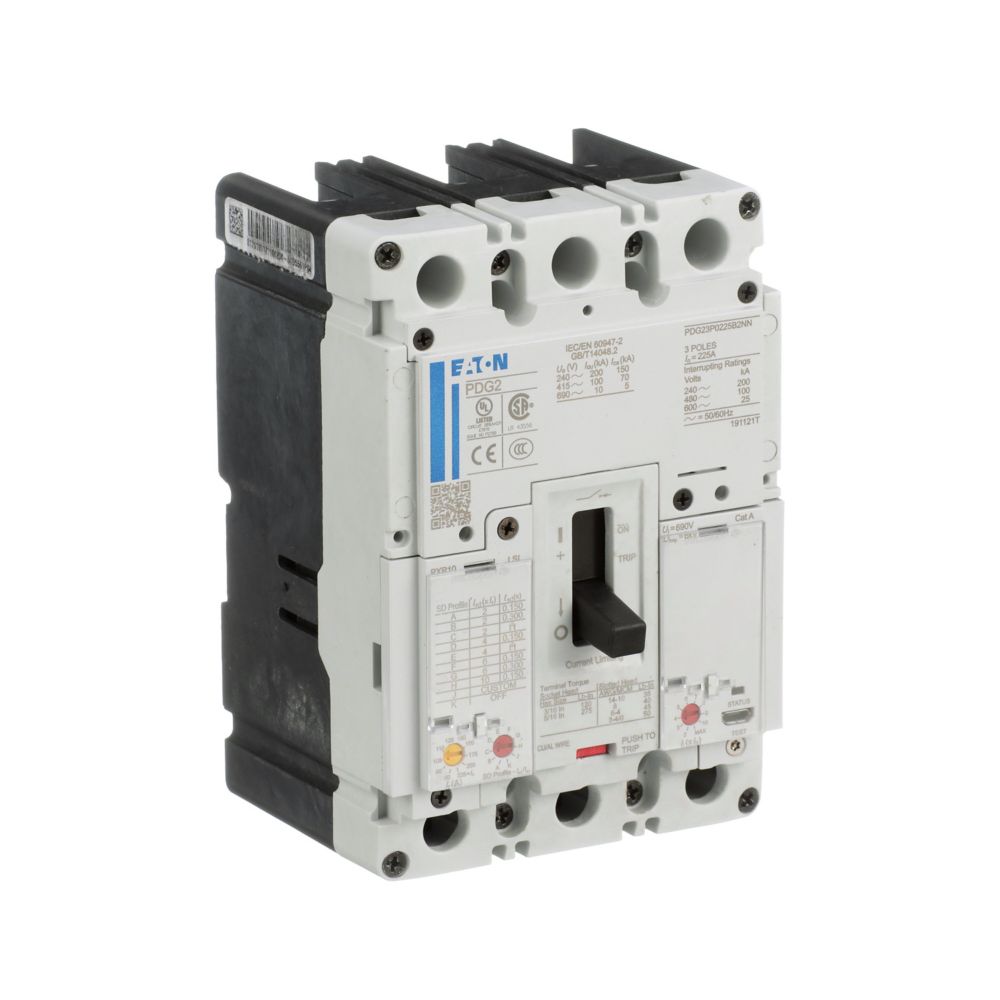

PDG23M0225B2NL is a 225 amp, 600 VAC, three-pole molded case circuit breaker from Eaton's Power Defense series.

This circuit breaker features a Frame 2 design with a 65 kA interrupt rating at 480 VAC and a PXR10 LSI electronic trip unit. It is globally rated and includes standard load-only terminals. Mounting options include fixed, plug-in, and DIN rail. The breaker complies with IEC 60947-2 and RoHS standards, ensuring reliable and safe operation in industrial and commercial electrical systems.

Key Specifications
• Amperage: 225 A
• Voltage Rating: 600 VAC max
• Number of Poles: Three-pole
• Interrupt Rating: 65 kA at 480 VAC
• Frame: 2 (Power Defense Global)
• Trip Unit: PXR10 LSI electronic trip
• Mounting Type: Fixed, Plug-In, DIN Rail
• Terminals: Standard Terminals Load Only
• Certifications: IEC 60947-2, RoHS Compliant
• Switch Off Technique: Electronic
• Product Weight: 1.82 kg

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG23M0225B2NL
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679982082
• GTIN : 786679845035
• Country of Origin : Dominican Republic
• Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
• Weight : 4.0586 lb
• Certification : IEC 60947-2 UL 489 CCC Marked CSA
