2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG23M0225E3MJ

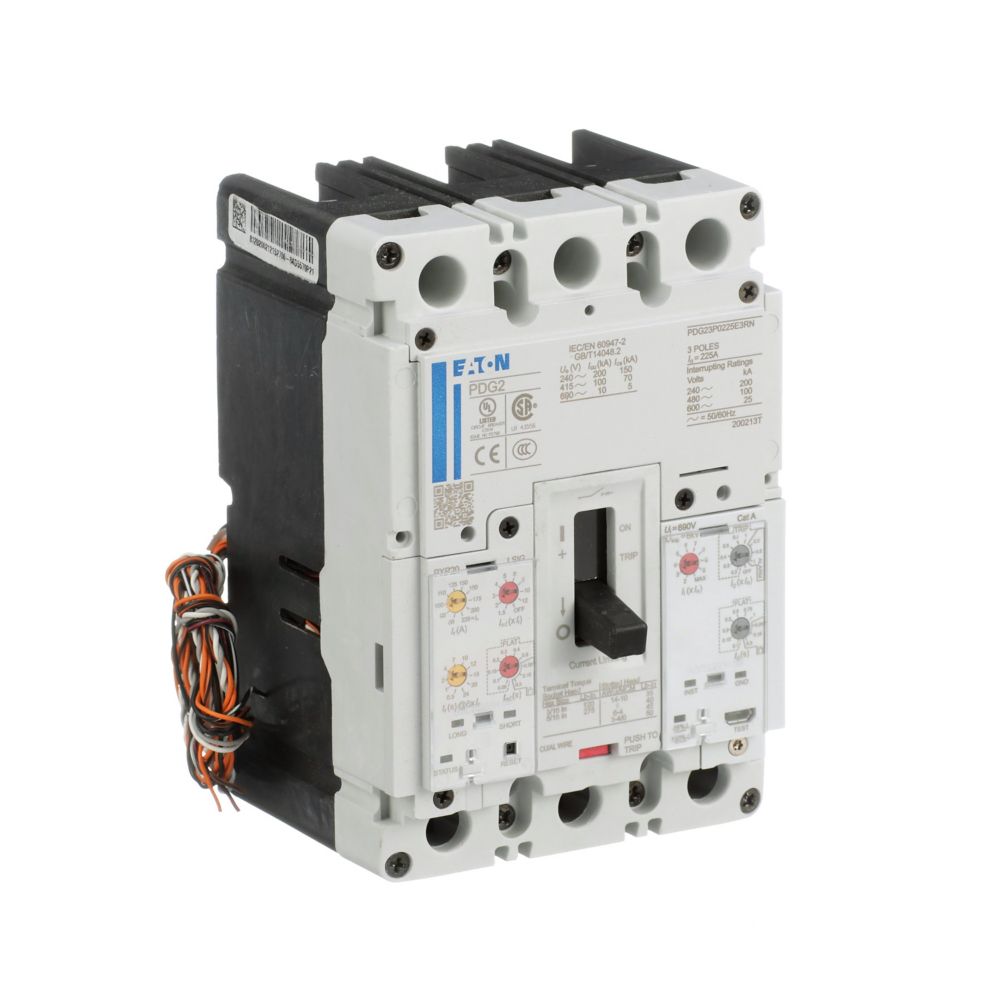

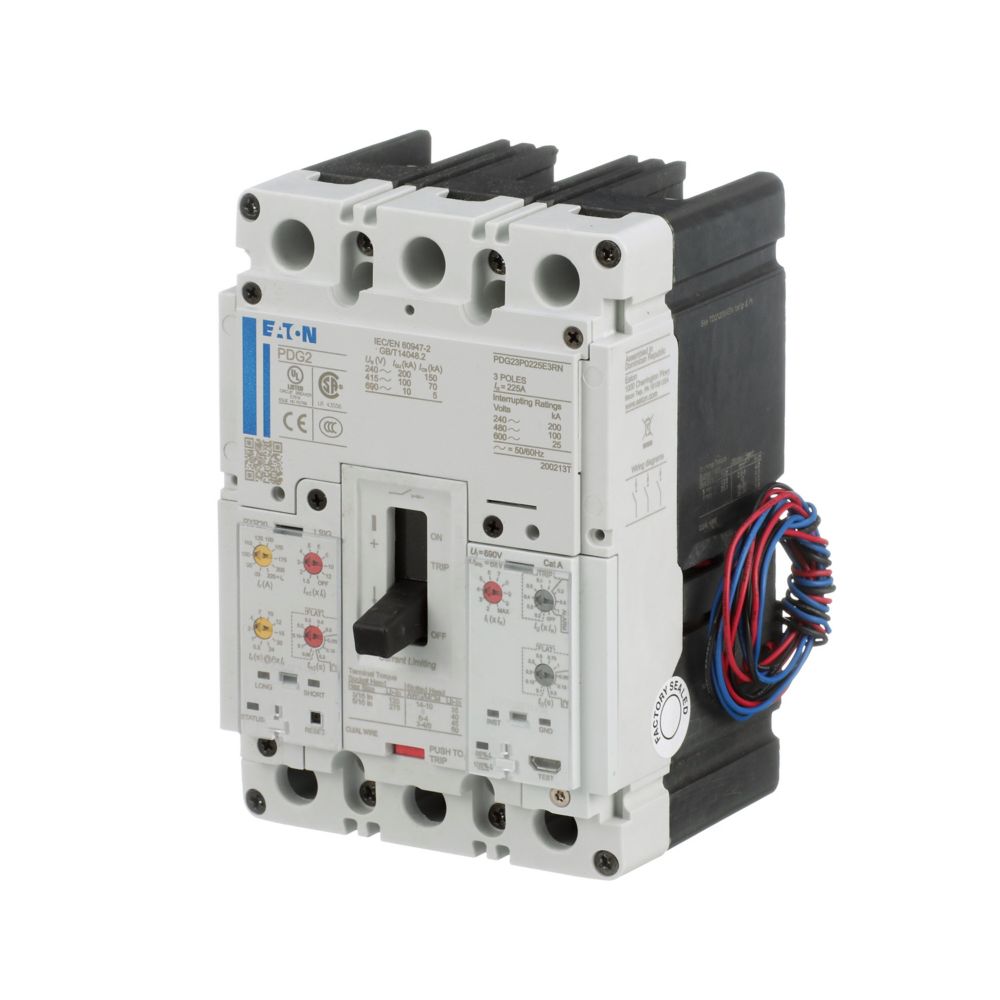

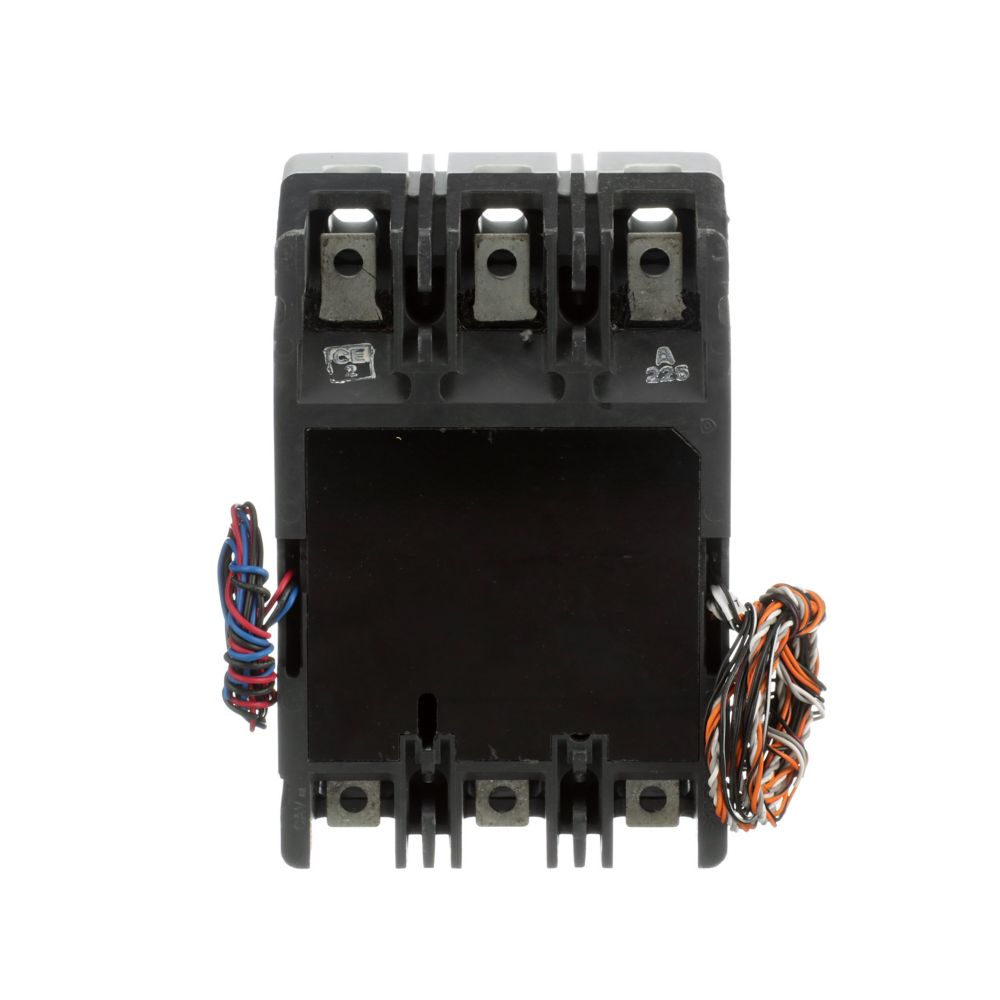

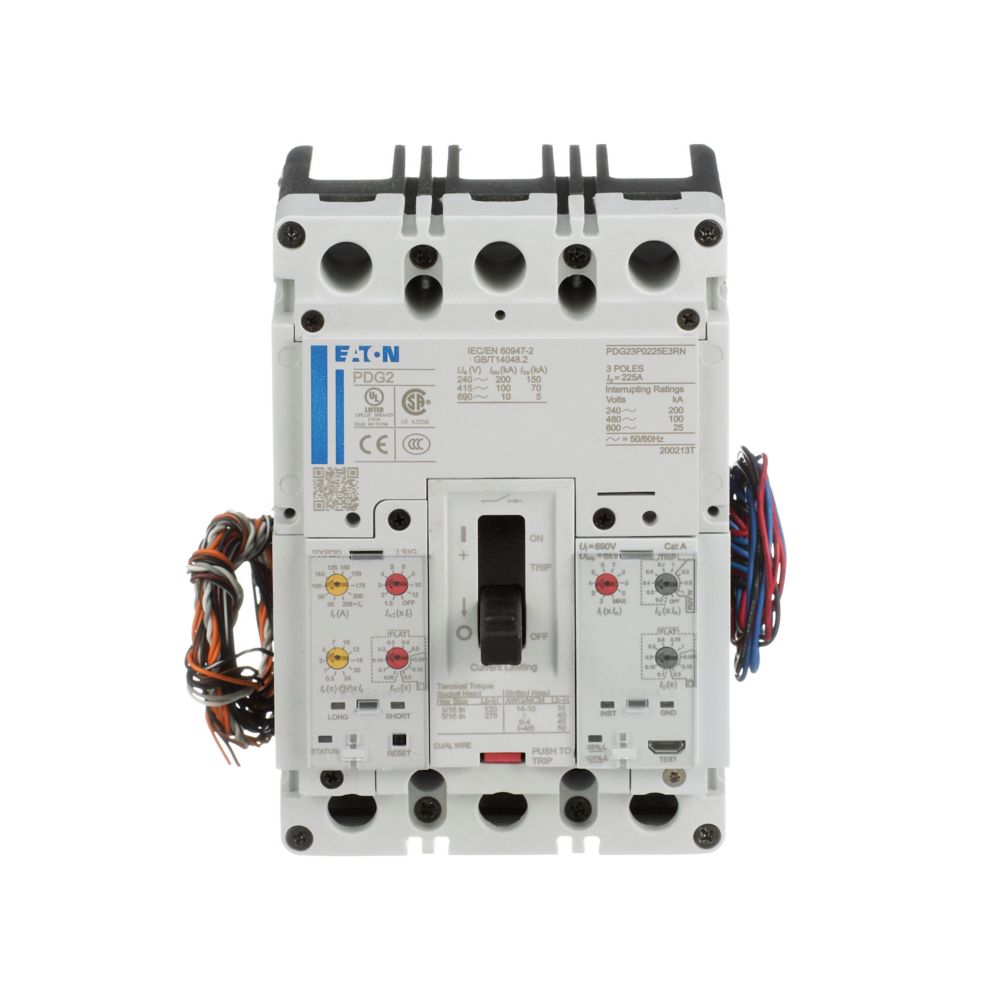

PDG23M0225E3MJ is a 225 Amp, 600 Volt, 3 Pole Molded Case Circuit Breaker from Eaton's Power Defense series, designed for reliable circuit protection in industrial and commercial applications.This Eaton PDG23M0225E3MJ breaker features a Frame 2 design with a 65kA interrupt rating at 480V AC, providing high fault current interruption capability. It includes a T285 trip unit type with LSIG (Long-time, Short-time, Instantaneous, Ground-fault) protection functions. The breaker is globally rated for versatile mounting and use, ensuring compliance with multiple certifications and standards.
- Key Specifications
- Amperage: 225 A
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Frame Type: 2 (Power Defense series)
- Interrupt Rating: 65 kA at 480 V
- Trip Unit Type: T285 LSIG
- Mounting Type: Molded Case Circuit Breaker
- Certifications: Globally Rated
- Manufacturer: Eaton - Cutler Hammer
- Part Number: PDG23M0225E3MJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault Trip
- Protection : Solid State
- UPC : 786679308684
- Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
- Weight : 4.0586
- Certification : UL 489 CCC Marked CSA IEC 60947-2
