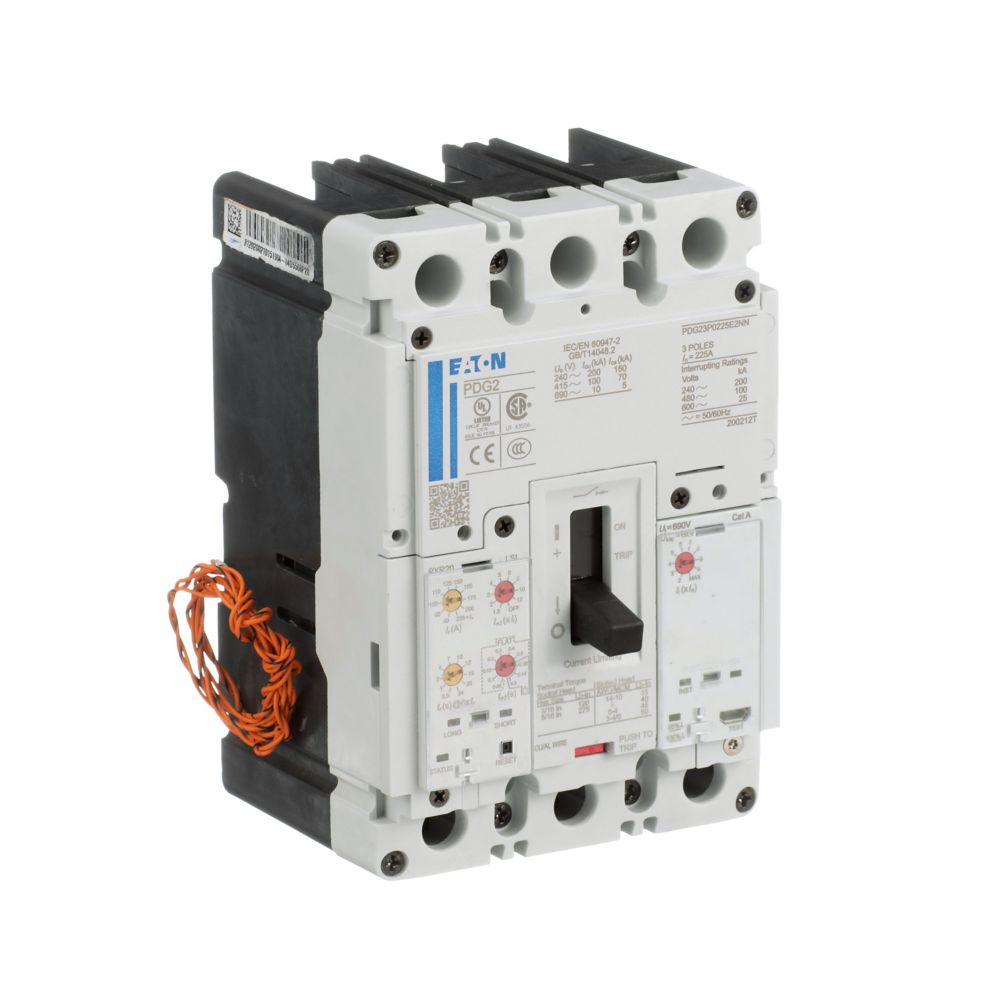

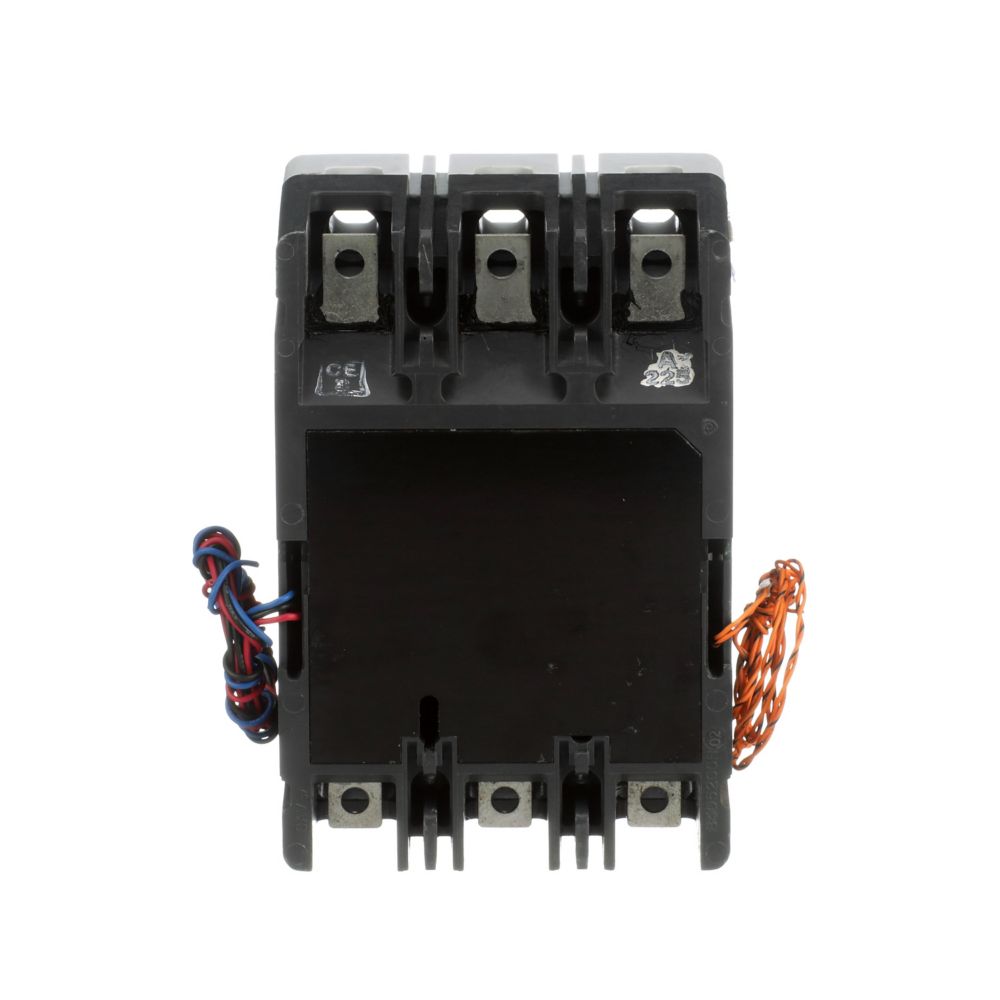

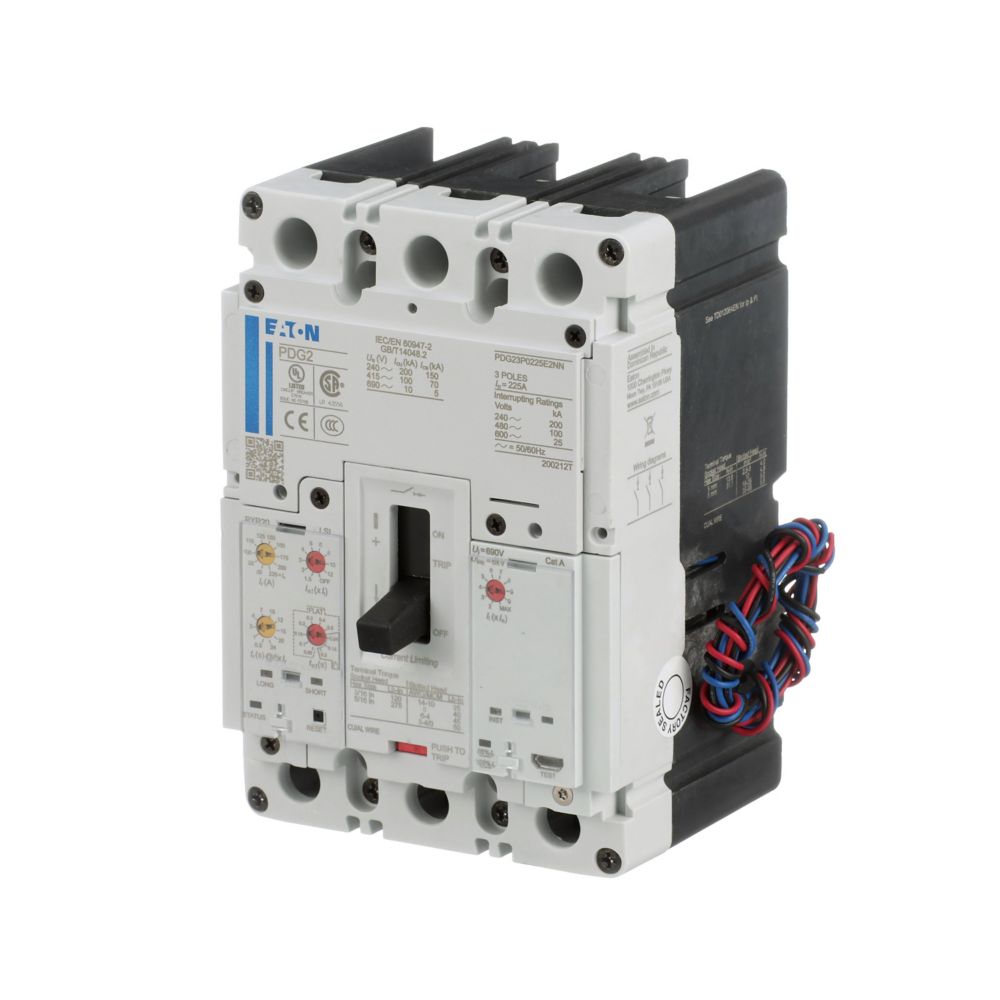

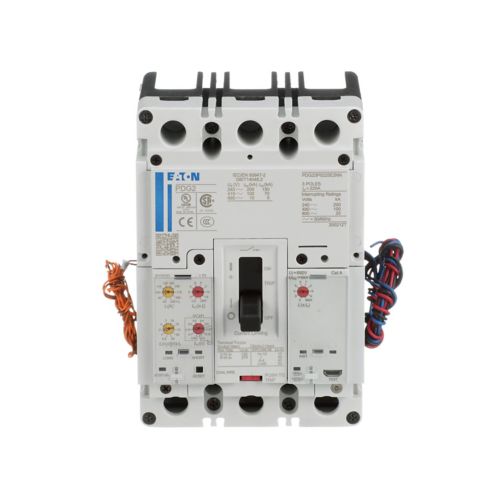

PDG23M0225E2MJ - Eaton 225A 600V 3 Pole Power Defense Molded Case Circuit Breaker, PXR 20 LSI Trip, Frame 2, 65kAIC, Modbus RTU

PDG23M0225E2MJ

PDG23M0225E2MJ is a 225A, 600V, 3-pole, Power Defense molded case circuit breaker from Eaton, designed for robust electrical protection in demanding applications.

This solid-state circuit breaker features a PXR 20 LSI electronic trip unit, Modbus RTU communication, and a Frame 2 design. It is engineered for global applications with high interrupting capacity and advanced monitoring capabilities.

Key Specifications
• Amperage: 225A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Panel or Switchboard (Molded Case)
• Interrupt Rating: 65kAIC at 480VAC (UL), 70kAIC Icu at 380-415V (IEC)
• Series/Frame: Power Defense, Frame 2
• Trip Unit: PXR 20 LSI (Long, Short, Instantaneous)
• Certifications: UL, IEC
• Communication: Modbus RTU
• Switch Off Technique: Solid State
• Rated Operational Voltage (Ue): 600VAC max
• DC Interrupt Rating: 22kAIC at 125VDC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG23M0225E2MJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 225
• Phase : 3
• AIC rating : 65kA@480V
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679229651
• Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
• Weight : 4.0586
• Certification : IEC 60947-2 UL 489 CCC Marked CSA
