PDG23G0225E3MJ - Cutler Hammer | Eaton Power Defense Molded Case Circuit Breaker, 225A, 600V, 3 Pole, Frame 2, 35kA Interrupt, PXR20 LSIG Trip Unit, Modbus RTU, Globally Rated

PDG23G0225E3MJ

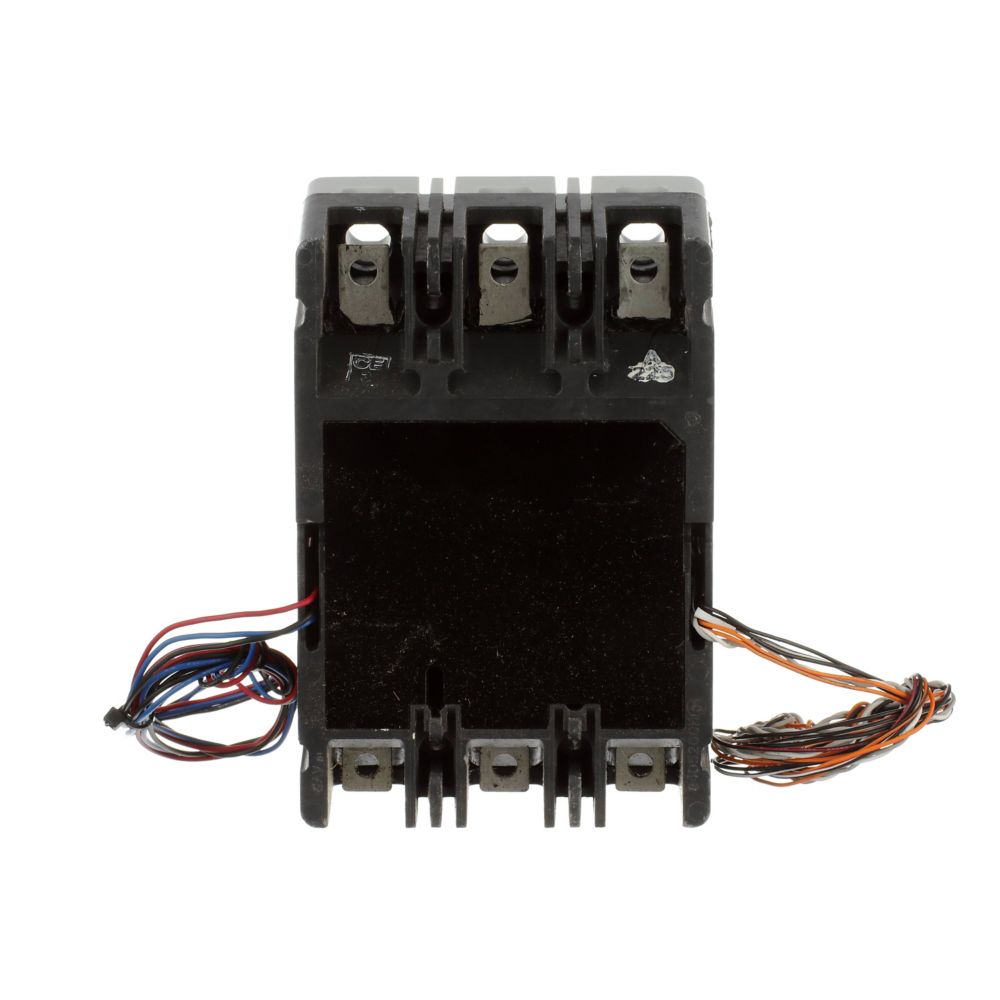

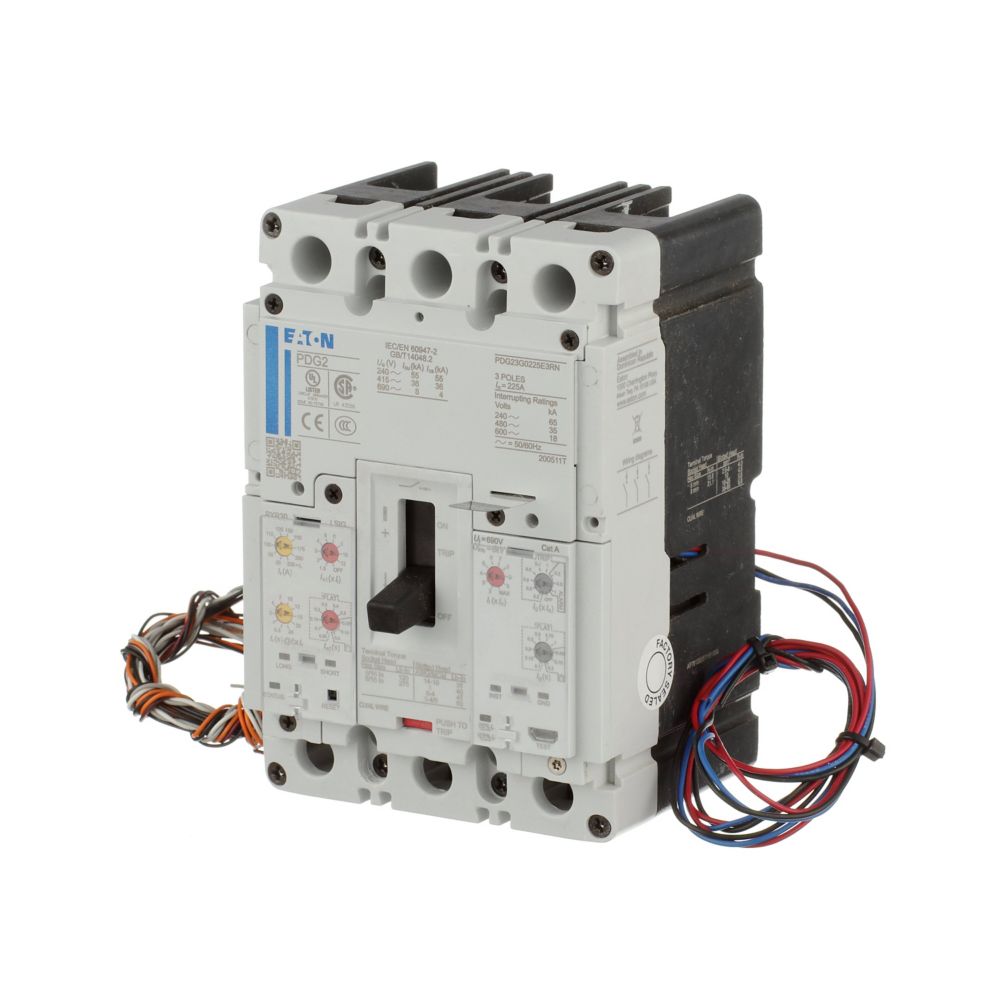

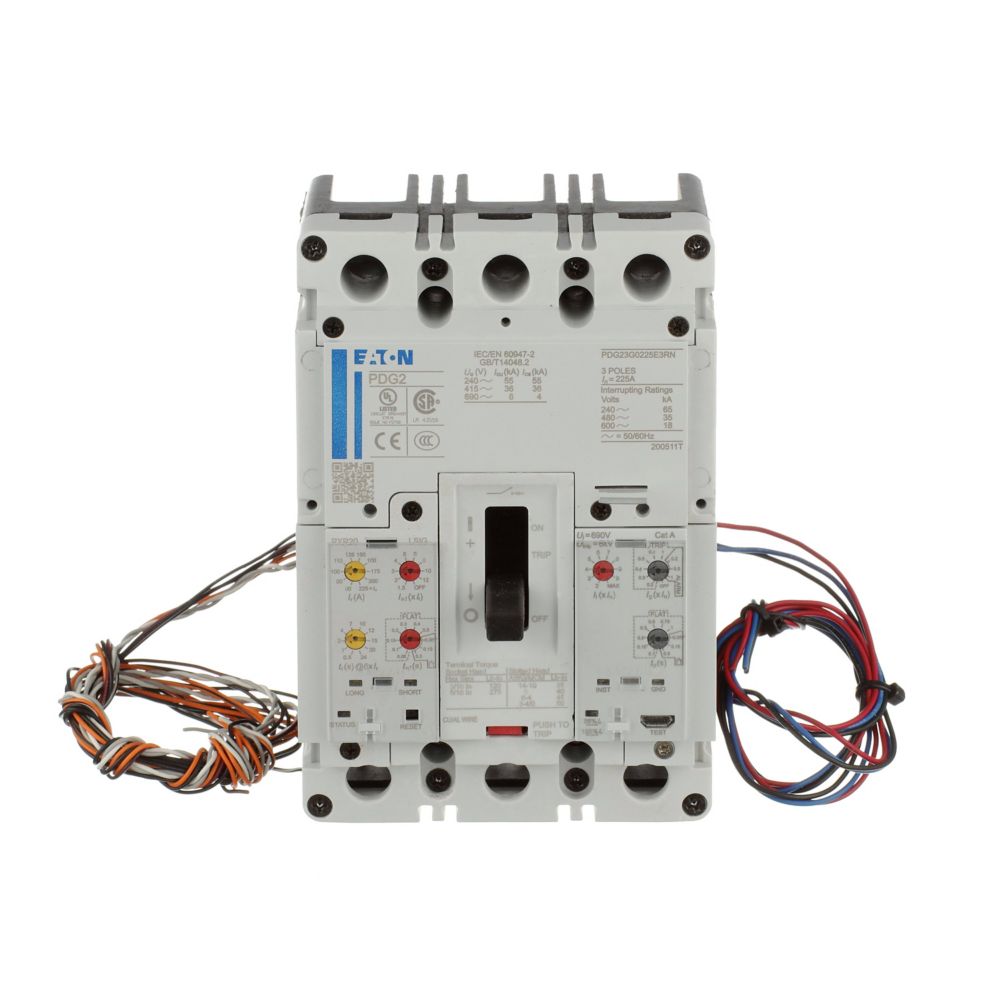

PDG23G0225E3MJ is a Cutler Hammer (Eaton) Power Defense molded case circuit breaker designed for reliable protection in demanding electrical applications.

This three-pole breaker features a 225A current rating, 600V voltage rating, and a 35kA interrupt rating at 480V. It is part of the PDG Series, Frame 2, and includes the advanced PXR20 LSIG electronic trip unit with Modbus RTU communication and relay outputs. The unit is globally rated for international compliance and is suitable for standard line mounting.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Part Number: PDG23G0225E3MJ
• Amperage: 225A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Standard line
• Interrupt Rating: 35kA at 480V
• Series/Frame: PDG Series, Frame 2
• Trip Unit: PXR20 LSIG (Long, Short, Instantaneous, Ground Fault)
• Communication: Modbus RTU, Relay Outputs
• Certifications: Globally rated
• Application: Power distribution, industrial, and commercial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG23G0225E3MJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• UPC : 786679282885
• Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
• Weight : 4.0586
