Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG23G0225B2NL

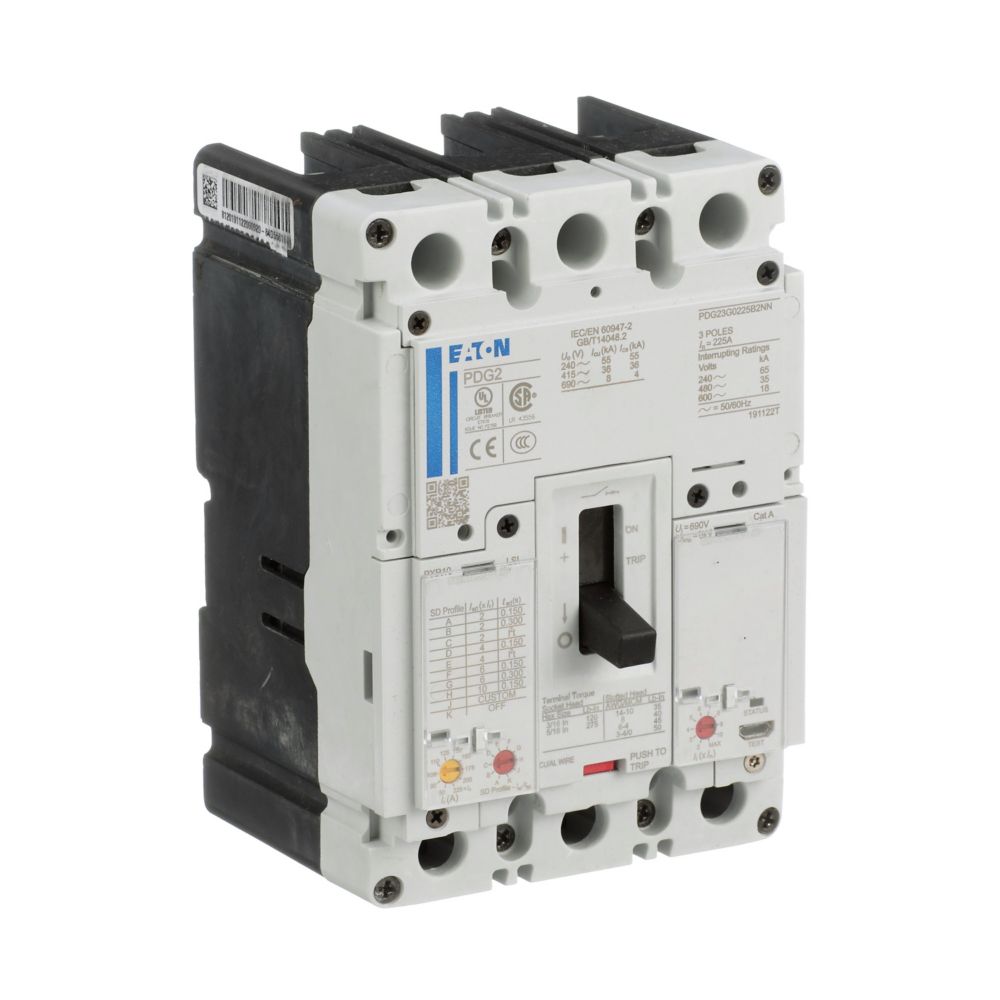

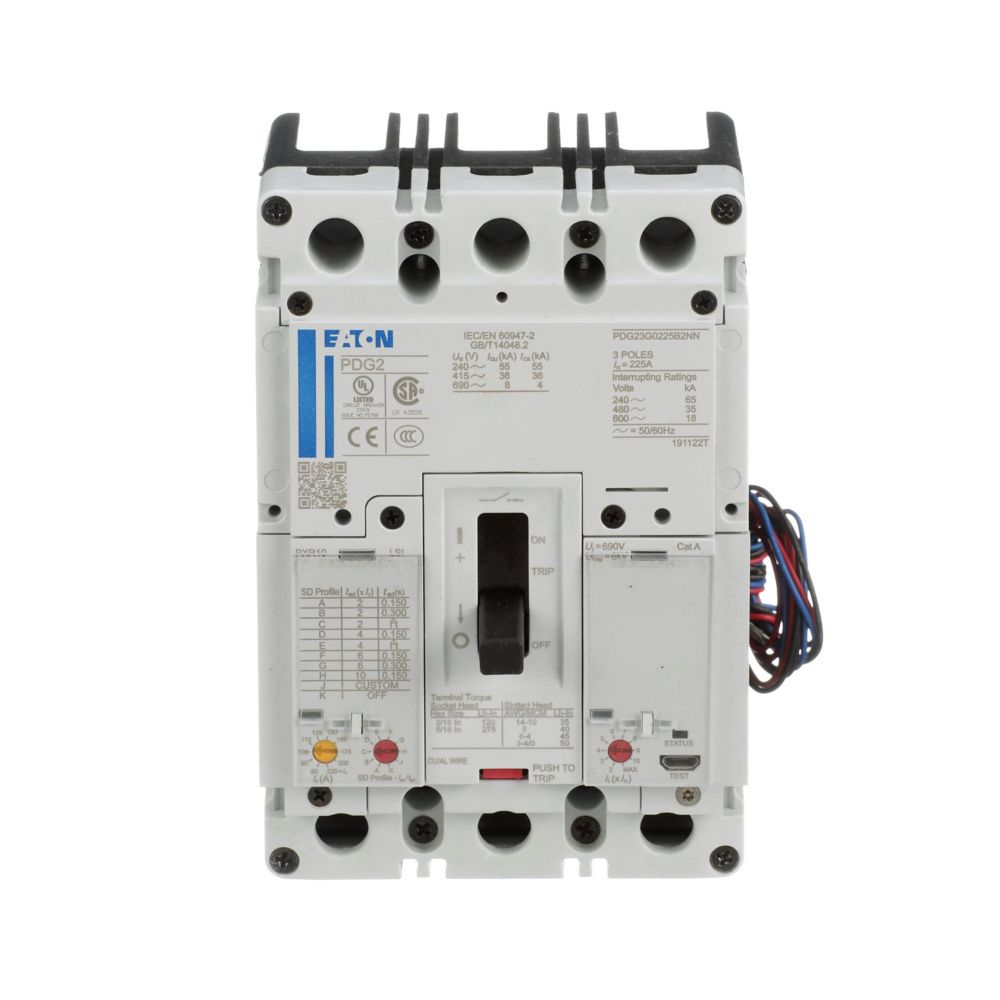

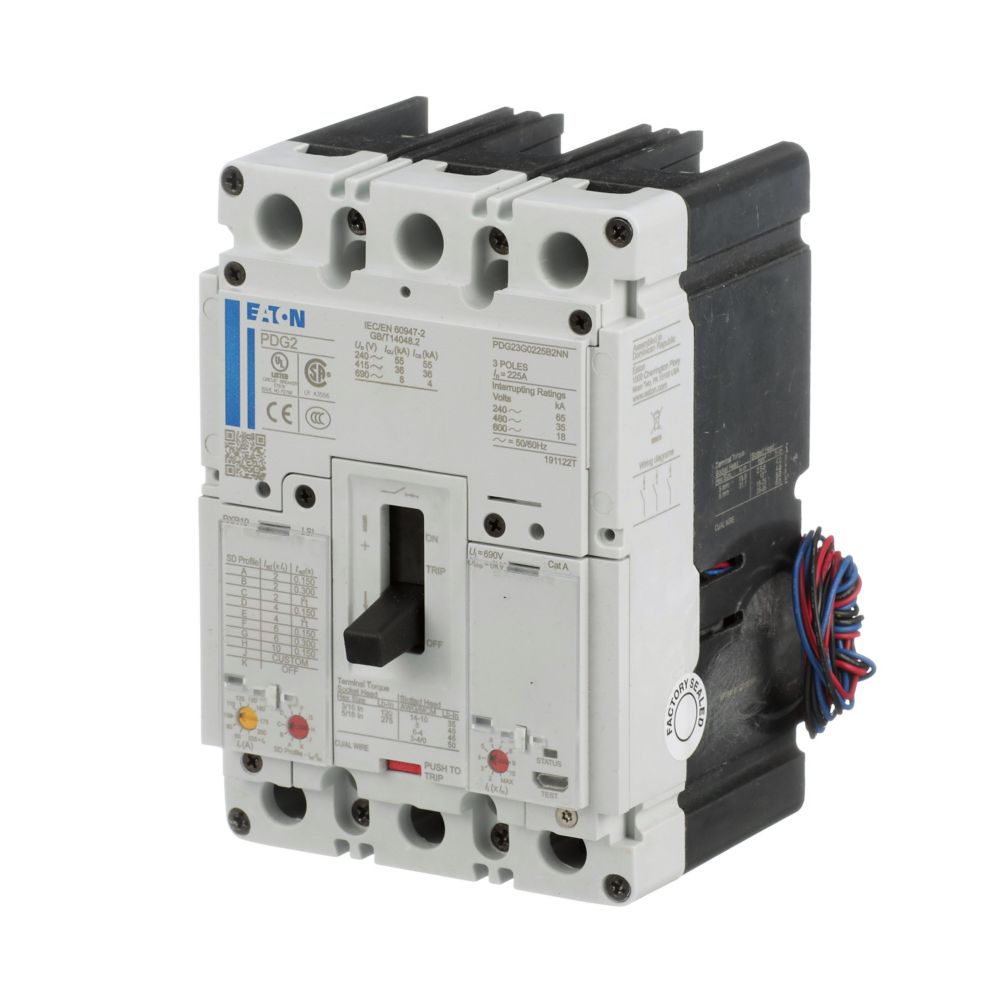

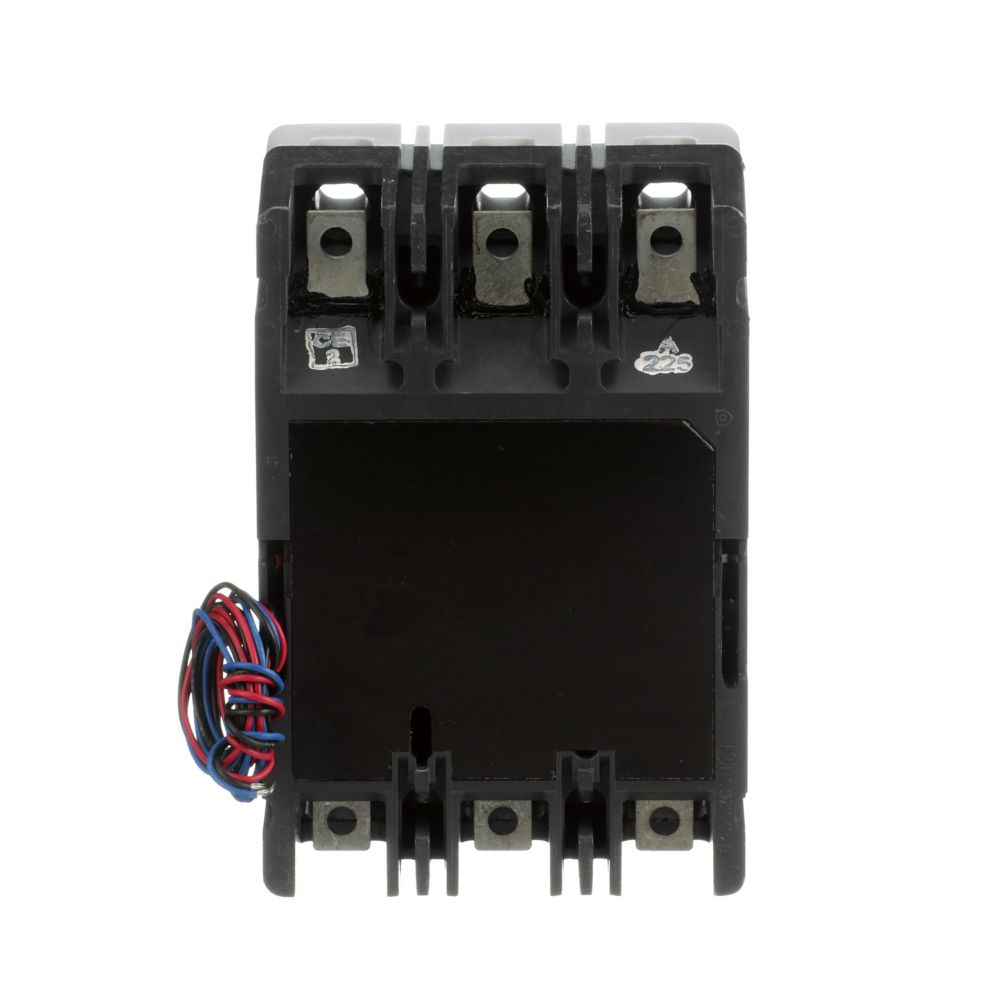

PDG23G0225B2NL is a three-pole, 225 amp, 600 volt molded case circuit breaker from Eaton's Power Defense series, designed for reliable protection in commercial and industrial applications. This breaker features a frame size 2, bolt-on mounting, and an interrupt rating of 35kA at 480VAC, making it suitable for a wide range of power distribution needs. The unit is equipped with a PXR10 LSI trip unit for precise protection and is globally rated for use in various electrical environments. Key Specifications
- Part Number: PDG23G0225B2NL
- Manufacturer: Eaton - Cutler Hammer
- Series: Power Defense
- Frame: 2
- Amperage: 225A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 35kA @ 480VAC
- Rated Operation Voltage: 600VAC max
- Global Certification: Yes
- Trip Unit: PXR10 LSI TU
Specifications
- Part Number: PDG23G0225B2NL
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Protection : Solid State
Product Data
- UPC : 78667984503
- GTIN : 00786679845035
- Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
- Weight : 13.38
