Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG23G0150E3MJ

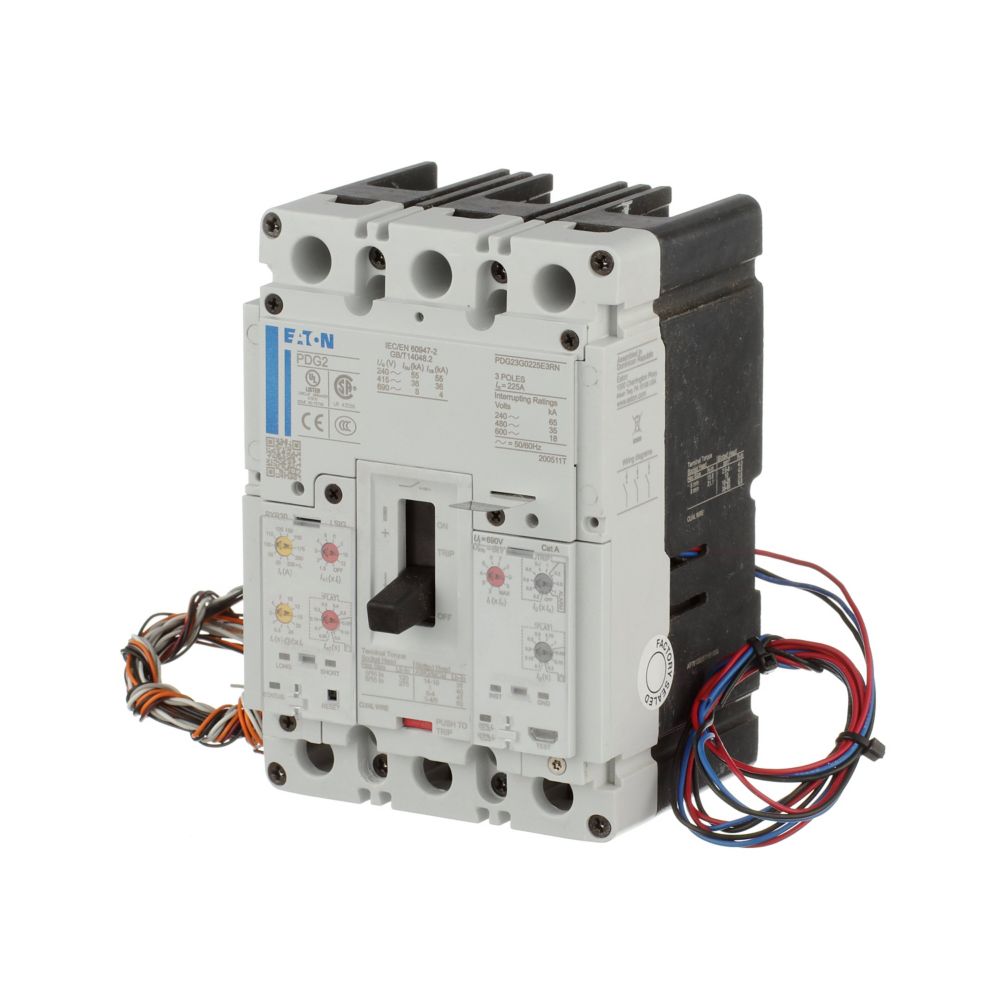

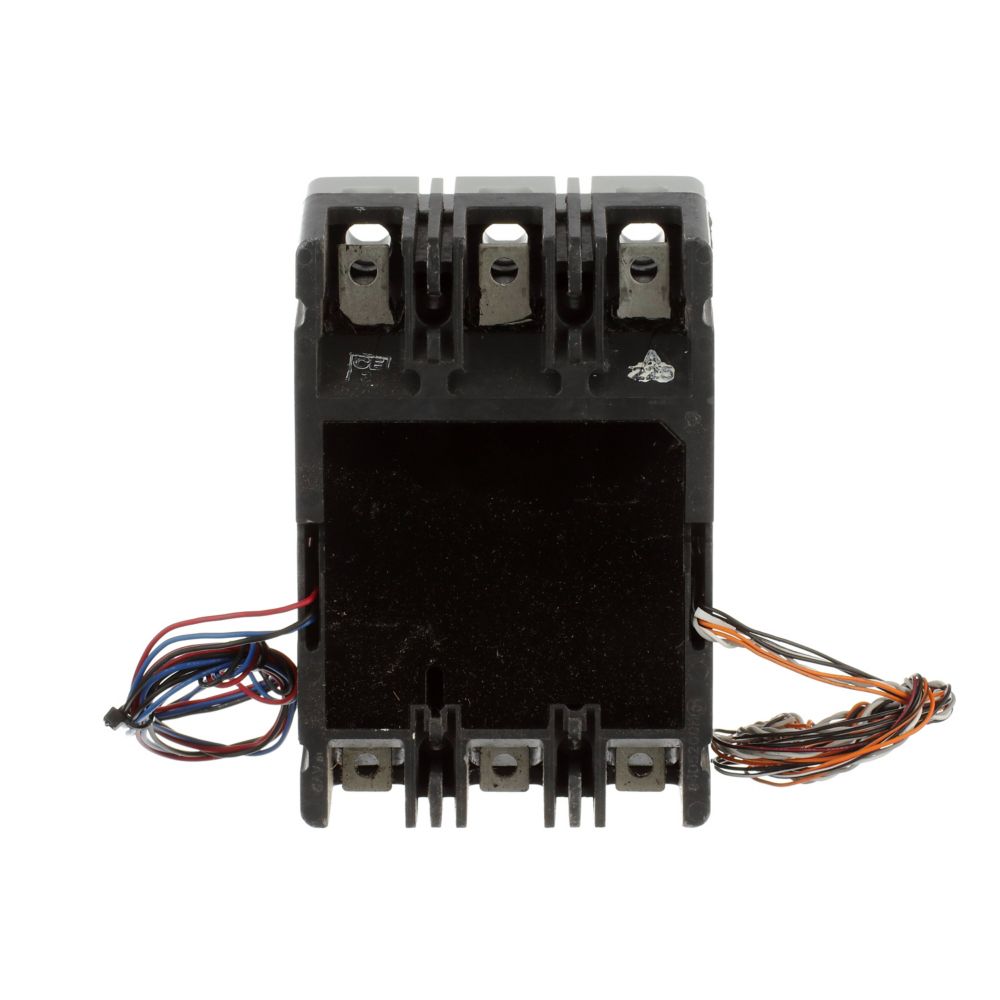

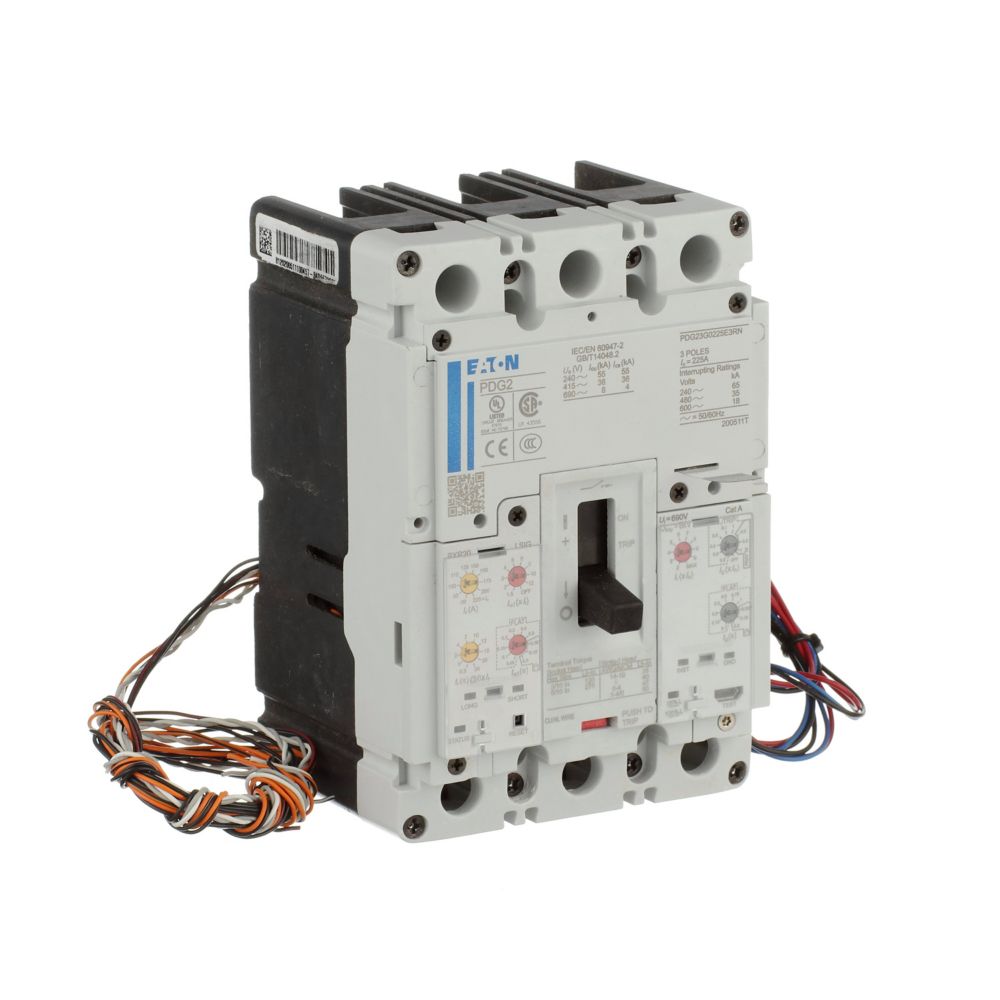

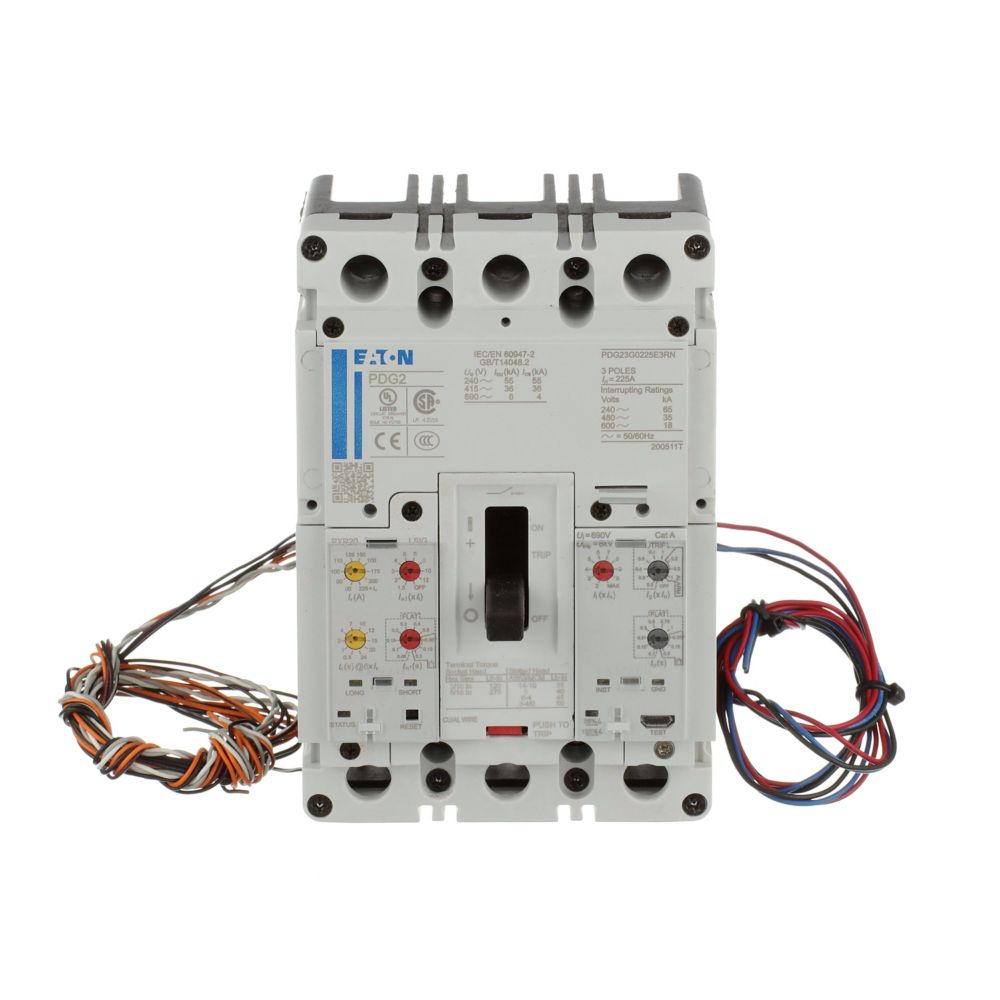

PDG23G0150E3MJ is a 3 pole molded case circuit breaker from Eaton Cutler Hammer with a 150 amp rating and 600 VAC voltage capacity.This Eaton Power Defense series breaker features an electronic LSIG trip unit, 65kA interrupt rating at 480V, and panel mounting type. It is UL 489 listed and carries CE and CSA certifications, making it suitable for global applications.
- Key Specifications
- Manufacturer: Eaton Cutler Hammer
- Part Number: PDG23G0150E3MJ
- Current Rating: 150 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Trip Unit: Electronic LSIG
- Interrupt Rating: 65kA at 480V
- Mounting Type: Panel Mount
- Series/Frame: PDG Power Defense, Frame 2
- Certifications: UL 489, CE, CSA
Specifications
- Part Number: PDG23G0150E3MJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault Trip
- Protection : Solid State
Product Data
- UPC : 786679298725
- Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
- Weight : 4.0586
