Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG23G0100B2NL

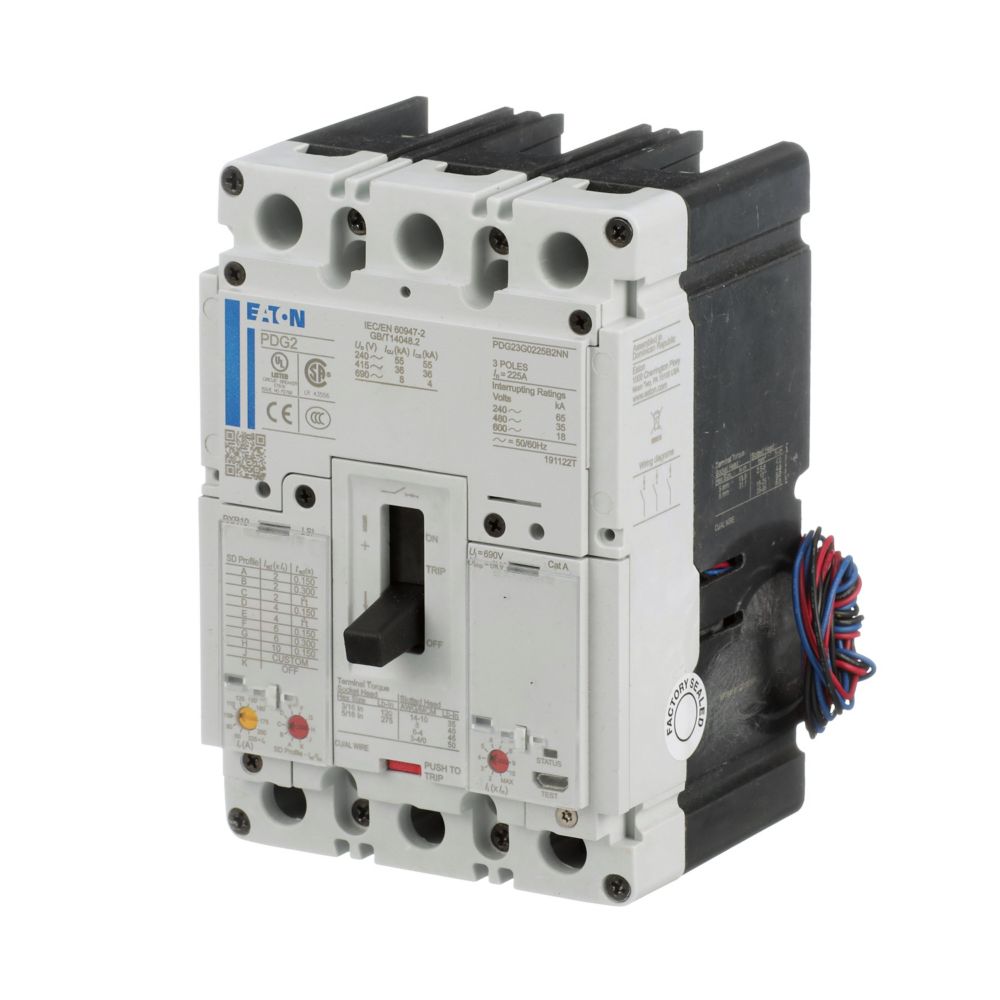

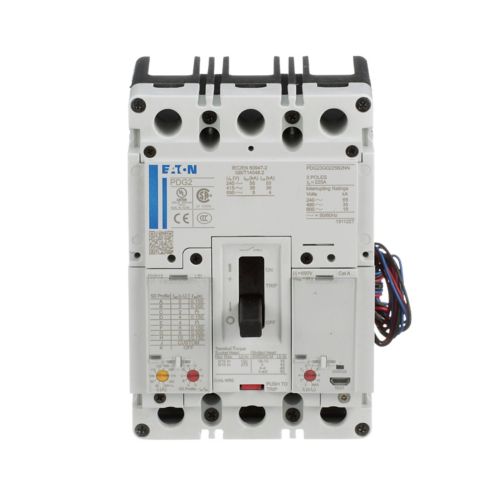

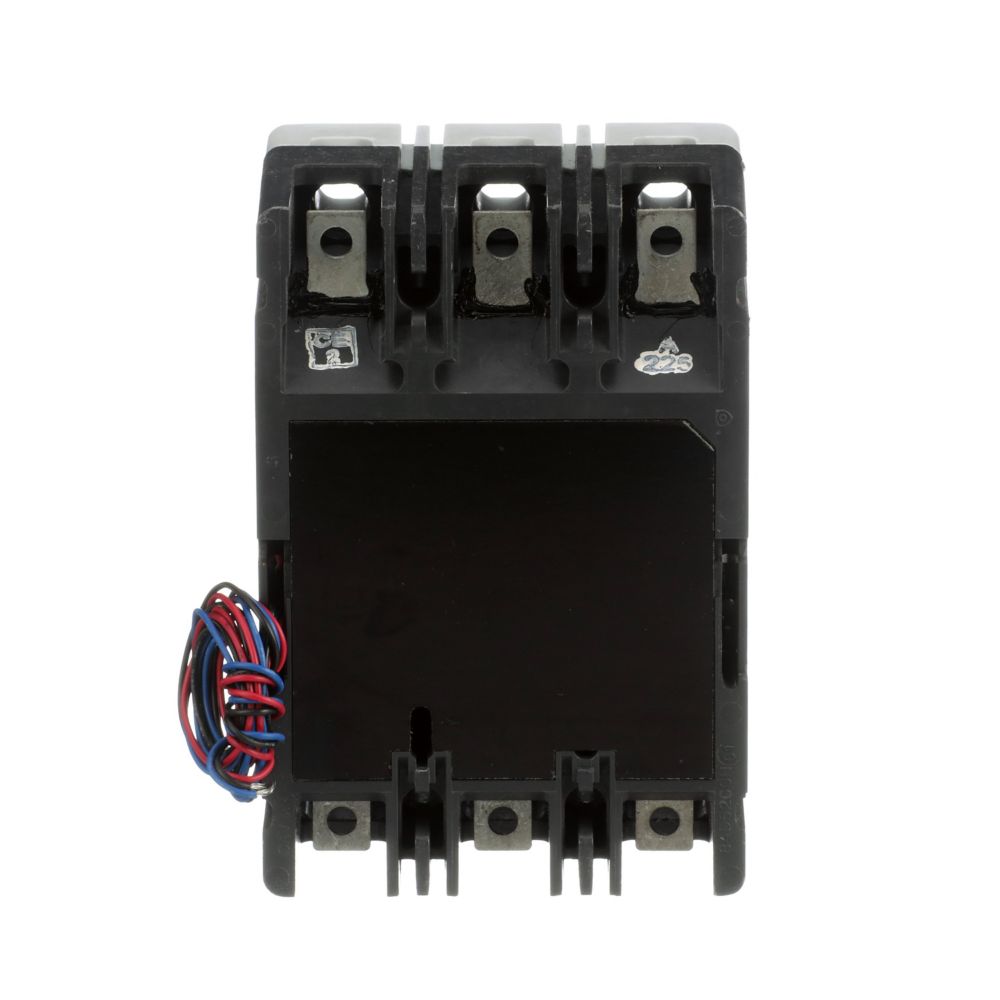

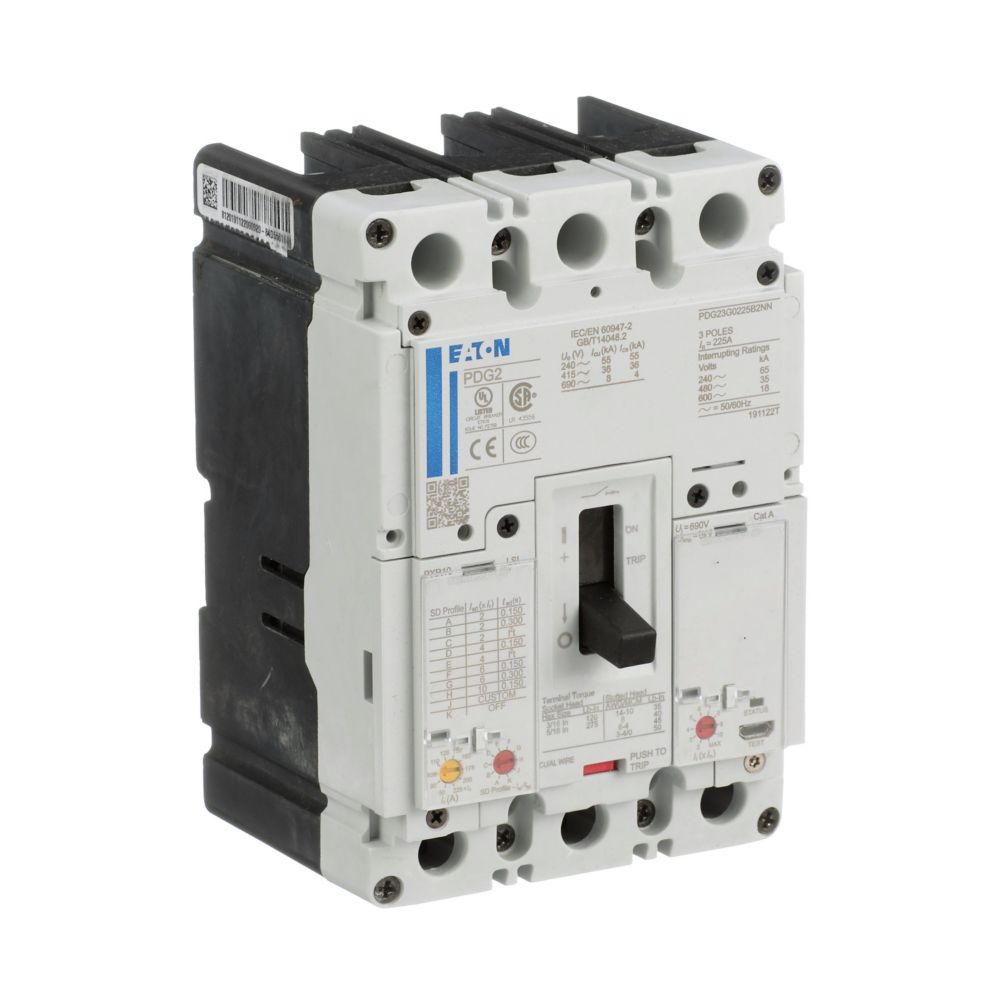

PDG23G0100B2NL is an Eaton Power Defense molded case circuit breaker designed for reliable electrical protection in industrial and commercial applications.This circuit breaker features a 100 ampere rating, 600 volt AC maximum voltage, and a three-pole configuration within a Frame 2 size. It includes a PXR10 LSI electronic trip unit for precise overload and short circuit protection. The breaker has a 35 kA interrupt rating at 480 volts AC and is equipped with standard load-only terminals. It is CSA certified and RoHS compliant, ensuring safety and environmental standards.
- Key Specifications
- Amperage Rating: 100 A
- Voltage Rating: 600 Vac max
- Number of Poles: Three-pole
- Frame Size: 2
- Interrupt Rating: 35 kAIC at 480 Vac
- Trip Unit: PXR10 LSI electronic trip
- Terminals: Standard load-only terminals
- Certifications: CSA certified, RoHS compliant
- Circuit Breaker Type: PD2 Global Power Defense
- Mounting Type: Molded case
- Part Number: PDG23G0100B2NL
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Protection : Solid State
- UPC : 786679778715
- Dimensions : 6.5 in x 6 in x 8 in (Length/Depth x Height x Width)
- Weight : 5
