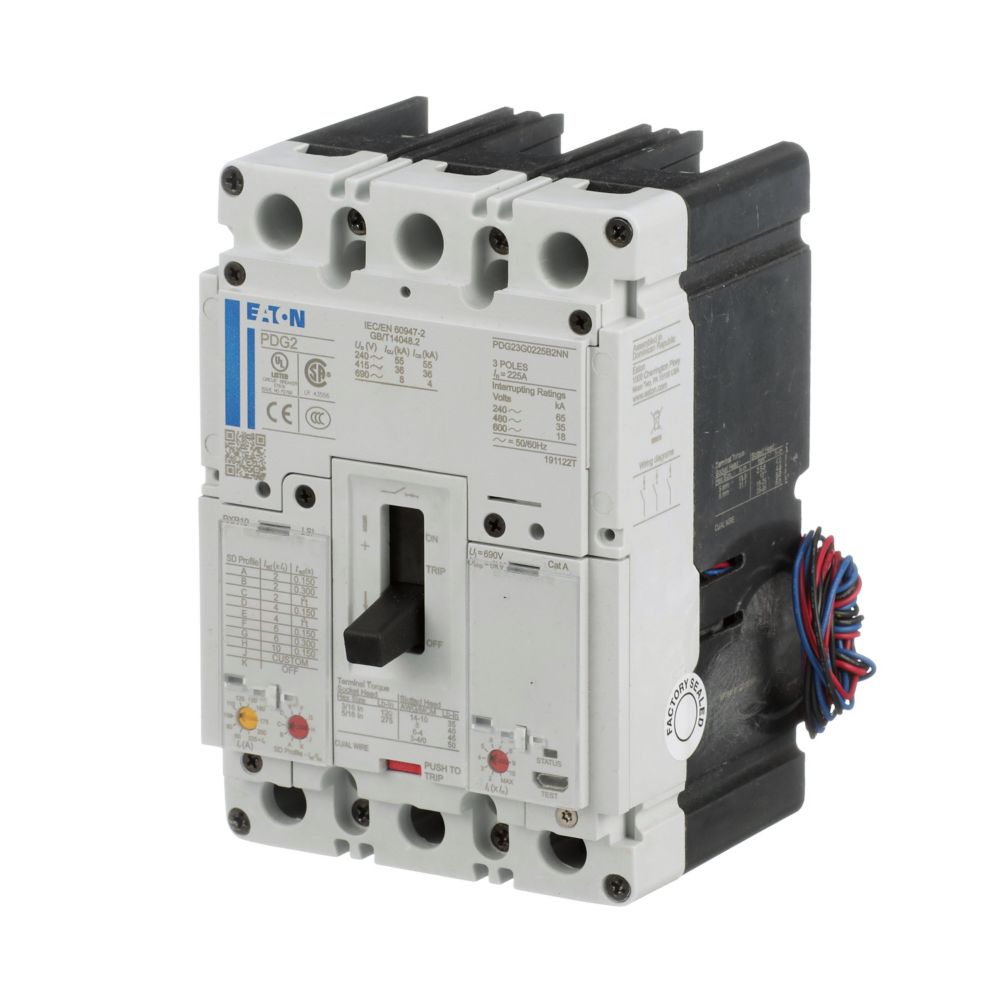

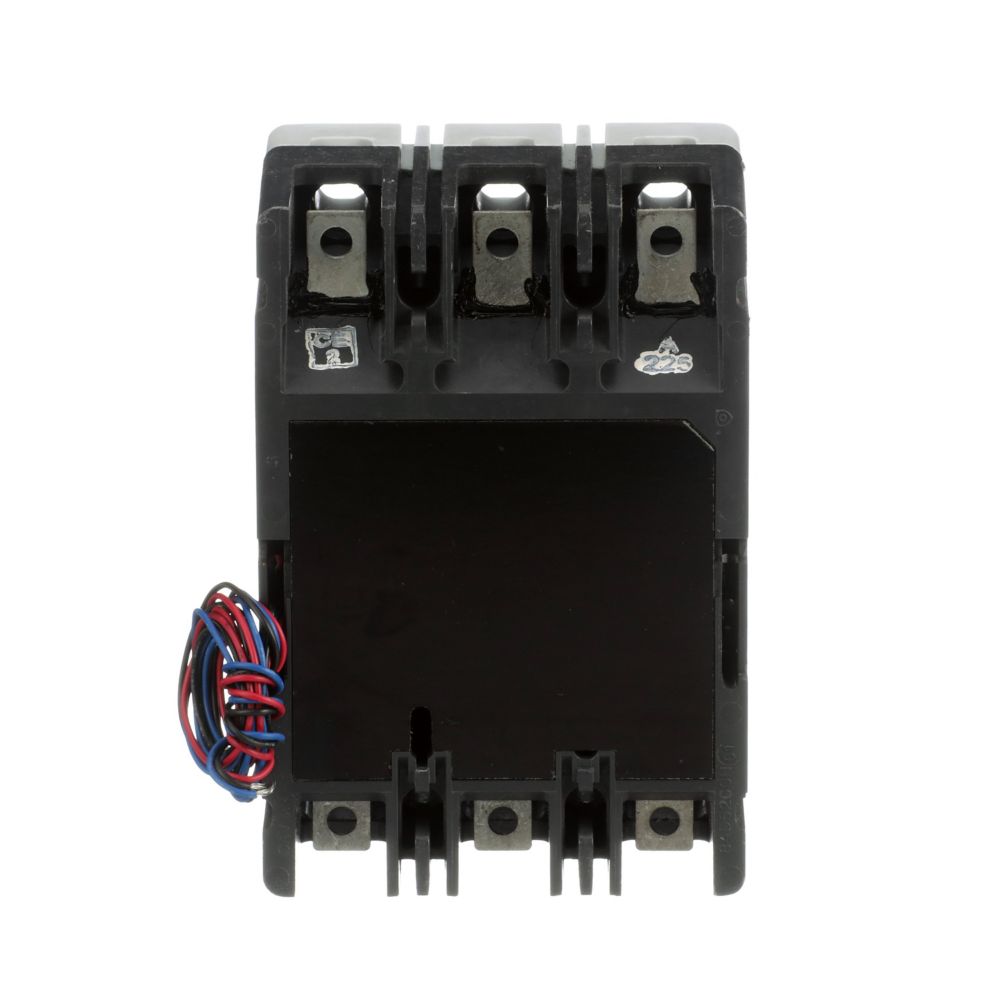

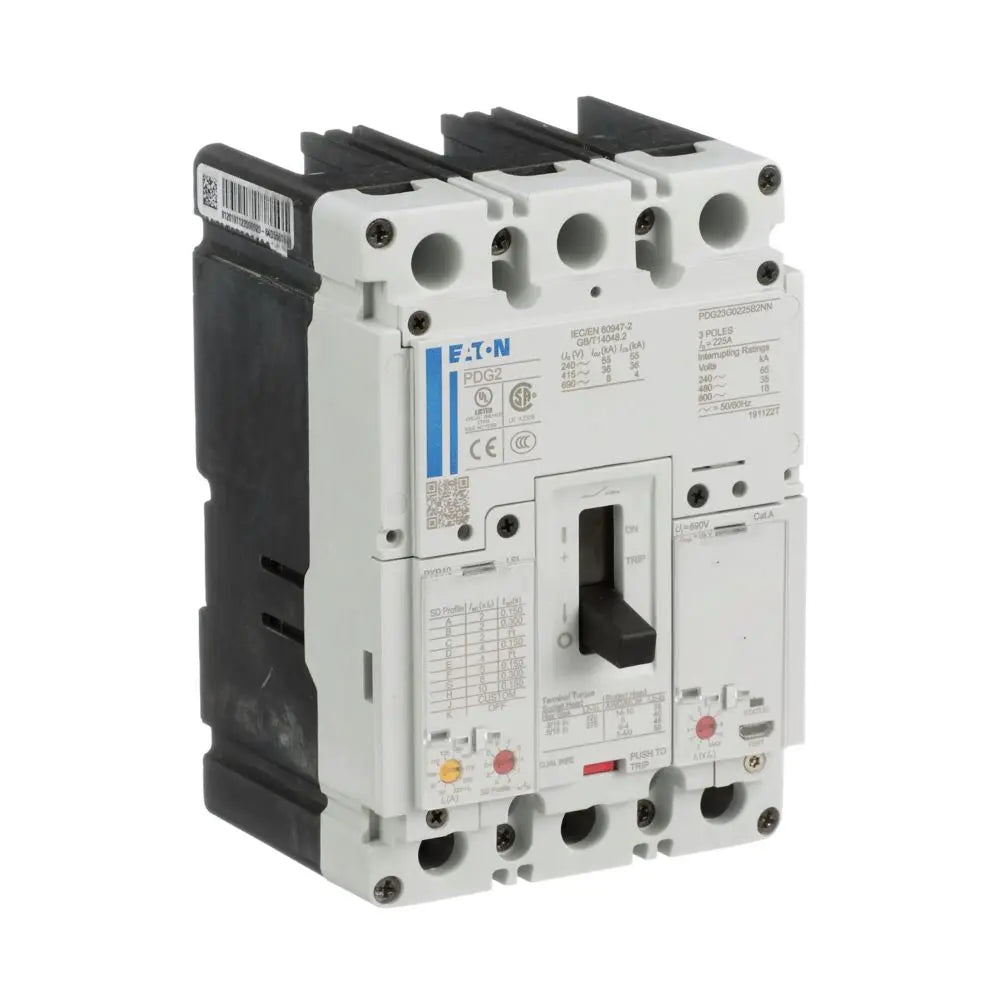

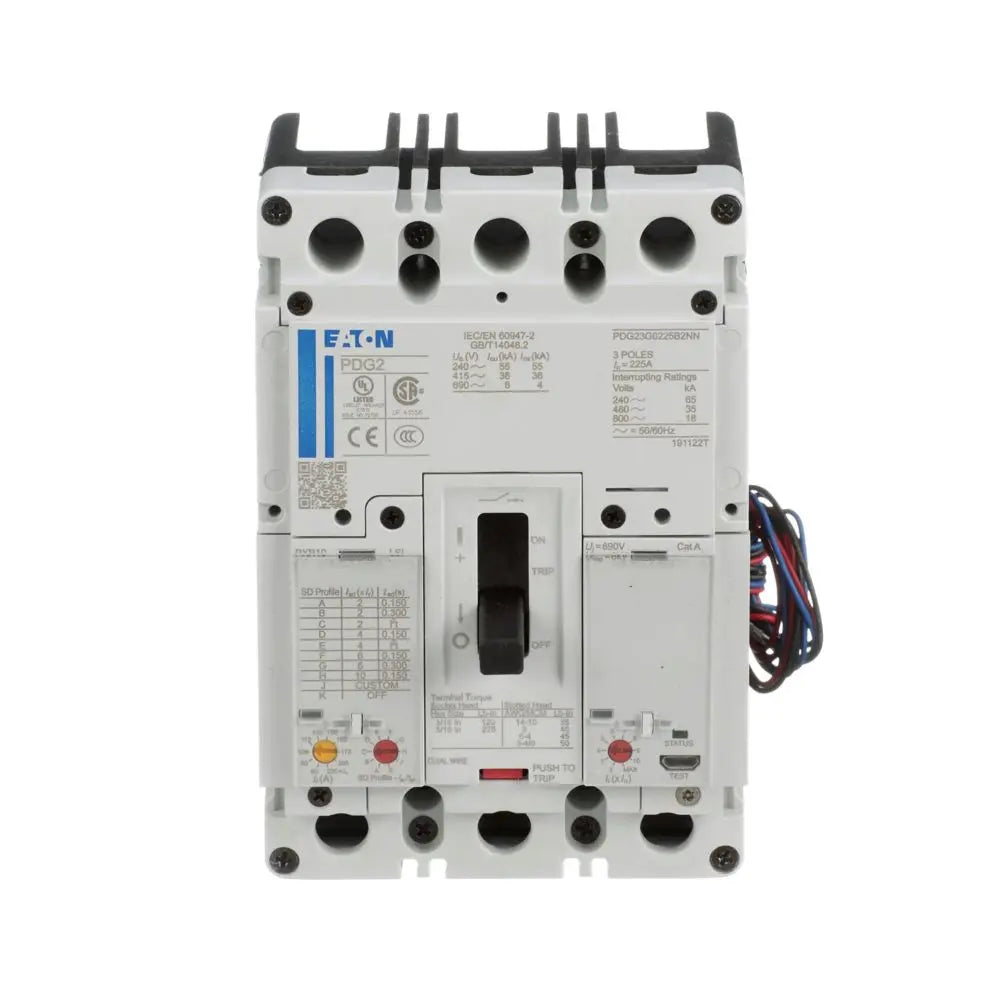

PDG23G0150B2NJ - Cutler Hammer Power Defense 150A 600V 3P Molded Case Circuit Breaker, Frame 2, 35kA/480V, PXR10 LSI TU

PDG23G0150B2NJ

PDG23G0150B2NJ is a three-pole molded case circuit breaker from Cutler Hammer's Power Defense series, designed for reliable protection in commercial and industrial power distribution systems. This breaker features a 150A current rating, 600VAC voltage rating, and a 35kA interrupting capacity at 480VAC. It is built on Frame 2 and includes a PXR10 LSI TU trip unit for precise protection and monitoring. The unit supports standard line and load connections and is globally rated for use in a variety of applications.

• Manufacturer: Cutler Hammer (Eaton)
• Series: Power Defense
• Frame: 2
• Poles: 3
• Amperage Rating: 150A
• Voltage Rating: 600VAC
• Interrupt Rating: 35kA at 480VAC
• Mounting Type: Standard Line and Load
• Trip Unit: PXR10 LSI TU
• Connection Type: Feed-Thru
• Certifications: Globally Rated
• Application: Commercial and Industrial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG23G0150B2NJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long Time, Short Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 786679297209
• GTIN : 786679297209
• Country of Origin : Dominican Republic
• Dimensions : 203.2 mm x 152.4 mm x 165.1 mm (Length/Depth x Height x Width)
• Weight : 5.039131 lb
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
