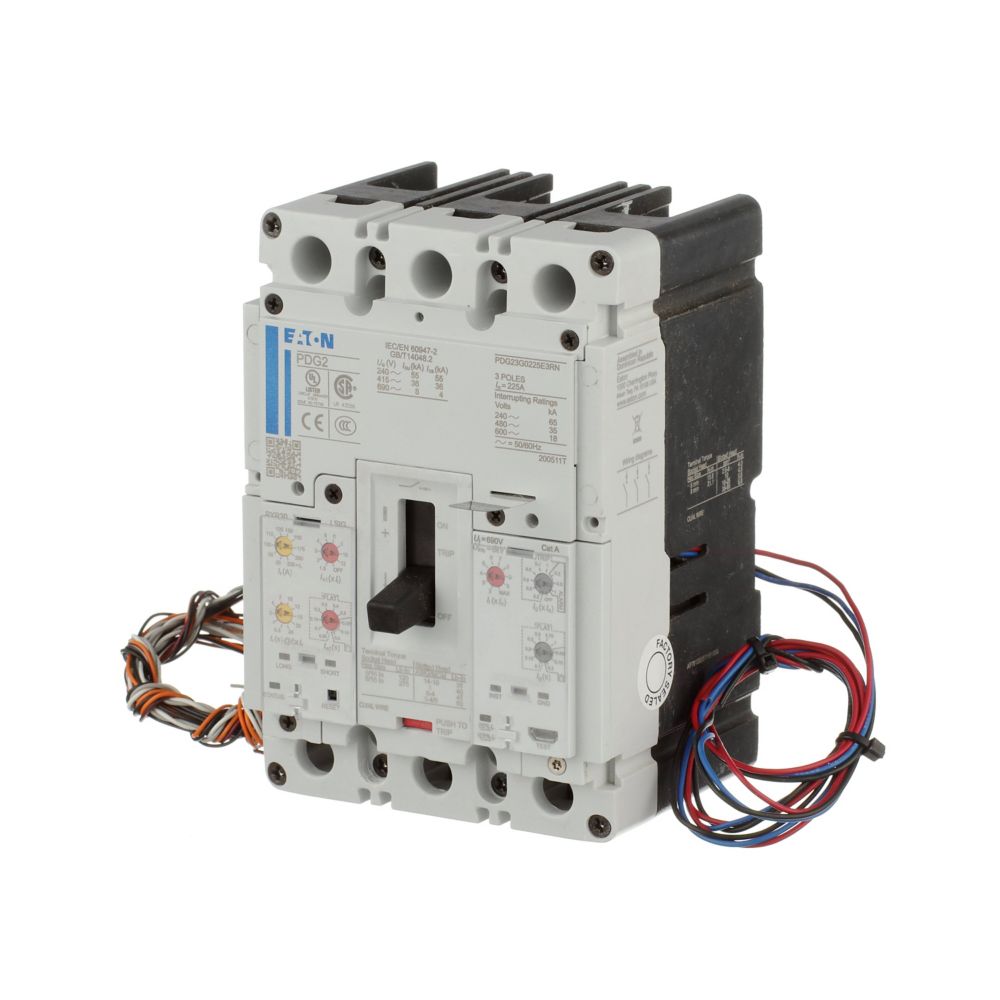

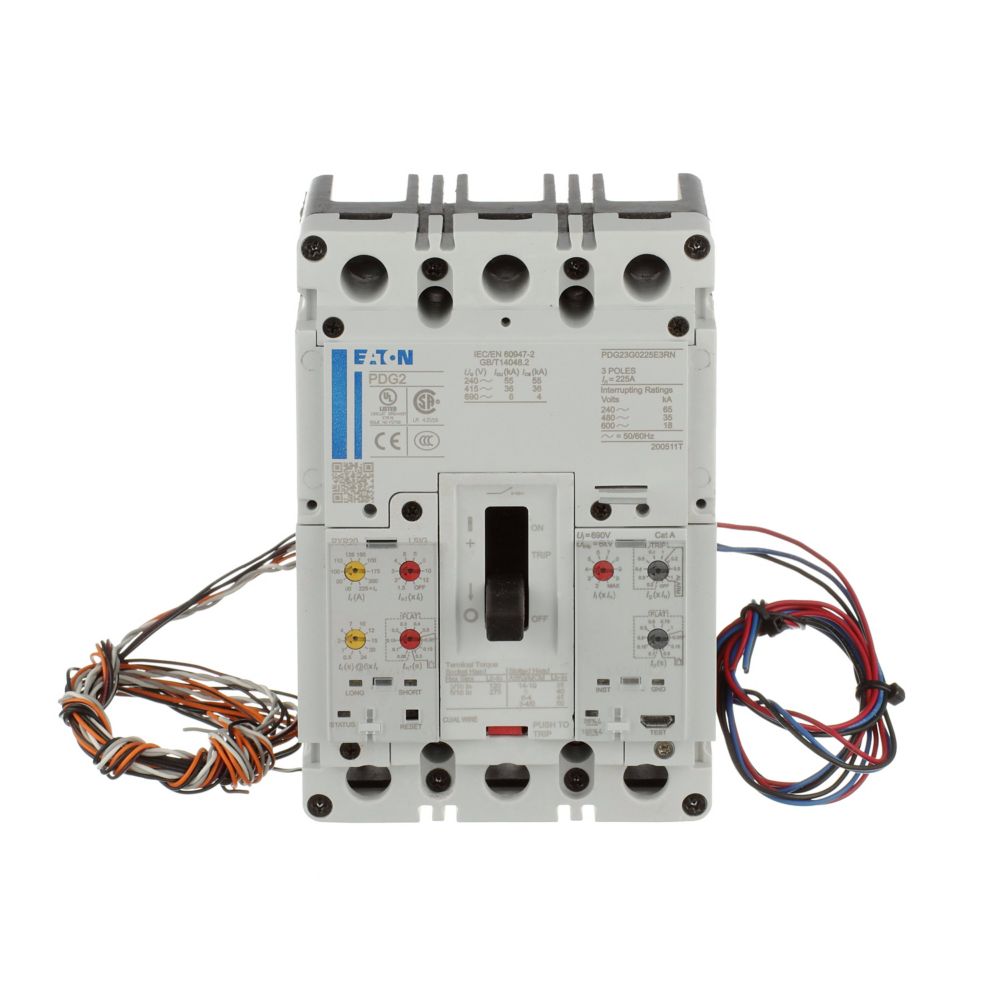

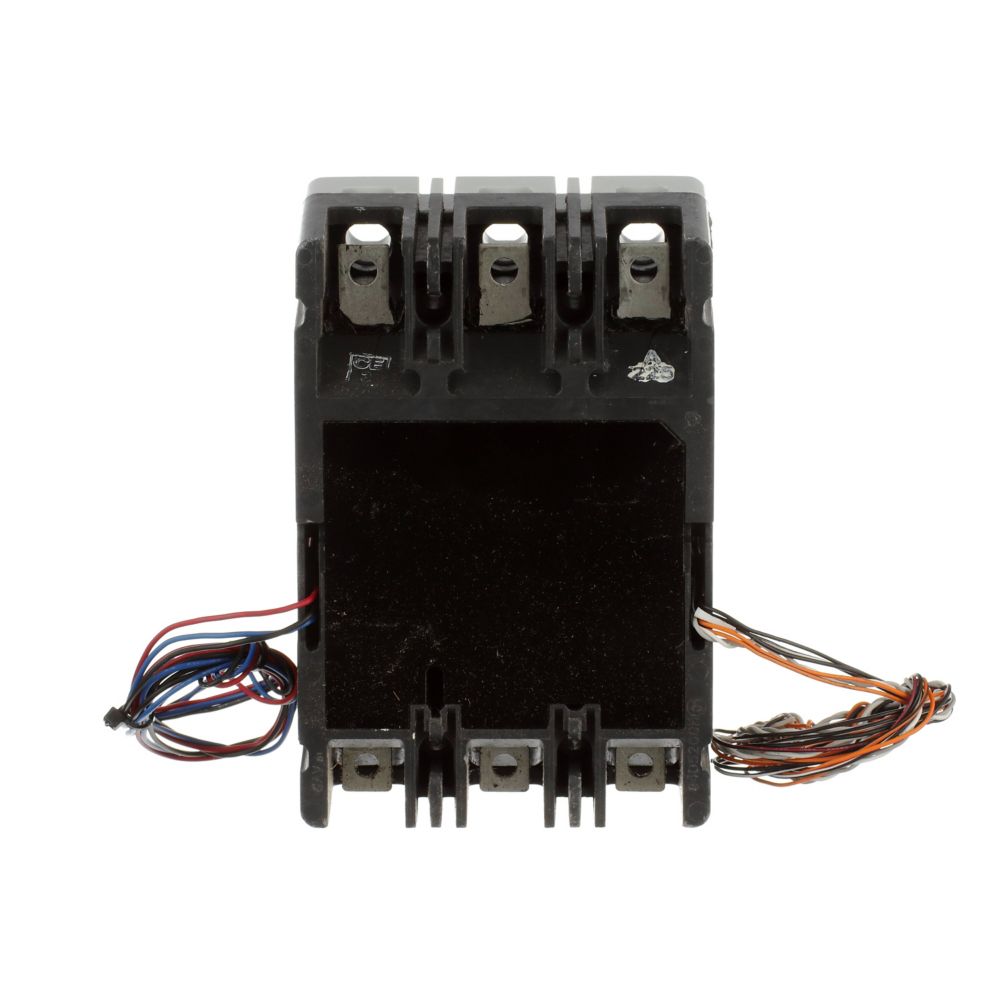

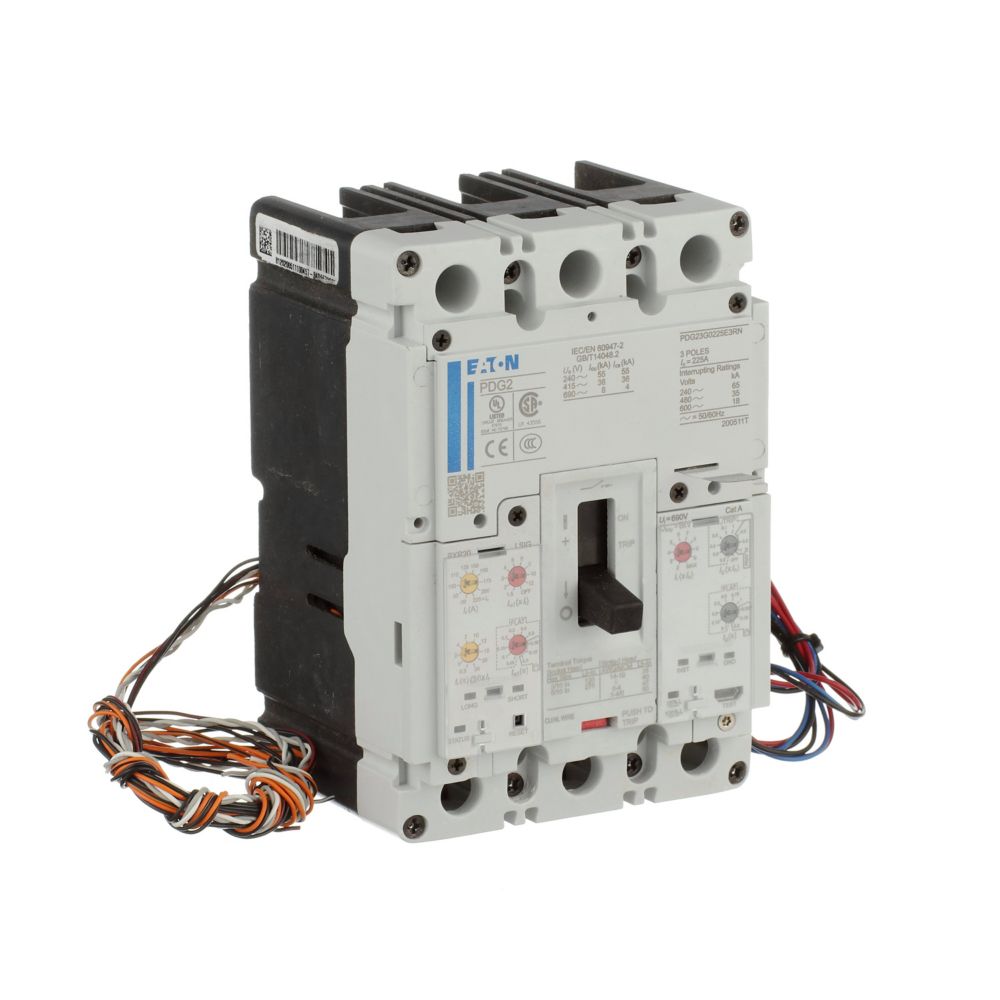

PDG23G0100E3MJ - Cutler Hammer 100A 600V 3 Pole Circuit Breaker Frame 2 LSIG Trip

PDG23G0100E3MJ

PDG23G0100E3MJ is a Cutler Hammer 3 pole circuit breaker rated for 100 amps and 600 volts AC with a 35kA interrupt rating at 480V.This Power Defense molded case circuit breaker features a Frame 2 design with a PXR20 LSIG electronic trip unit and Modbus RTU communication capability. It is globally rated for versatile applications and supports wire sizes from 14 to 1/0 AWG. The breaker provides reliable protection with a 35kA interrupting capacity at 480V and is suitable for demanding industrial and commercial power distribution systems.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 600 VAC
• Poles: 3
• Interrupt Rating: 35 kA at 480 VAC
• Frame: 2
• Trip Unit: PXR20 LSIG electronic trip
• Communication: Modbus RTU
• Mounting Type: Molded Case
• Wire Size Range: 14 to 1/0 AWG
• Certifications: Globally Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG23G0100E3MJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 786679280706
• Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
• Weight : 4.0586
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 490
