Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG23G0100E2ML

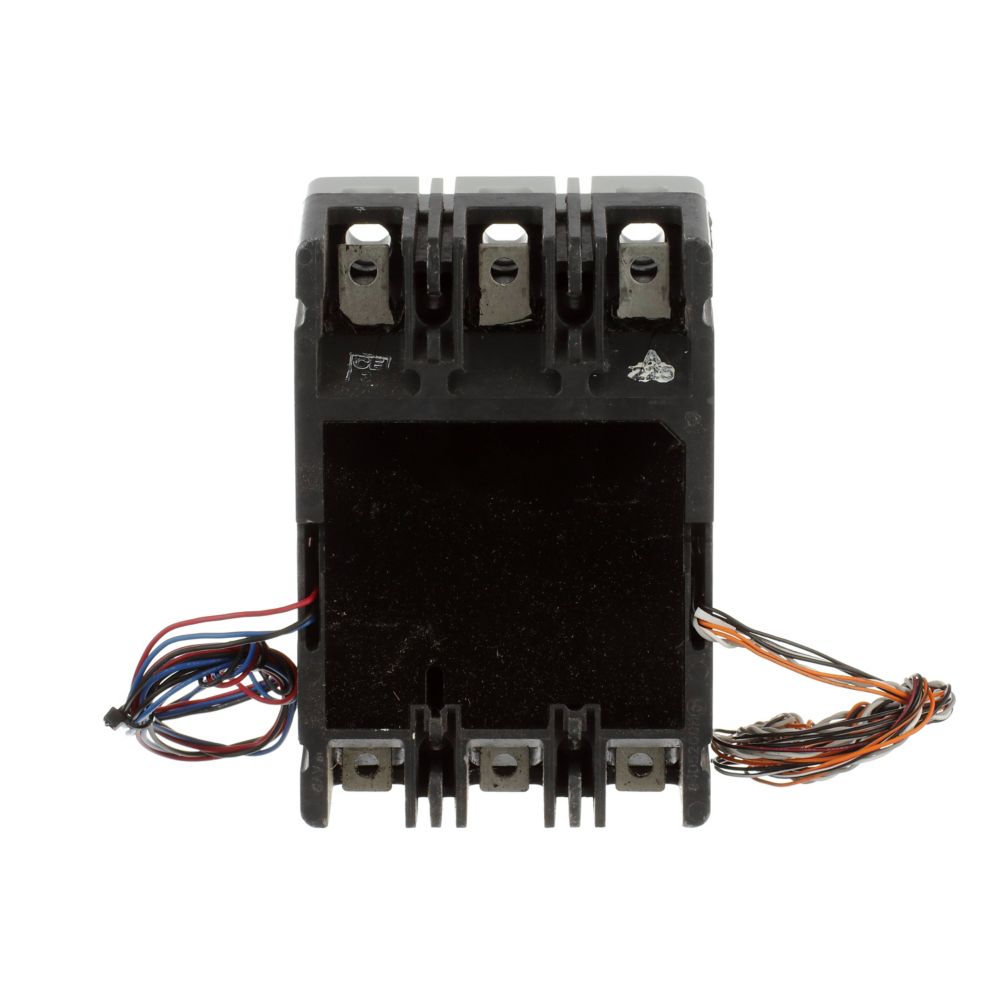

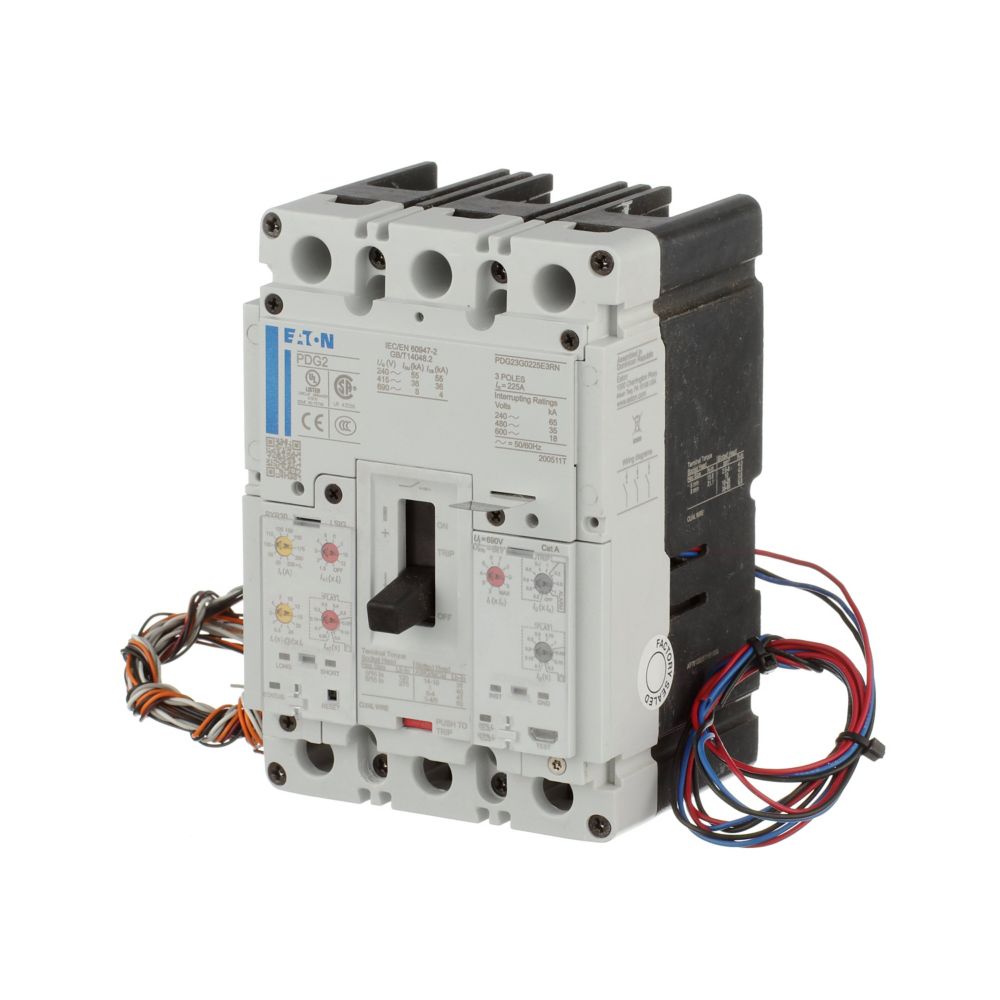

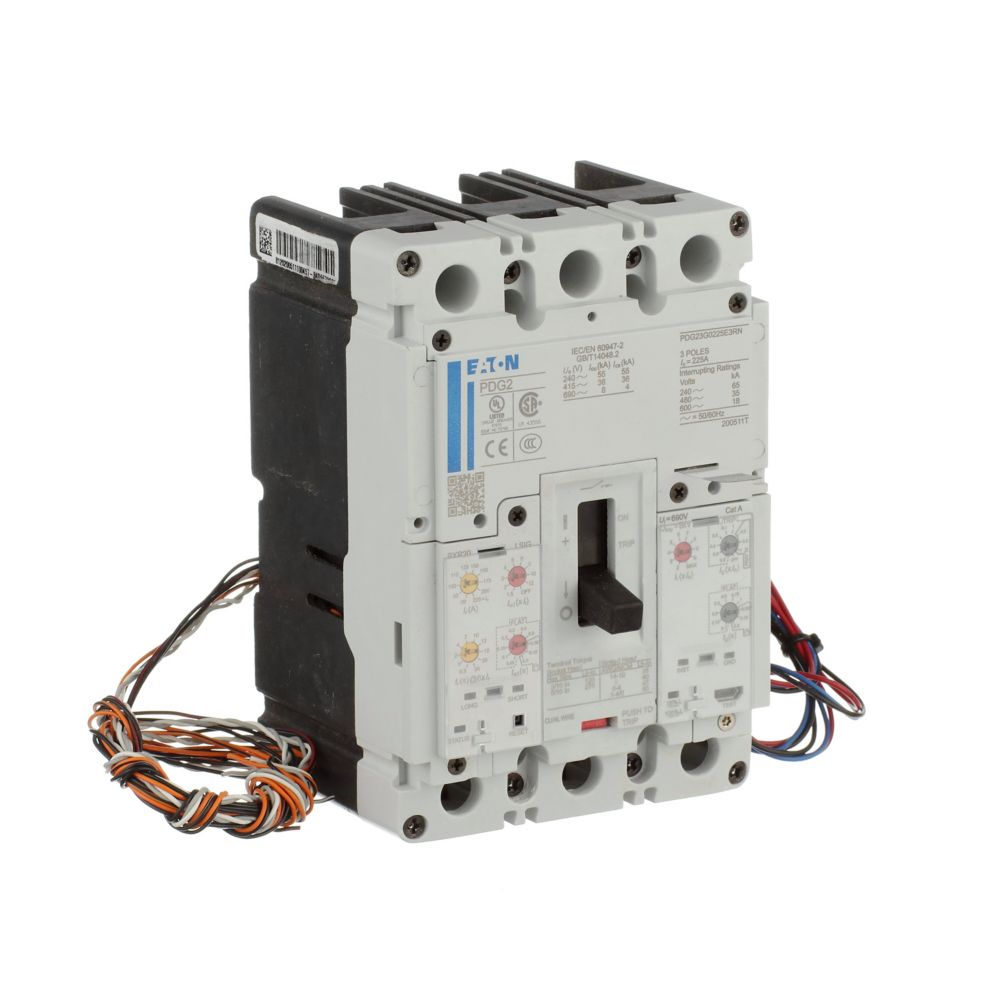

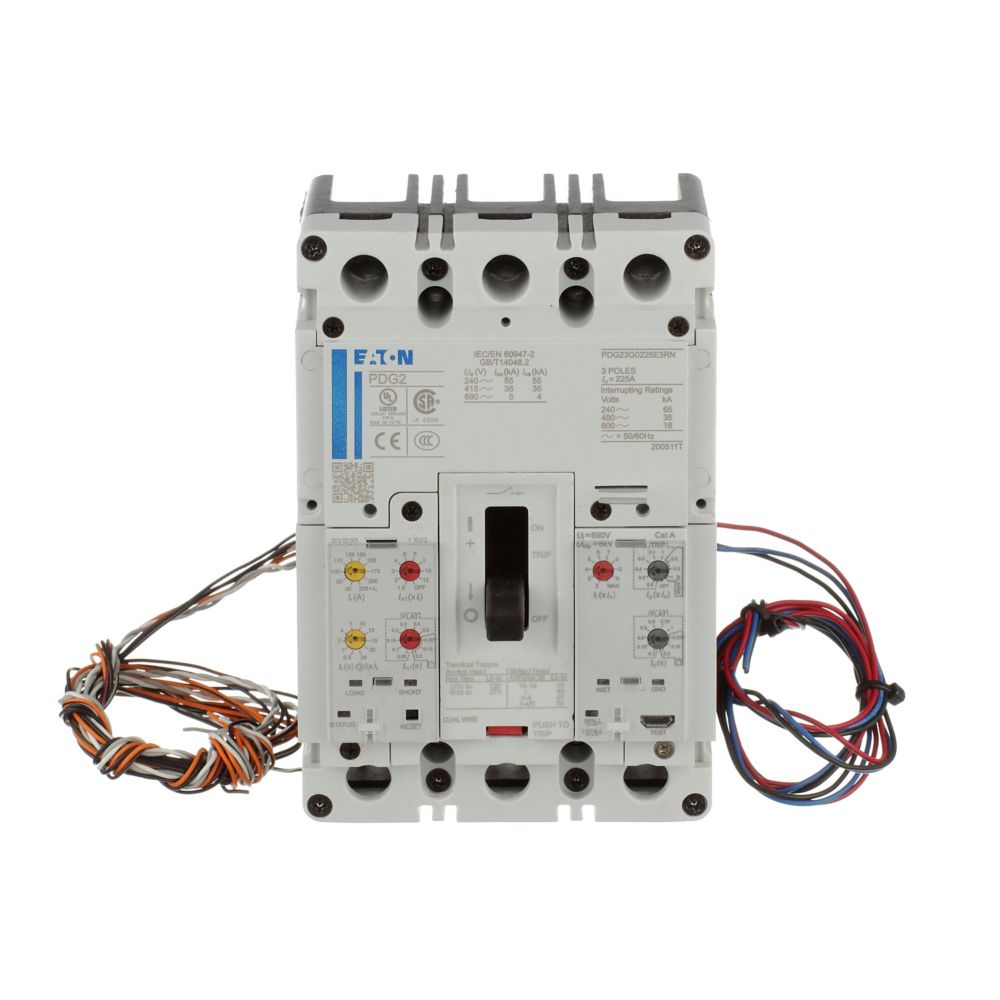

PDG23G0100E2ML is a 3 pole, 100 amp, 600 volt molded case circuit breaker from Eaton Cutler Hammer's Power Defense series.This circuit breaker features a Frame 2 design with a 35kA interrupt rating at 480VAC, suitable for robust industrial and commercial power distribution applications. It is globally rated and designed for bolt-on mounting, providing reliable protection and compliance with industry standards.
- Amperage: 100 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Frame Type: 2 (Power Defense Series)
- Interrupt Rating: 35kA at 480 VAC
- Mounting Type: Bolt-On
- Trip Unit: PXR20 LSI with Modbus RTU communication (per related models)
- Certifications: Globally Rated
Specifications
- Part Number: PDG23G0100E2ML
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LSI - Long Time, Short Time and Instantaneous Trip
- Protection : Solid State
Product Data
- UPC : 786679785713
- Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
- Weight : 4.0586
