Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG23G0100E2MJ

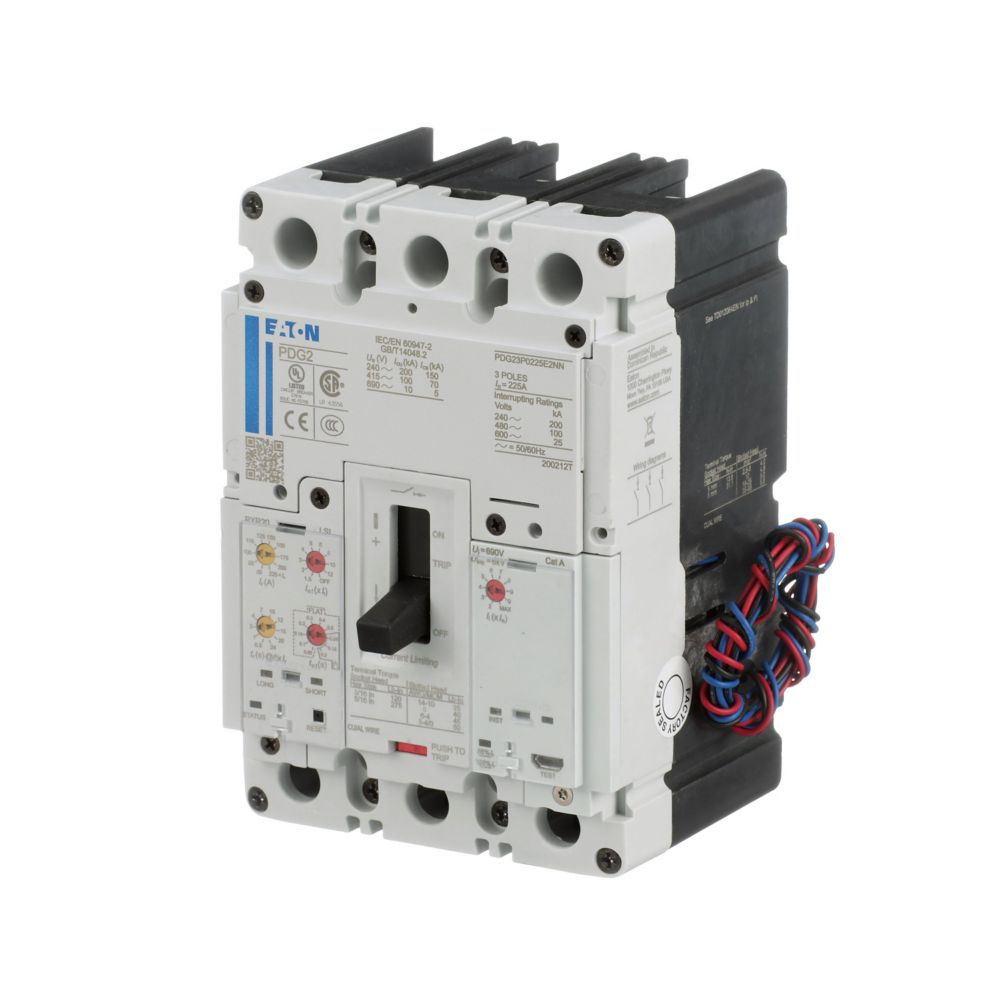

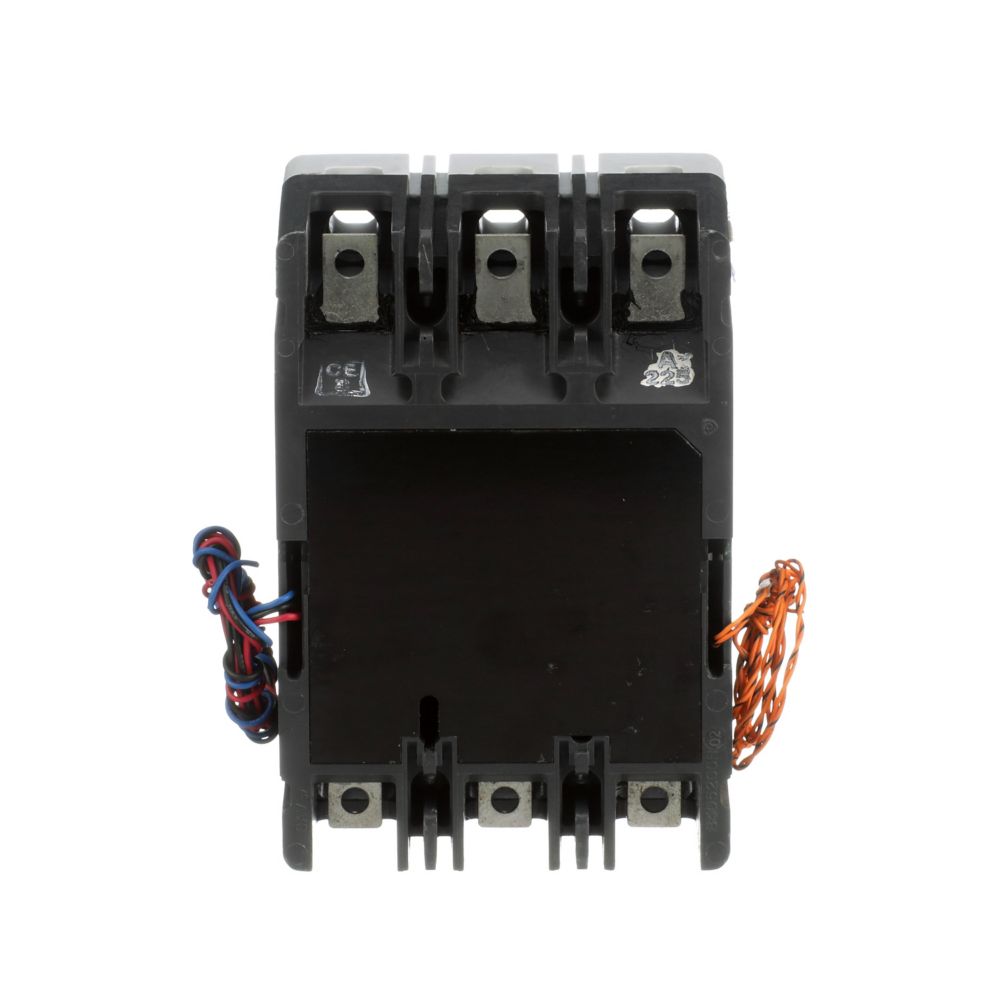

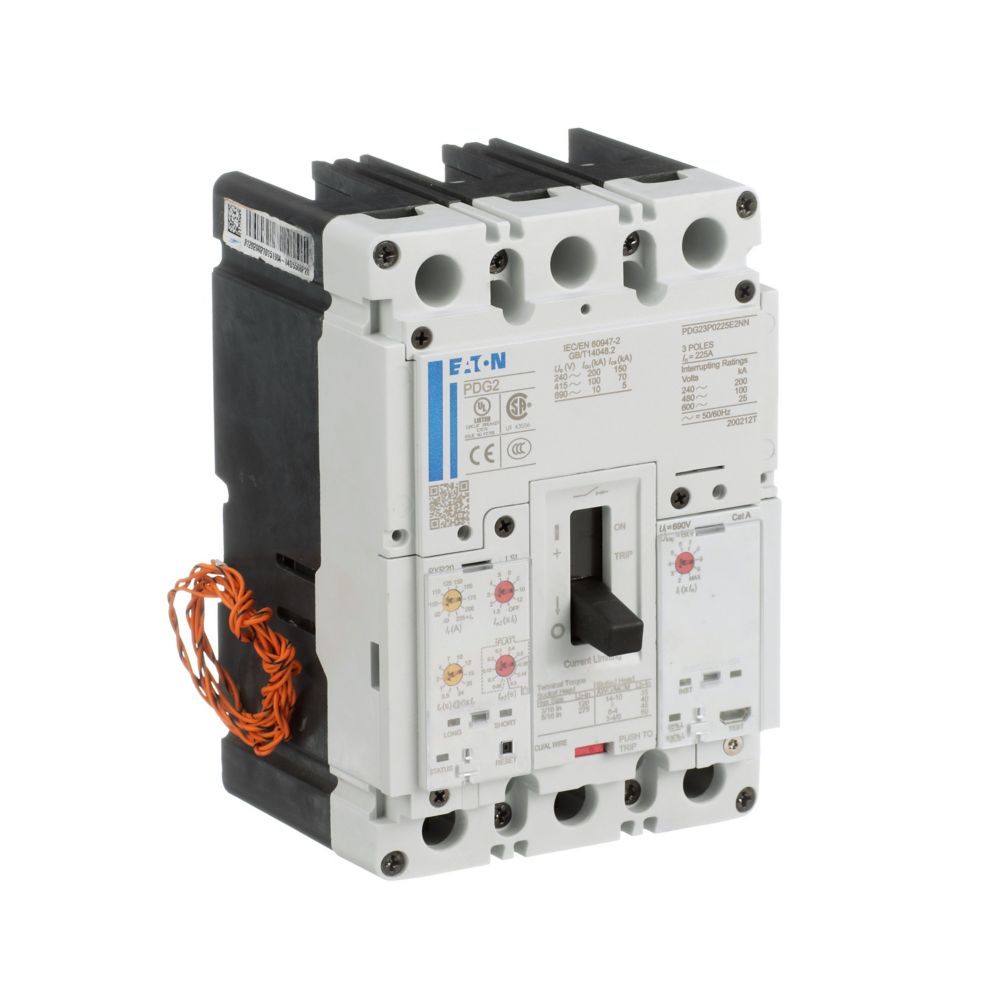

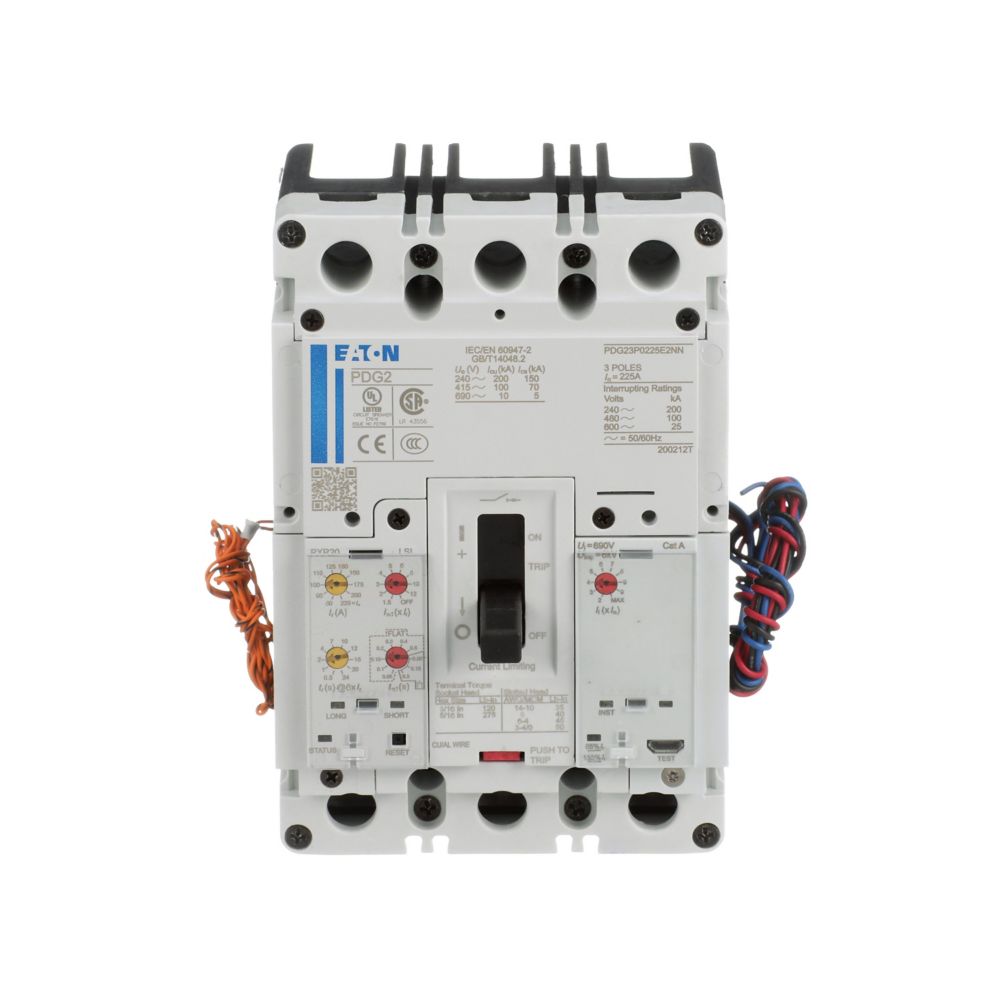

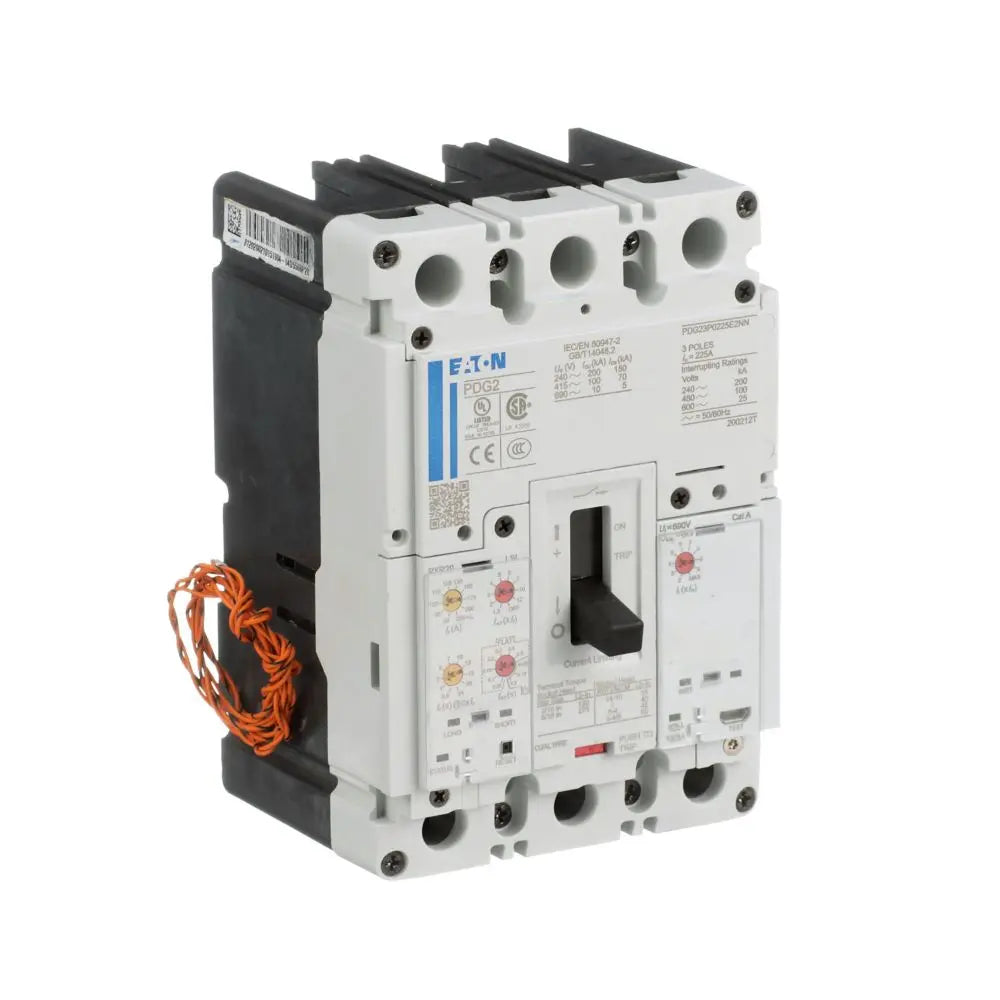

PDG23G0100E2MJ is a 3-pole molded case circuit breaker from Eaton's PD2 Global series rated for 100 amps and 600 VAC operation.This Eaton circuit breaker features a 35 kA interrupt rating at 480 VAC and includes a PXR20 LSI trip unit for reliable protection.
- Amperage: 100 A
- Voltage Rating: 600 VAC
- Poles: 3
- Interrupt Rating: 35 kA at 480 VAC
- Series/Frame: PD2 Global
- Trip Unit: PXR20 LSI
- Mounting Type: Line/Load connection
- Frequency Rating: 50 to 60 Hz
- Circuit Breaker Type: Molded Case
- Certifications: Global ratings compliant
Specifications
- Part Number: PDG23G0100E2MJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679227312
- Country of Origin : Dominican Republic
- Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
- Weight : 4.0586
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
