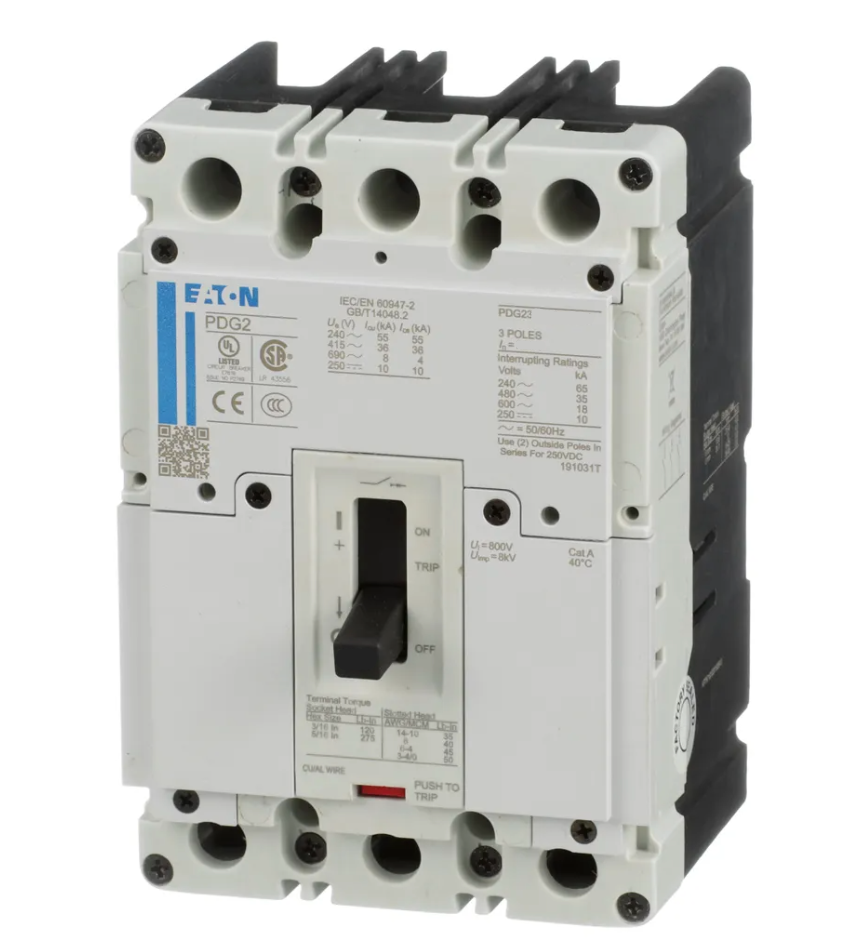

PDG23G0040TFFL - Eaton 40A 600VAC 3-Pole Power Defense Molded Case Circuit Breaker Frame 2 Thermal Magnetic

PDG23G0040TFFL

PDG23G0040TFFL is a 3-pole molded case circuit breaker from Eaton's Power Defense series rated for 40 amps and 600VAC voltage. It features thermal magnetic protection with long time and instantaneous trip functions.This circuit breaker has a frame 2 design with a bolt-on connection type and an interrupting rating of 35kAIC at 480VAC. It supports a voltage rating of 600VAC and 250VDC, suitable for motor control centers and industrial applications. The breaker is certified to CSA, CCC, IEC, and UL standards and is RoHS compliant.

• Amperage: 40A
• Voltage Rating: 600VAC, 250VDC
• Poles: 3
• Interrupting Rating: 35kAIC at 480VAC
• Frame Type: Frame 2 Complete Breaker
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Mounting Type: DIN Rail
• Connection Type: Bolt-On
• Certifications: CSA, CCC, IEC, UL
• Terminal Connection: Standard Load Side Lug
• Max Wire Size: AWG 1/0
• Min Wire Size: AWG 14
• Temperature Rating: -4 to 158 °F

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG23G0040TFFL
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Frame Size : 225A/Frame 2
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679911020
• GTIN : 00786679911020
• Country of Origin : Dominican Republic
• Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
• Weight : 4.0586 lb
• Standards : CCC, CSA, IEC 60947-2, UL 489
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
