Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG22G0125TFFJ

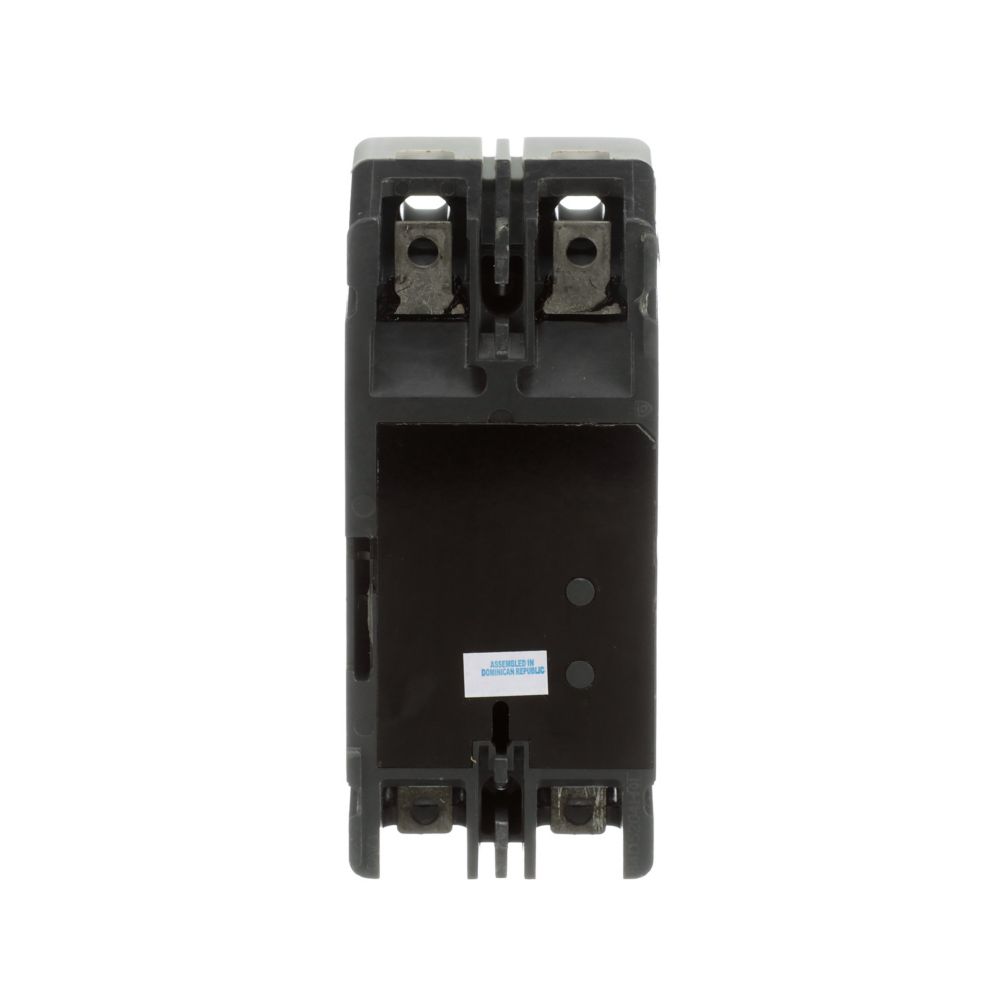

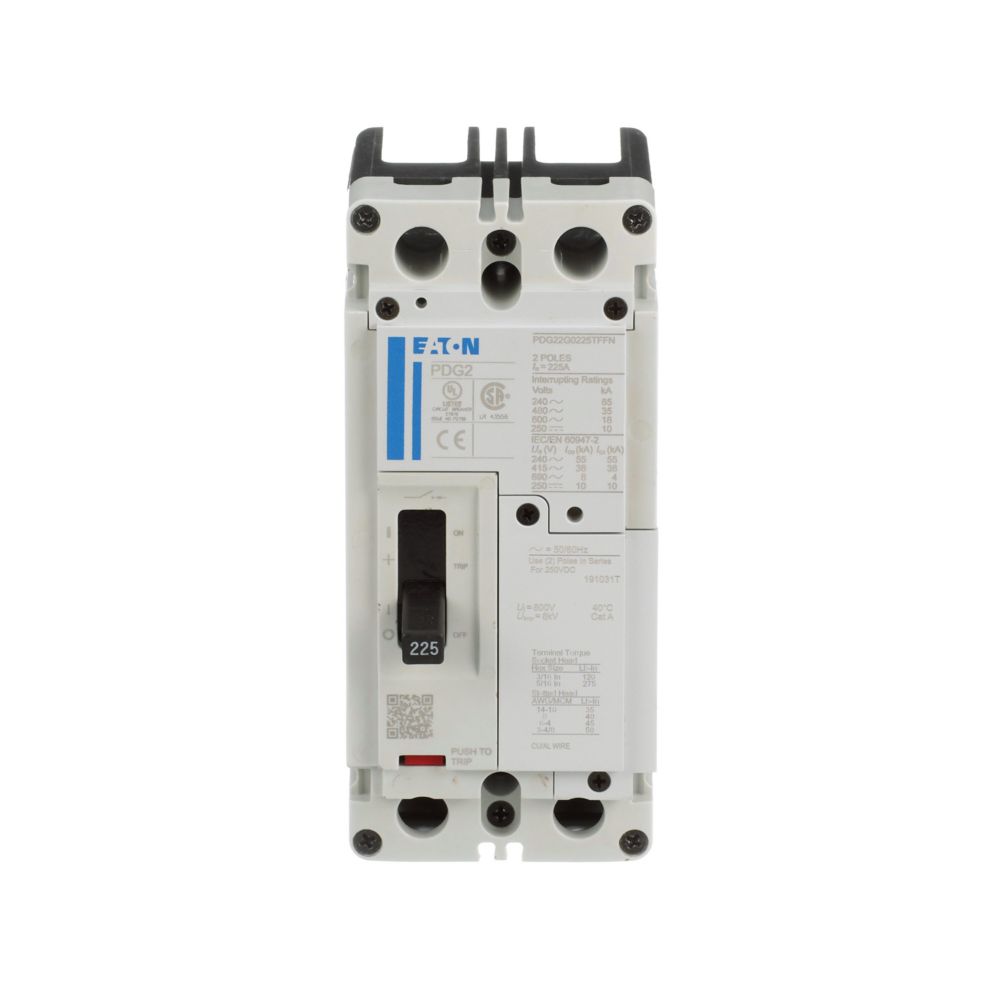

PDG22G0125TFFJ is a Cutler Hammer molded case circuit breaker designed for reliable power protection in industrial and commercial applications.This 2-pole circuit breaker features a 125 ampere rating and a voltage rating of 600 VAC, with a PD2 global frame type. It includes a thermal magnetic trip unit (T298) and an interrupt rating of 35 kAIC at 480 VAC, ensuring robust fault interruption. The breaker is suitable for feed-thru connection and offers long-time trip functions for enhanced circuit protection.
- Key Specifications
- Amperage: 125 A
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 2
- Frame Type: PD2 Global
- Interrupt Rating: 35 kAIC at 480 VAC
- Trip Unit: Thermal Magnetic (T298)
- Mounting Type: Molded Case
- Connection: Feed-Thru
- Series: Power Defense (PDG)
- Certifications: UL Listed, CSA Certified (typical for Eaton breakers)
- Part Number: PDG22G0125TFFJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 125
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 786679275092
- GTIN : 00786679275092
- Country of Origin : Dominican Republic
- Dimensions : 88.9 mm x 152.4 mm x 69.9 mm (Length/Depth x Height x Width)
- Weight : 4.55143
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
