Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG22G0100TFFL

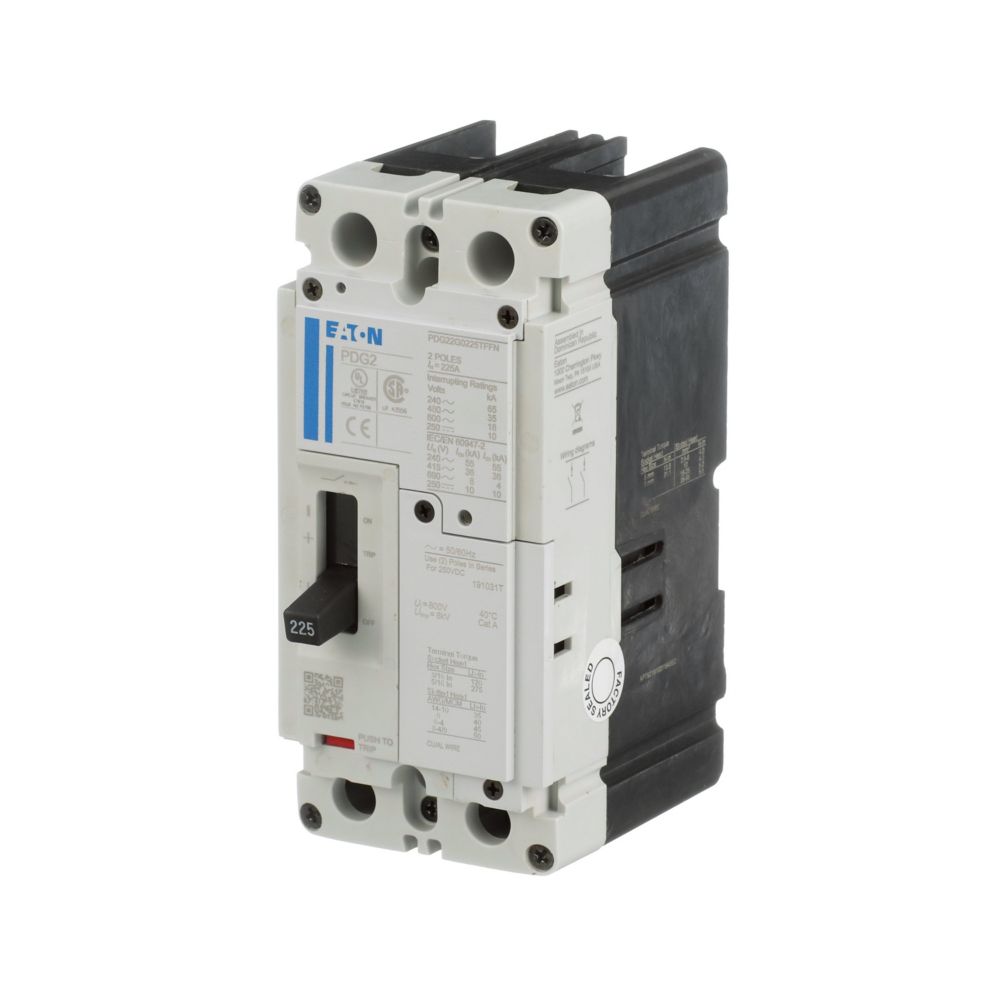

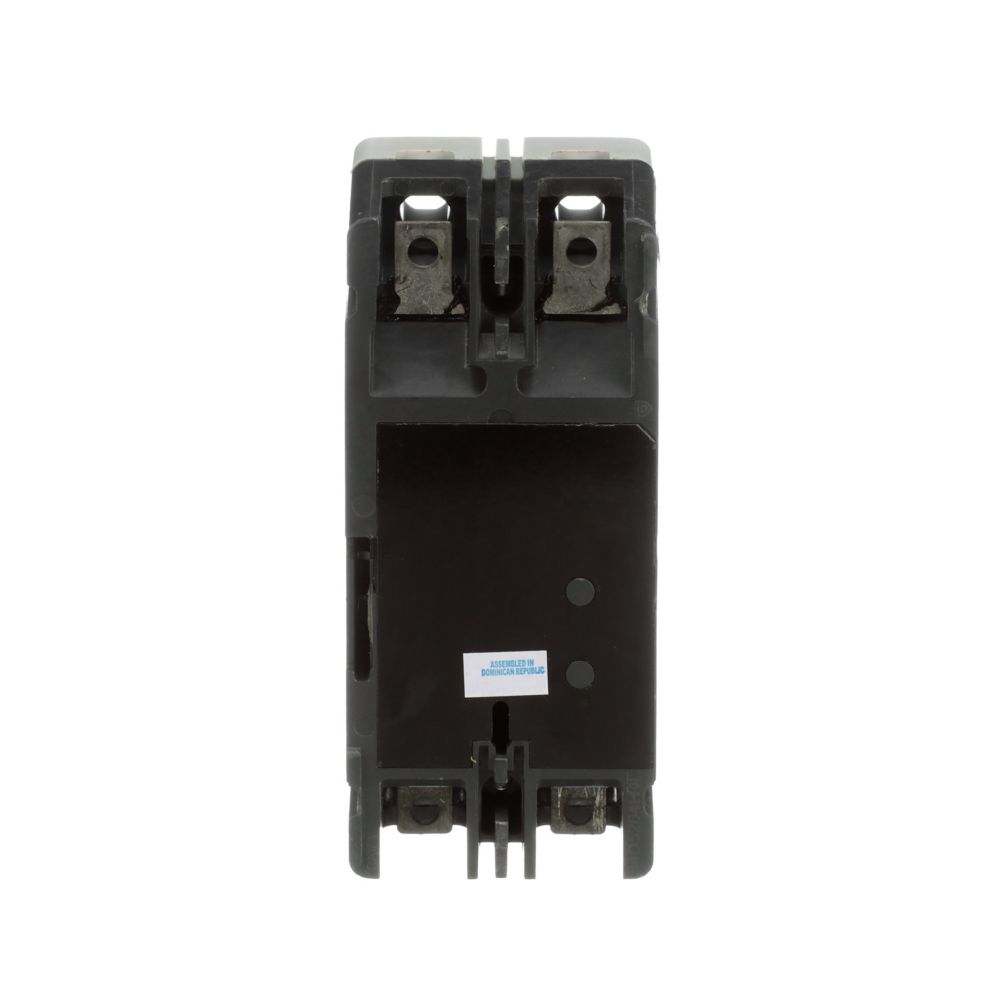

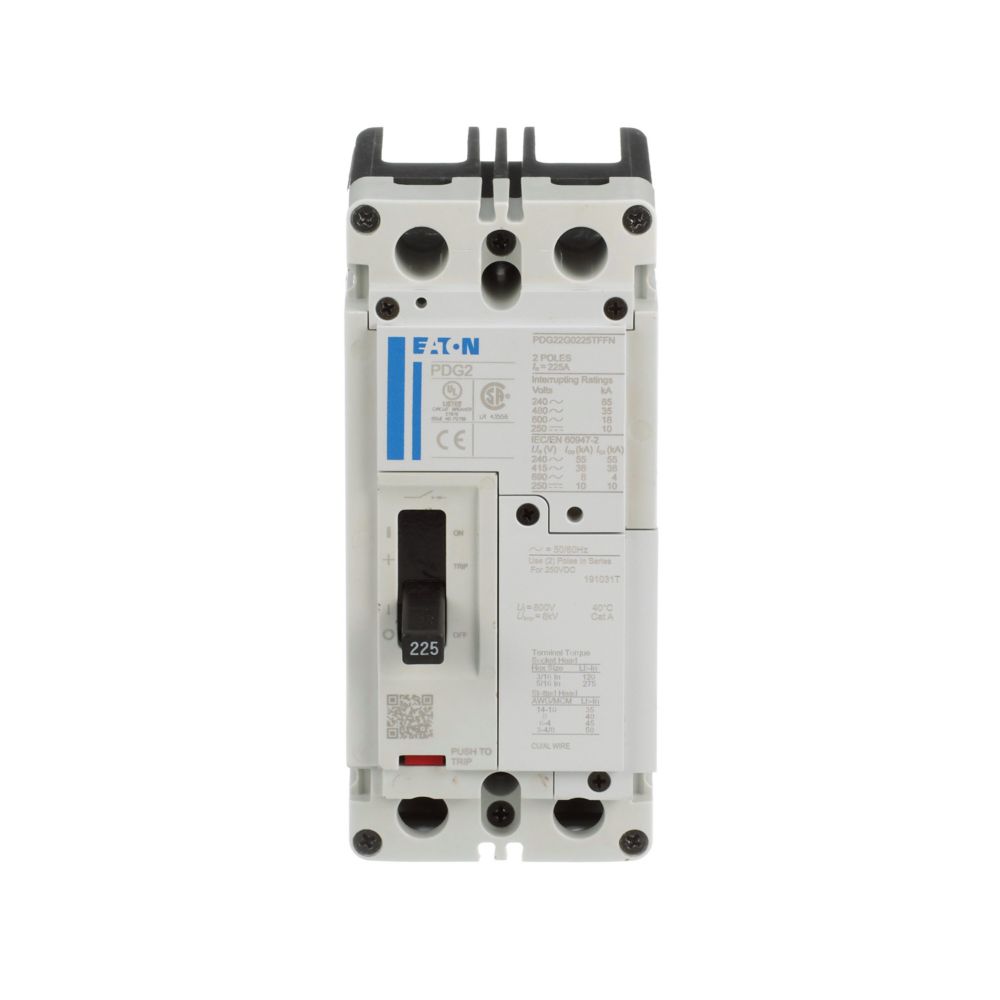

PDG22G0100TFFL is a Eaton Power Defense molded case circuit breaker rated for 100 amps, 600 volts, with 2 poles and a 35kA interrupt rating at 480 volts.This circuit breaker features a Frame 2 design with thermal magnetic trip unit (T298) providing reliable protection. It supports standard line and load terminals and is globally rated with UL, CSA, IEC, and CCC certifications. The breaker is designed for bolt-on mounting and offers feed-thru connection capability.
- Amperage: 100 A
- Voltage Rating: 600 Vac
- Poles: 2
- Interrupt Rating: 35 kA at 480 Vac
- Frame Type: Complete breaker, Frame 2
- Trip Unit: Thermal Magnetic (T298)
- Mounting Type: Bolt-On
- Connection: Feed-Thru
- Certifications: UL, CSA, IEC, CCC
- Dimensions: 3.5 in H x 6 in W x 2.75 in D
- Weight: 4.49 lbs
Specifications
- Part Number: PDG22G0100TFFL
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679992357
- Country of Origin : Dominican Republic
- Dimensions : 88.9 mm x 152.4 mm x 69.9 mm (Length/Depth x Height x Width)
- Weight : 4.55143
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
