Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG21M0080TFFJ

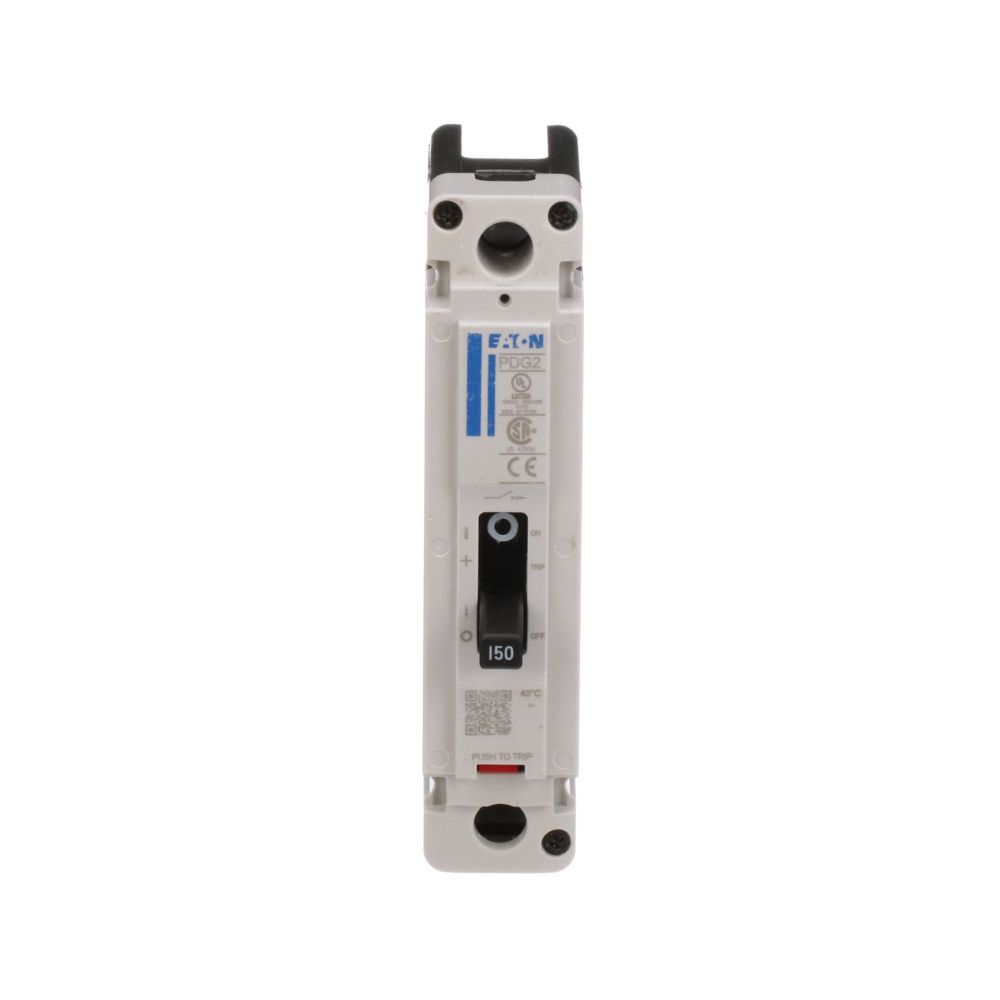

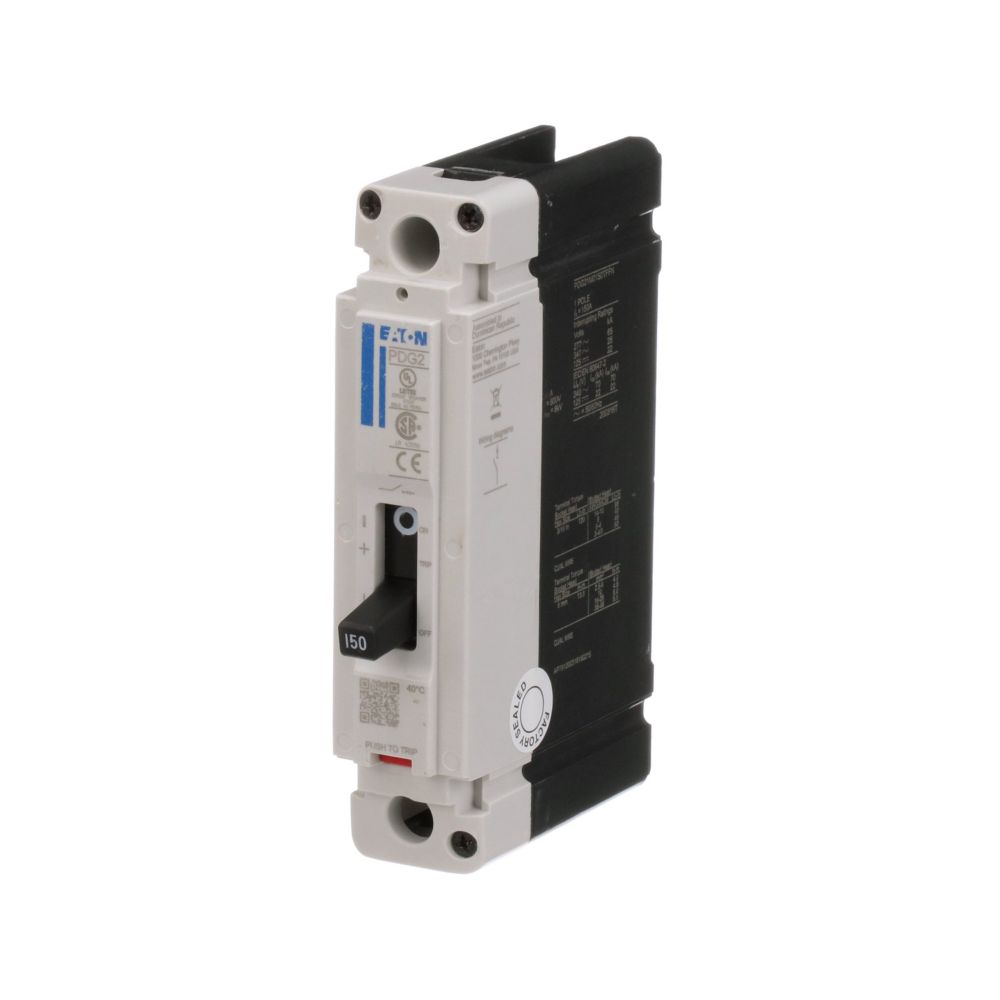

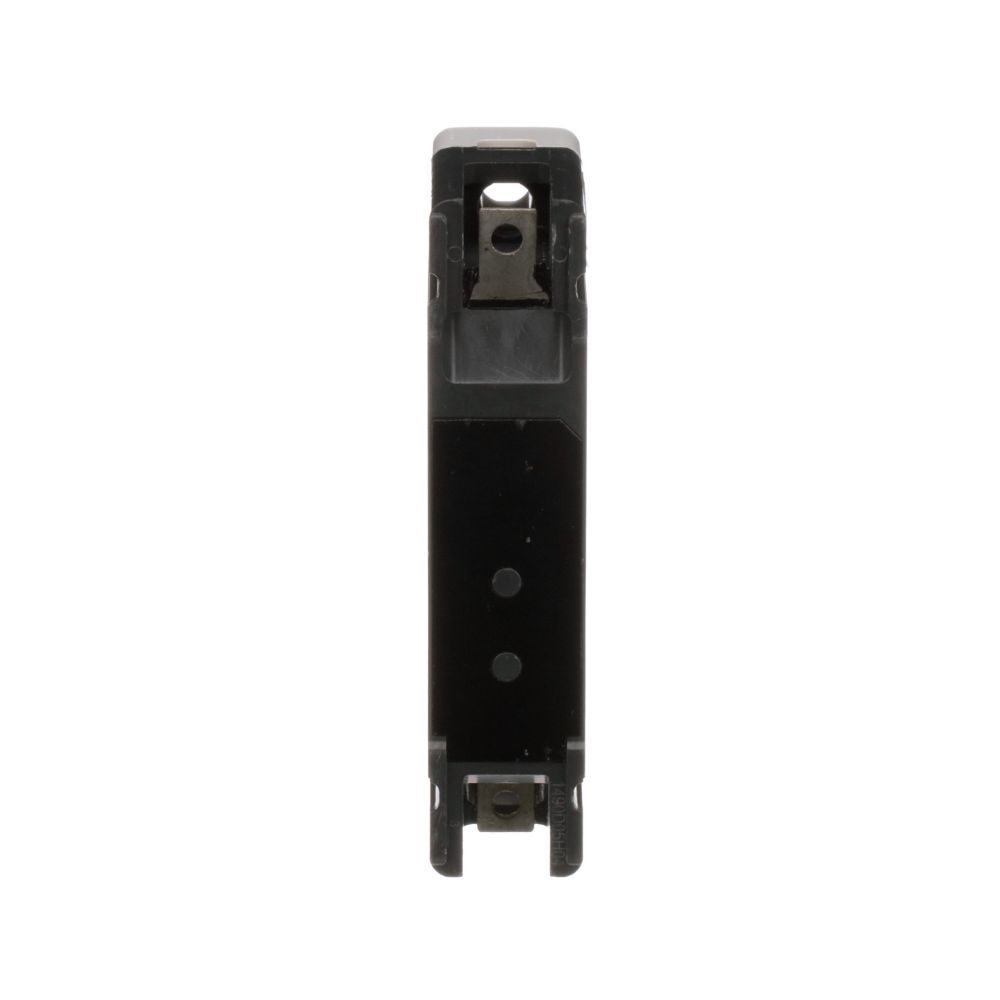

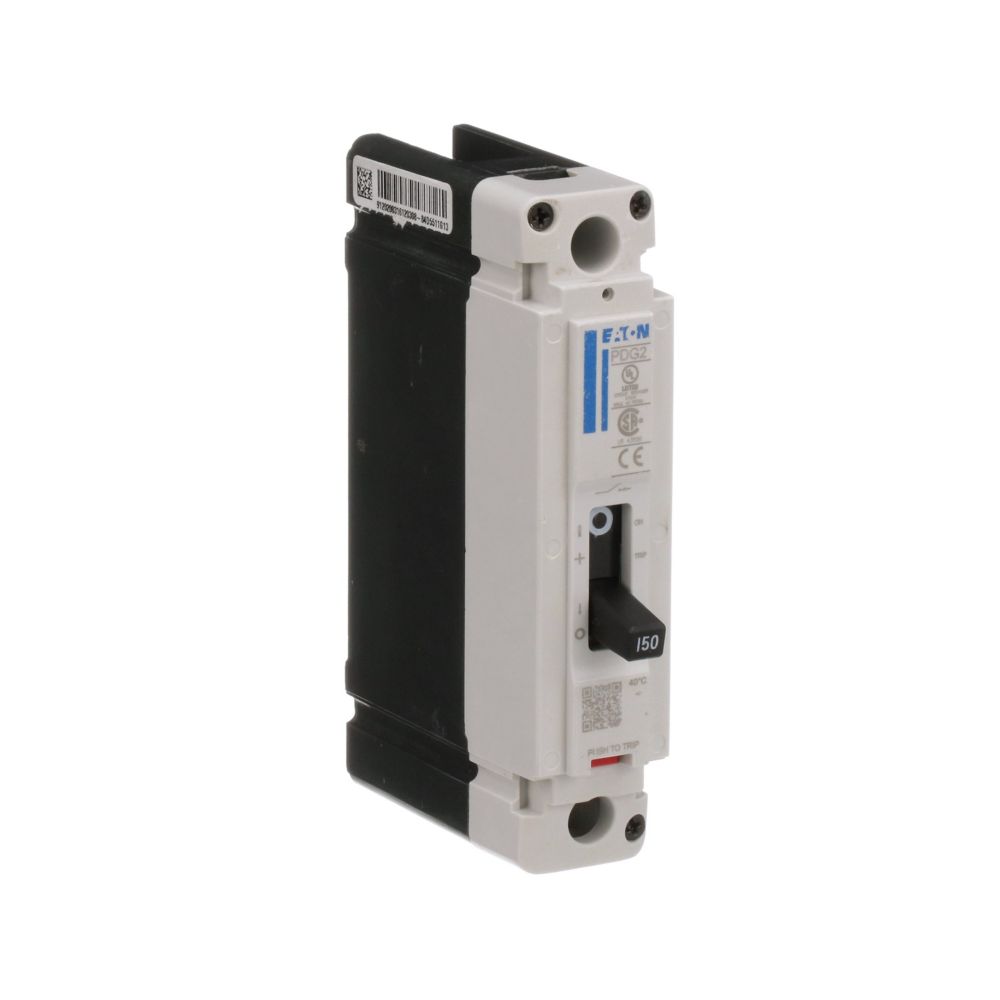

PDG21M0080TFFJ is a Cutler Hammer molded case circuit breaker designed for reliable power protection in industrial and commercial applications.This Eaton Power Defense series breaker features a single pole, 80 ampere rating, and 600 volt maximum voltage. It has a 65kA interrupting rating at 480 volts and uses a fixed thermal/fixed magnetic trip unit (T-M Fxd-Fxd TU). The breaker is UL, CSA, IEC, and CCC certified, built on Frame 2 for panel mounting.
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: PDG21M0080TFFJ
- Series/Frame: Power Defense Frame 2
- Poles: 1
- Amperage: 80A
- Voltage Rating: 600V AC max
- Interrupt Rating: 65kA at 480V
- Trip Unit: Fixed Thermal / Fixed Magnetic (T-M Fxd-Fxd)
- Mounting Type: Panel Mount
- Certifications: UL, CSA, IEC, CCC
- Phase: Single
Specifications
- Part Number: PDG21M0080TFFJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 80
- Phase : 1
- Poles : 1
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679276877
- GTIN : 00786679276877
- Country of Origin : Dominican Republic
- Dimensions : 88.9 mm x 152.4 mm x 35.1 mm (Length/Depth x Height x Width)
- Weight : 4.55143
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
