PDG21M0045TFFJ - Cutler Hammer 45 Amp 600 Volt 1 Pole Molded Case Circuit Breaker Frame 2 T-M Trip Unit

PDG21M0045TFFJ

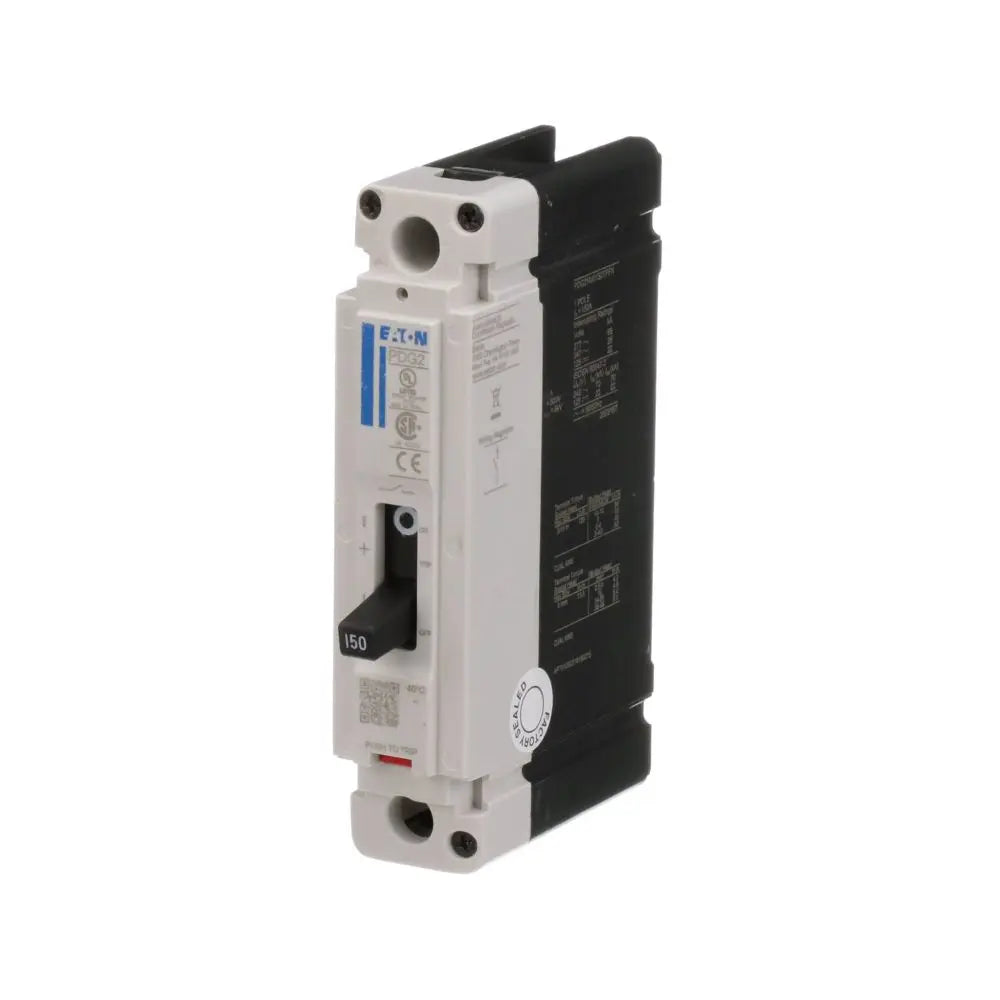

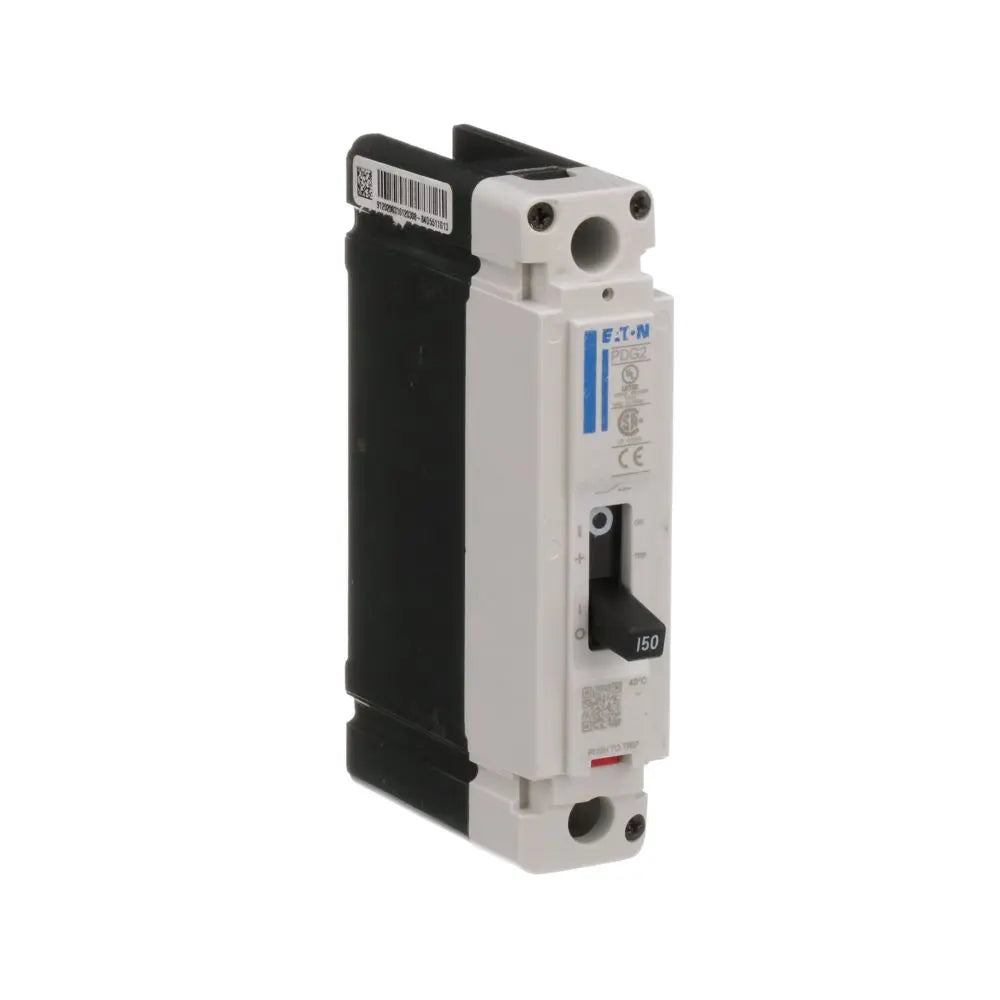

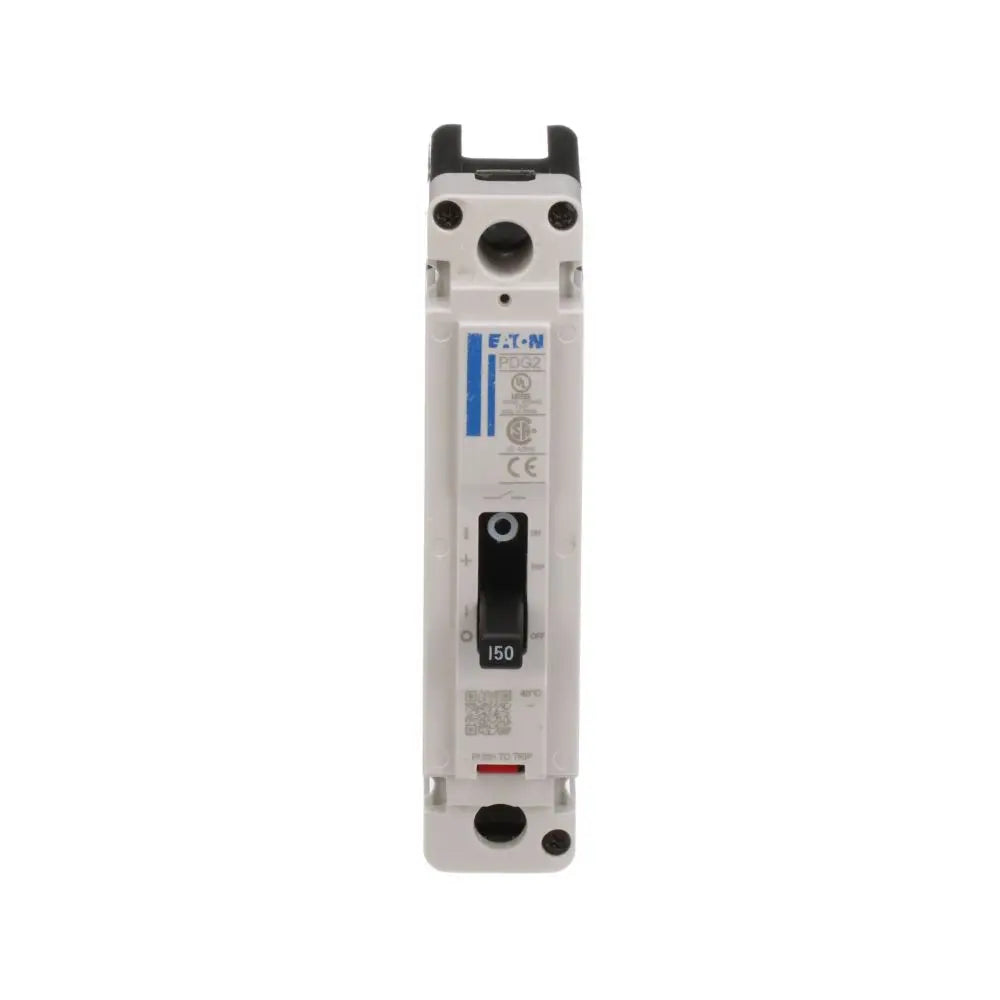

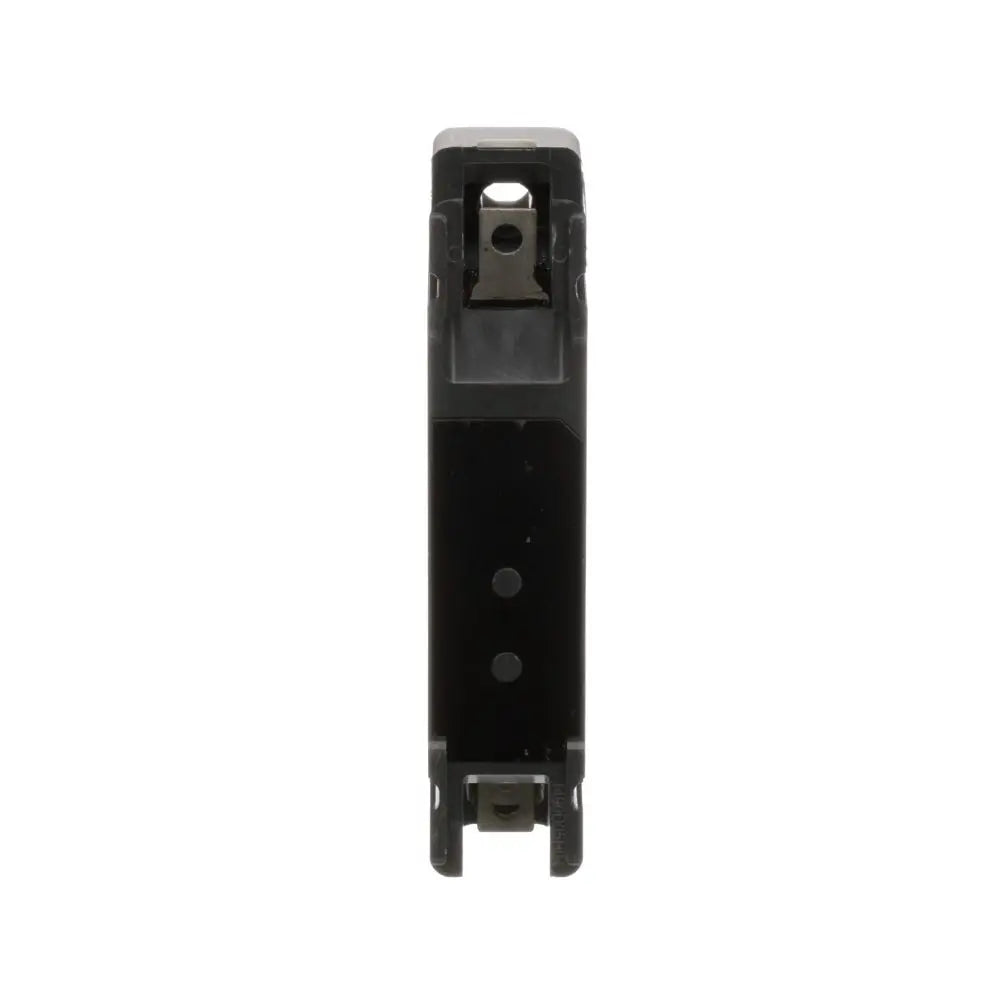

PDG21M0045TFFJ is a Cutler Hammer molded case circuit breaker designed for reliable power protection in industrial and commercial applications.This single-pole breaker features a 45 ampere rating and supports up to 600 volts AC. It belongs to Frame 2 with a T-M fixed-fixed trip unit, providing a 65 kA interrupt rating at 480 volts. The breaker is UL listed, ensuring compliance with safety standards. It is designed for feed-thru connection and suitable for use in power distribution systems requiring robust circuit protection.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 45 A
• Voltage: 600 VAC max
• Poles: 1
• Frame: 2
• Trip Unit: T-M fixed-fixed
• Interrupt Rating: 65 kA at 480 V
• Mounting Type: Feed-Thru
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: PDG21M0045TFFJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 45
• Phase : 1
• Poles : 1
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 786679219430
• GTIN : 00786679219430
• Country of Origin : Dominican Republic
• Dimensions : 88.9 mm x 152.4 mm x 35.1 mm (Length/Depth x Height x Width)
• Weight : 4.55143
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
