PDG21M0040TFFJ - Cutler Hammer 40A 600V 1 Pole Power Defense Circuit Breaker Frame 2 T-M Trip

PDG21M0040TFFJ

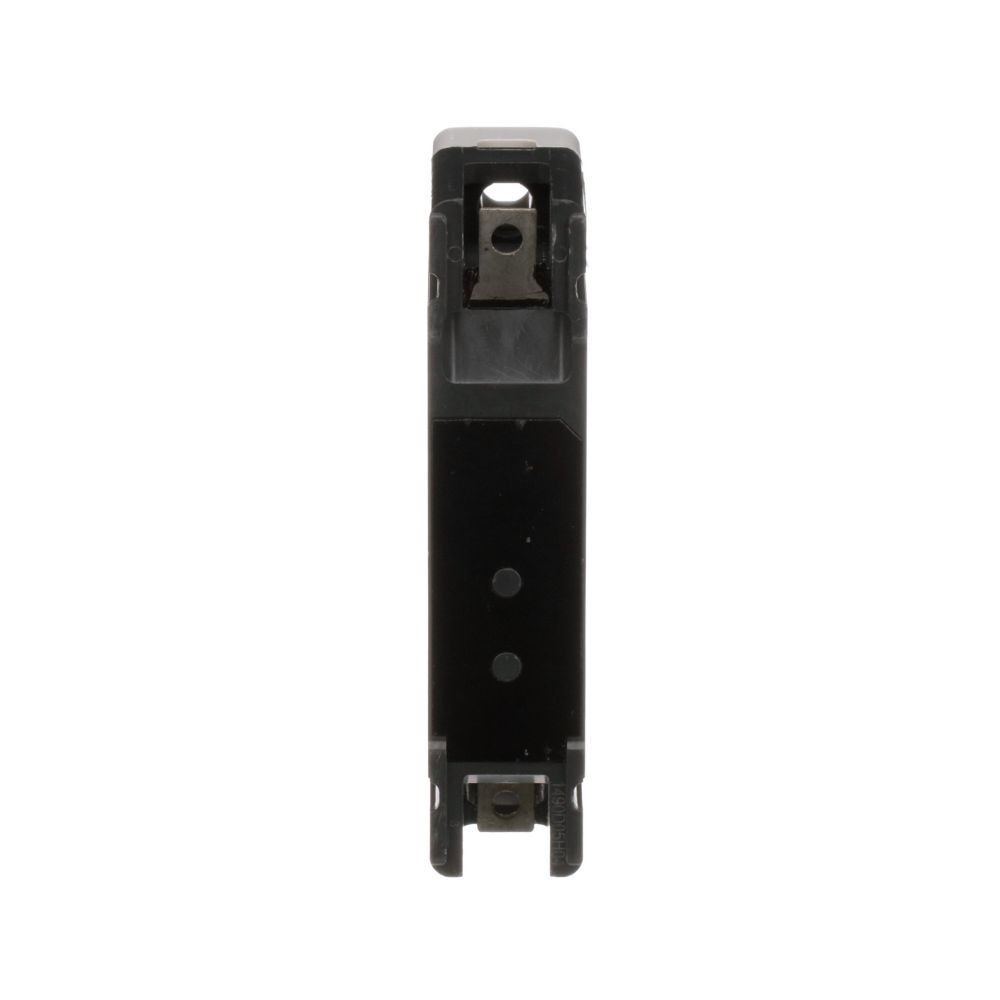

PDG21M0040TFFJ is a Cutler Hammer Power Defense molded case circuit breaker rated for 40 amps, 600 volts, and single-pole configuration.

This circuit breaker features a Frame 2 design with a thermomagnetic (T-M) fixed-fixed trip unit, providing reliable protection with a 65kA interrupt rating at 480V and 35kA at 600V. It supports standard line and load terminals with feed-thru mounting and complies with UL, CSA, IEC, and CCC certifications. The breaker measures 152.4 mm in height, 88.9 mm in depth, and 35.1 mm in width, weighing approximately 2.041 kg.

Key Specifications
• Amperage: 40 A
• Voltage Rating: 600 Vac max
• Number of Poles: 1 (Single Pole)
• Interrupt Rating: 65 kAIC at 480 Vac, 35 kAIC at 600 Vac
• Frame: 2
• Trip Unit: Thermomagnetic (T-M) Fixed-Fixed
• Mounting Type: Feed-Thru
• Terminals: Standard Line and Load
• Certifications: UL, CSA, IEC, CCC
• Dimensions (H x D x W): 152.4 mm x 88.9 mm x 35.1 mm
• Weight: 2.041 kg
• Series: Power Defense

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG21M0040TFFJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 40
• Phase : 1
• Poles : 1
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679218549
• GTIN : 00786679218549
• Country of Origin : Dominican Republic
• Dimensions : 88.9 mm x 152.4 mm x 35.1 mm (Length/Depth x Height x Width)
• Weight : 4.55143
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
