Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG21M0035TFFJ

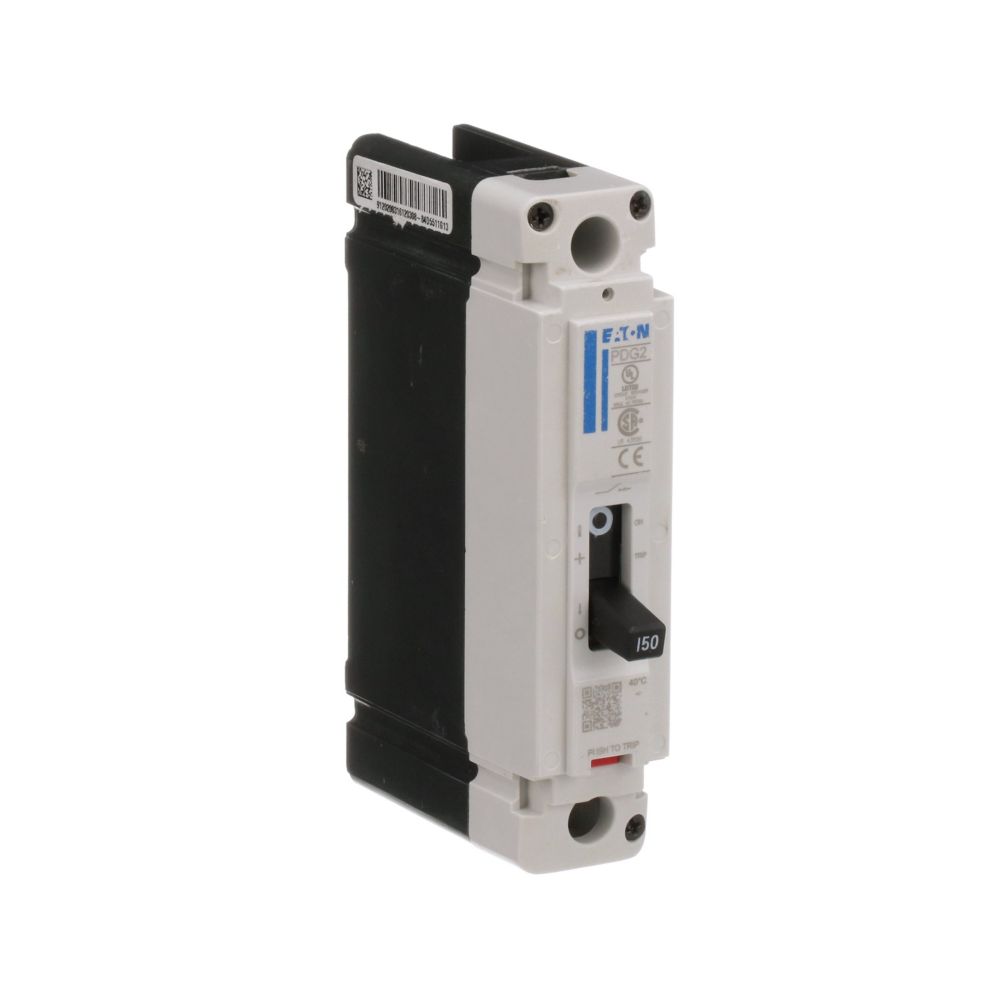

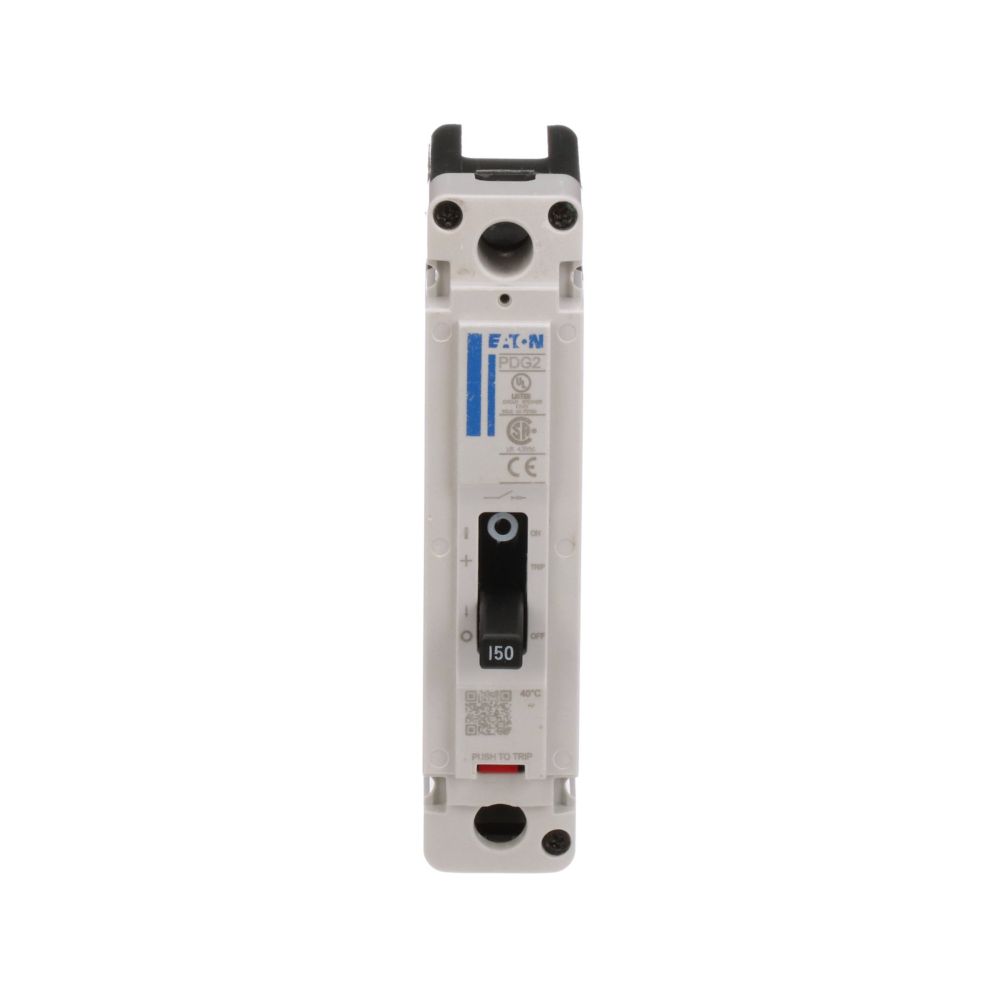

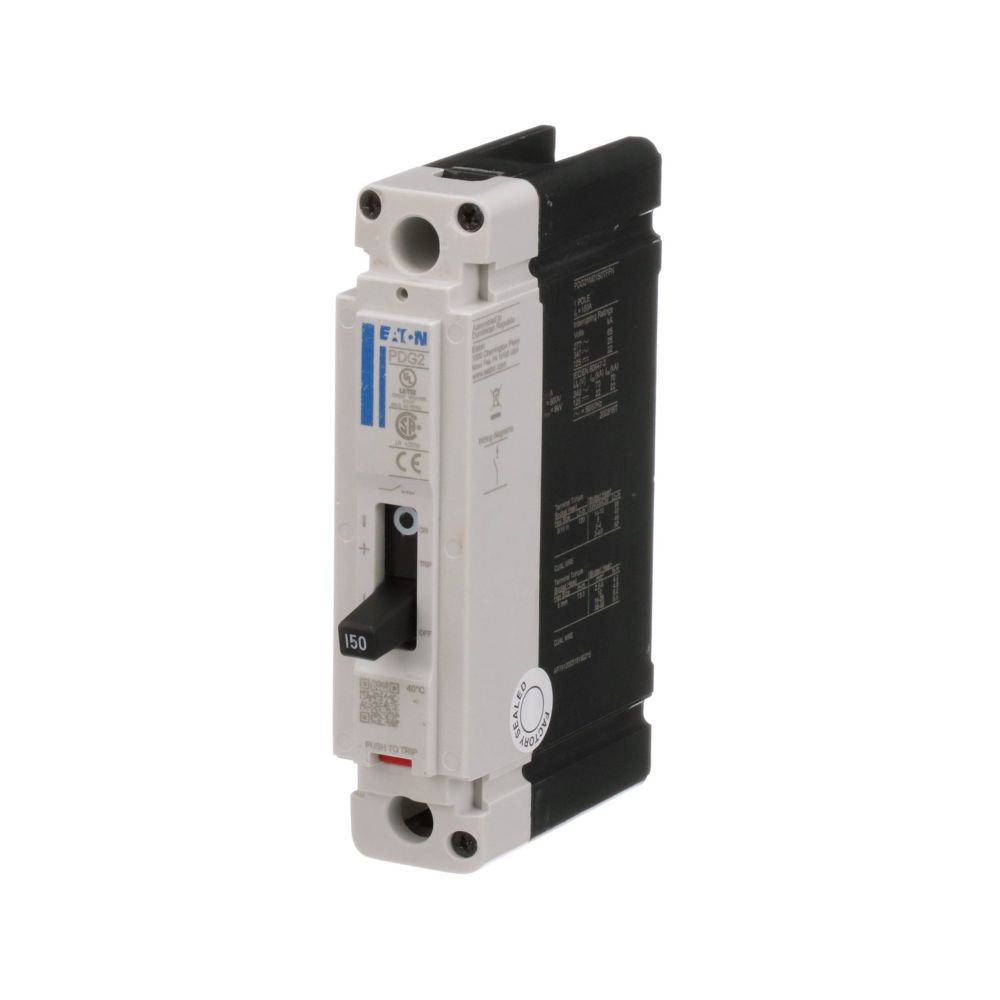

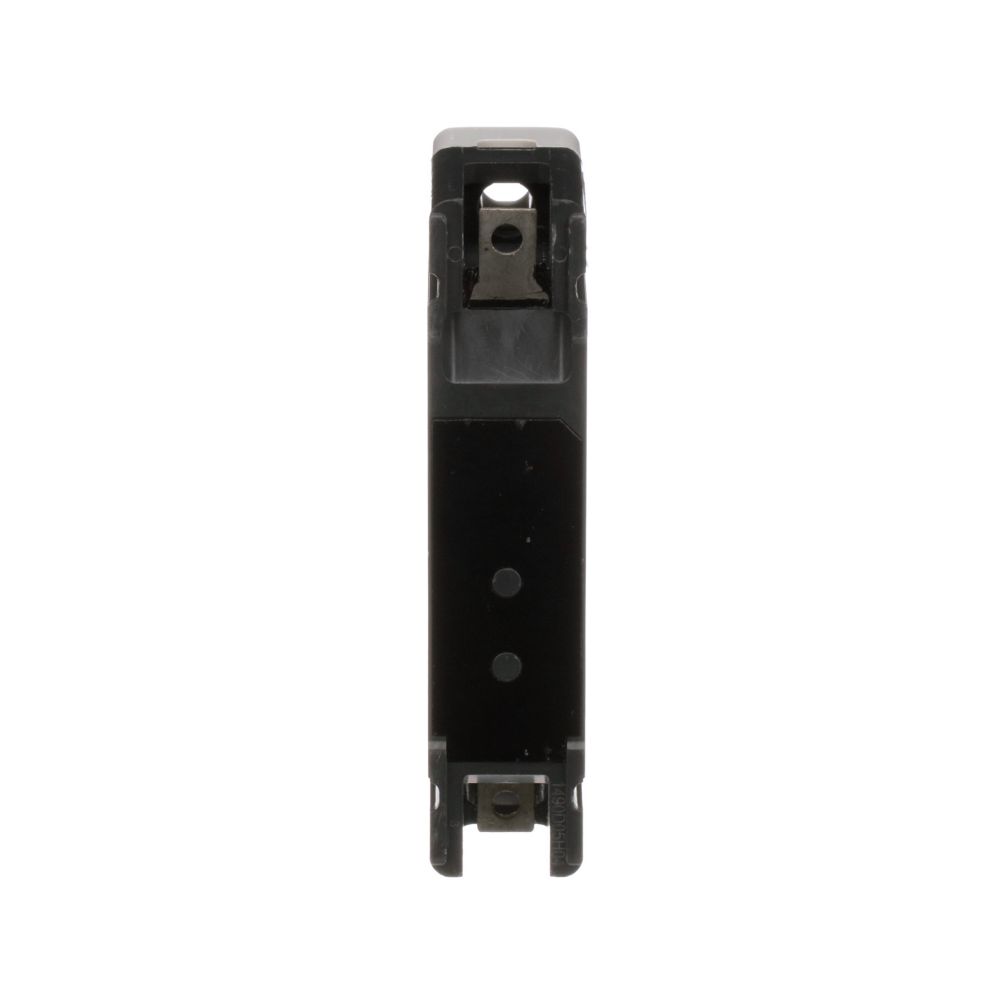

PDG21M0035TFFJ is a Cutler Hammer molded case circuit breaker designed for reliable power distribution protection.This Eaton Power Defense series breaker features a 35 ampere rating, 600 volt AC maximum voltage, and single-pole configuration. It uses a T298 trip unit type with a frame 2 design, providing a 65 kA interrupt rating at 480 volts. The breaker is feed-thru mounted and globally rated with UL, CSA, IEC, and CCC certifications.
- Key Specifications
- Amperage: 35 A
- Voltage Rating: 600 Vac
- Poles: 1
- Mounting Type: Feed-Thru
- Interrupt Rating: 65 kA at 480 V
- Series/Frame: Power Defense Frame 2
- Trip Unit: T298
- Certifications: UL, CSA, IEC, CCC
- Part Number: PDG21M0035TFFJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 35
- Phase : 1
- Poles : 1
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 786679300756
- GTIN : 00786679300756
- Country of Origin : Dominican Republic
- Dimensions : 88.9 mm x 152.4 mm x 35.1 mm (Length/Depth x Height x Width)
- Weight : 4.55143
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
