PDG21M0020TFFL - Cutler Hammer Eaton 20A 600VAC 1-Pole Molded Case Circuit Breaker Frame 2 Thermal Magnetic

PDG21M0020TFFL

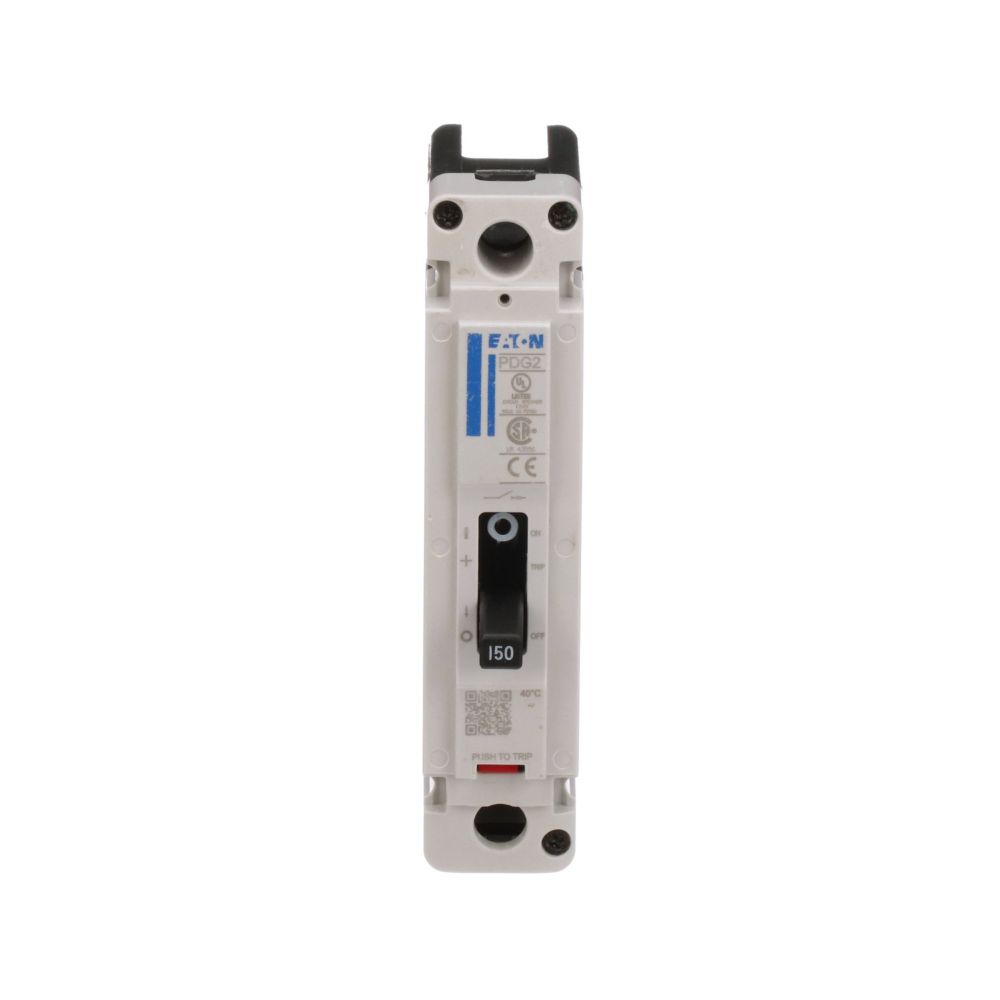

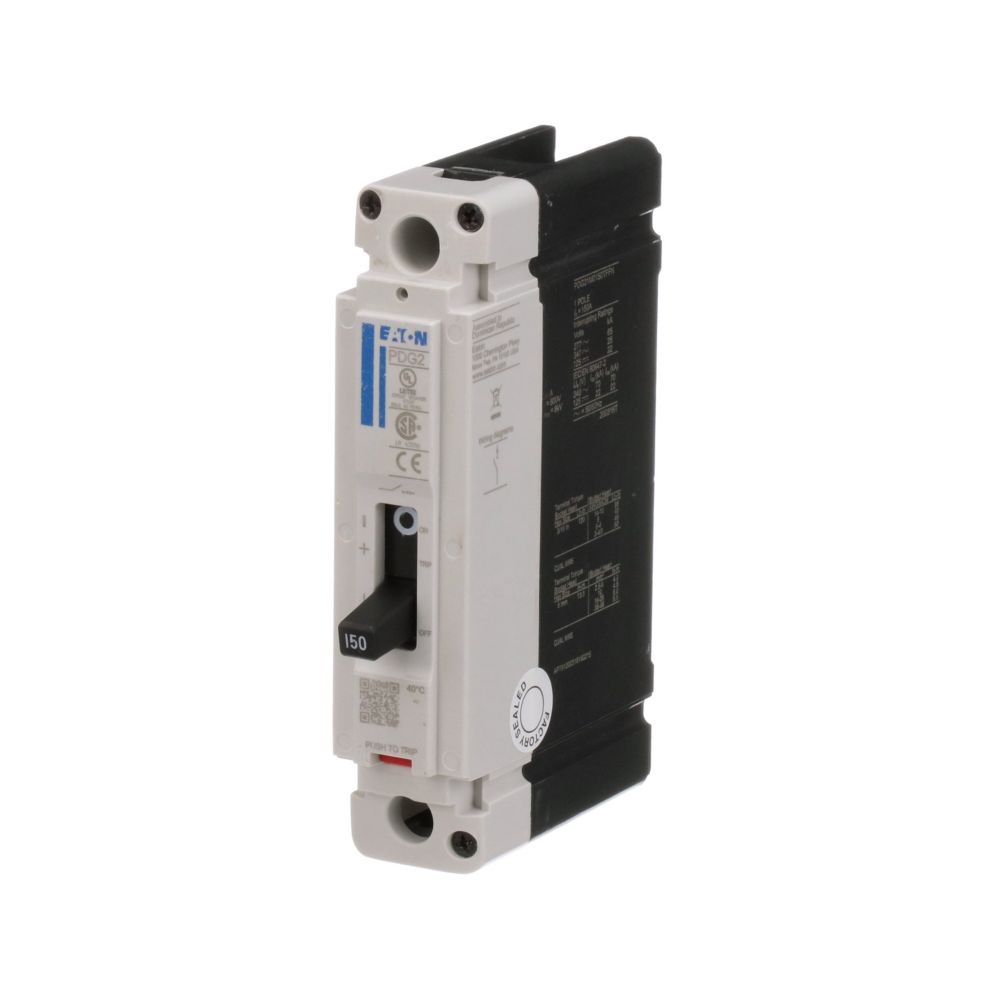

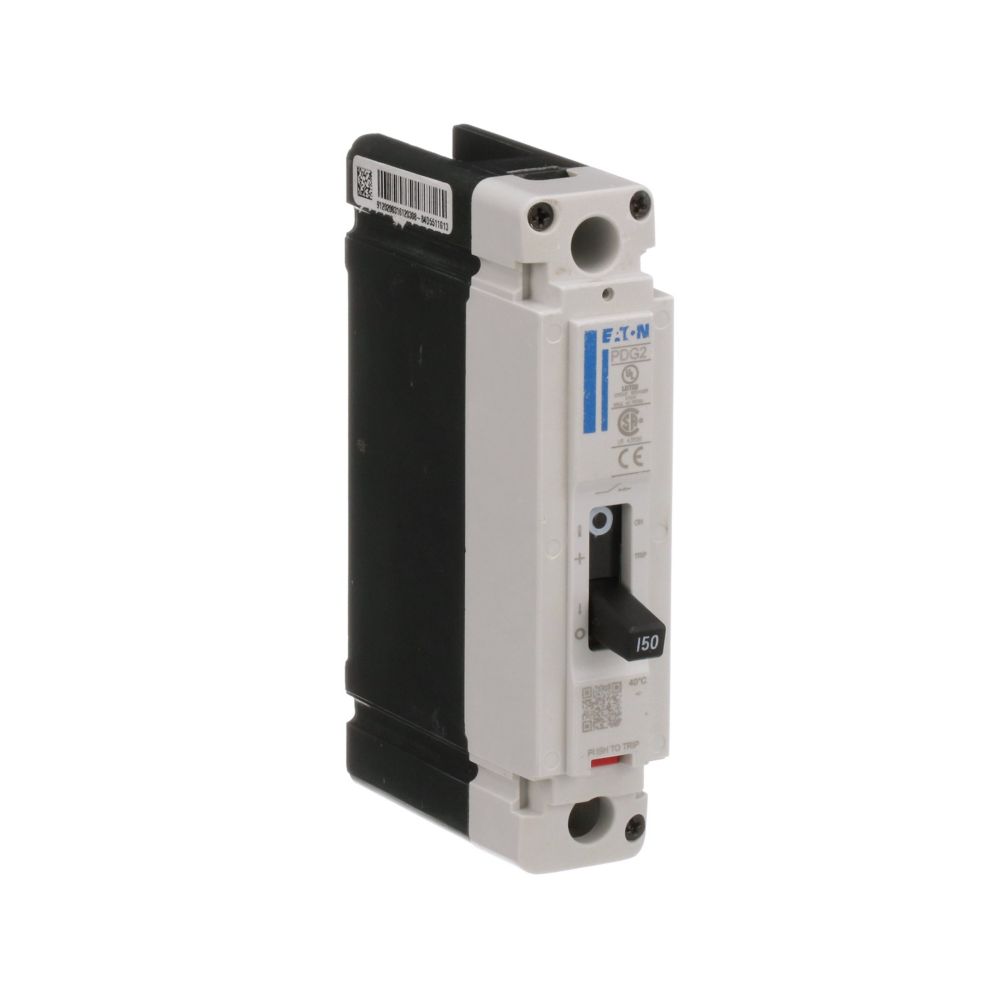

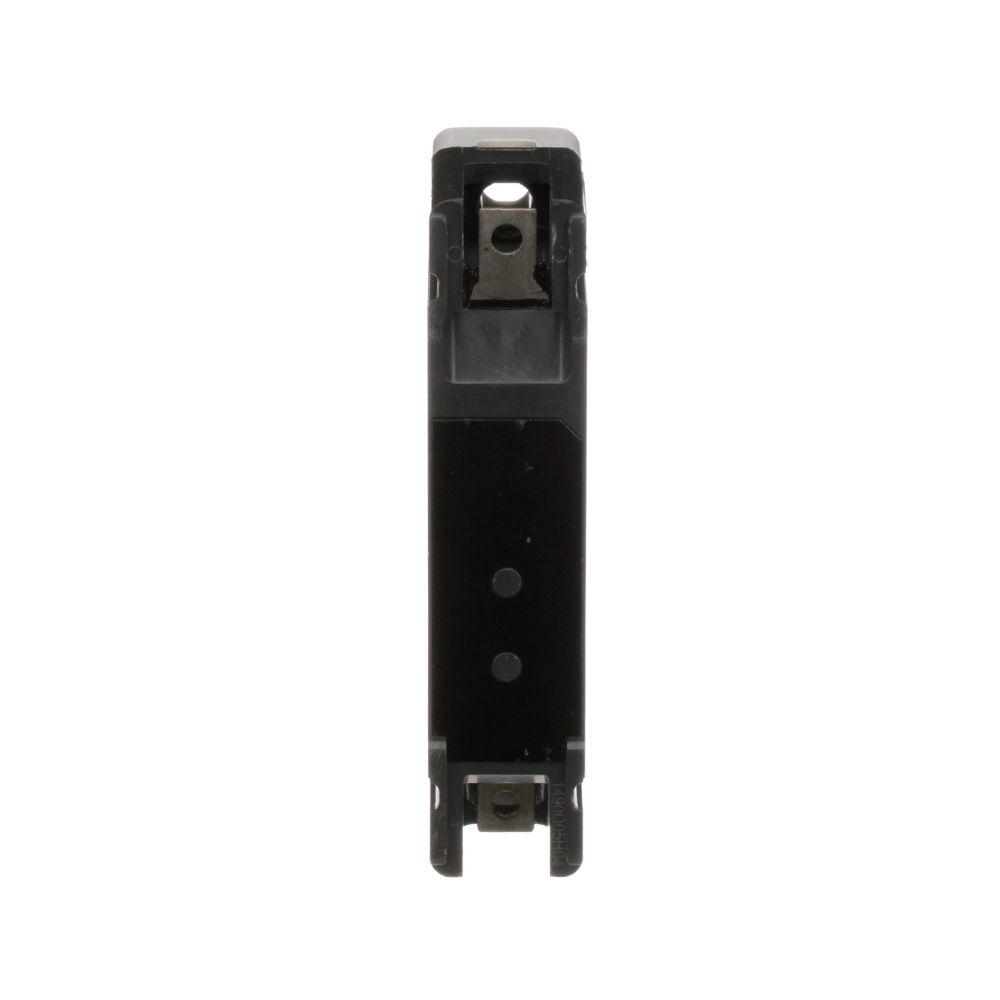

PDG21M0020TFFL is a Cutler Hammer Eaton Power Defense molded case circuit breaker with a 20 amp, 600 VAC rating and single pole configuration.This circuit breaker features a Frame 2 design with thermal magnetic protection and a 65kA interrupting rating at 480V. It includes long-time and instantaneous trip functions (LI) and uses a bolt-on connection type suitable for load side lug terminals. The breaker is globally rated and certified to UL, CSA, IEC, and CCC standards.

• Manufacturer: Cutler Hammer Eaton
• Part Number: PDG21M0020TFFL
• Amperage: 20A
• Voltage Rating: 600 VAC
• Poles: 1
• Frame Type: Power Defense Frame 2
• Interrupt Rating: 65kA at 480V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous (LI) functions
• Connection Type: Bolt-On
• Certifications: UL, CSA, IEC, CCC
• Phase: Single Phase
• Protection Type: Thermal Magnetic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG21M0020TFFL
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679921548
• GTIN : 00786679921548
• Country of Origin : Dominican Republic
• Dimensions : 9.6 in x 2 in x 5.3 in (Length/Depth x Height x Width)
• Weight : 1.85 lb
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
