Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG21F0015TFFL

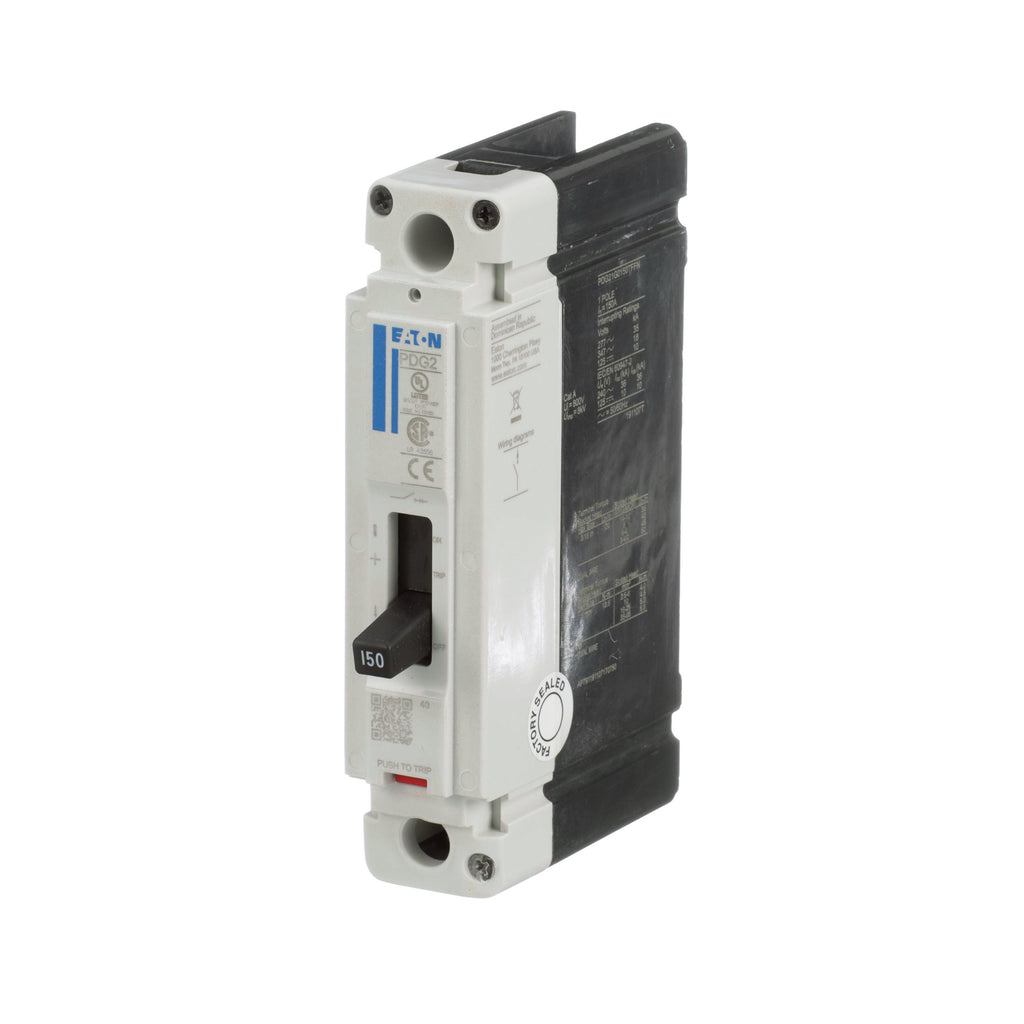

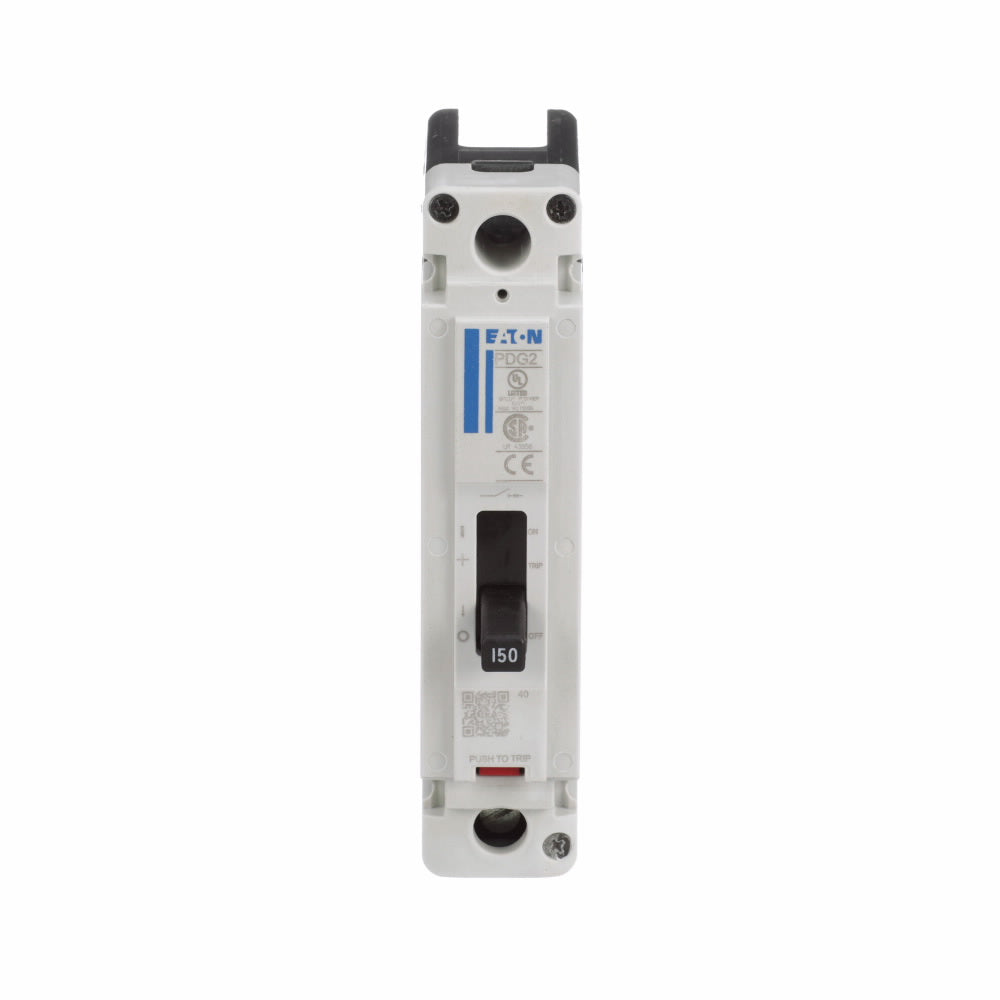

PDG21F0015TFFL is a Cutler Hammer Power Defense molded case circuit breaker designed for reliable protection in demanding electrical applications.
This single-pole breaker features a thermal magnetic trip unit, globally rated for 600V AC, and is part of the PD Series with Frame 2 construction. It is DIN rail mounted for easy installation and offers a high interrupting capacity for enhanced safety.
-
Key Specifications
- Amperage: 15A
- Voltage: 600V AC
- Poles: 1
- Mounting Type: DIN Rail
- Interrupt Rating: 25kA at 480V AC
- Series/Frame: PD Series, Frame 2
- Trip Unit: Thermal Magnetic
- Certifications: RoHS Compliant
- Depth: 88.9 mm
- Height: 152.4 mm
- Width: 35.1 mm
- Weight: 2.041 kg
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: PDG21F0015TFFL
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long Time and Instantaneous Trip
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679927700
- GTIN : 00786679927700
- Country of Origin : Dominican Republic
- Dimensions : 88.9 mm x 152.4 mm x 35.1 mm (Length/Depth x Height x Width)
- Weight : 4.55143
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
