PDG12C0025TFFJ - Cutler Hammer 25A 600V 2 Pole 18kA Interrupt Rating Power Defense Molded Case Circuit Breaker, Frame 1, Fixed Mount, Standard Trip Unit

PDG12C0025TFFJ

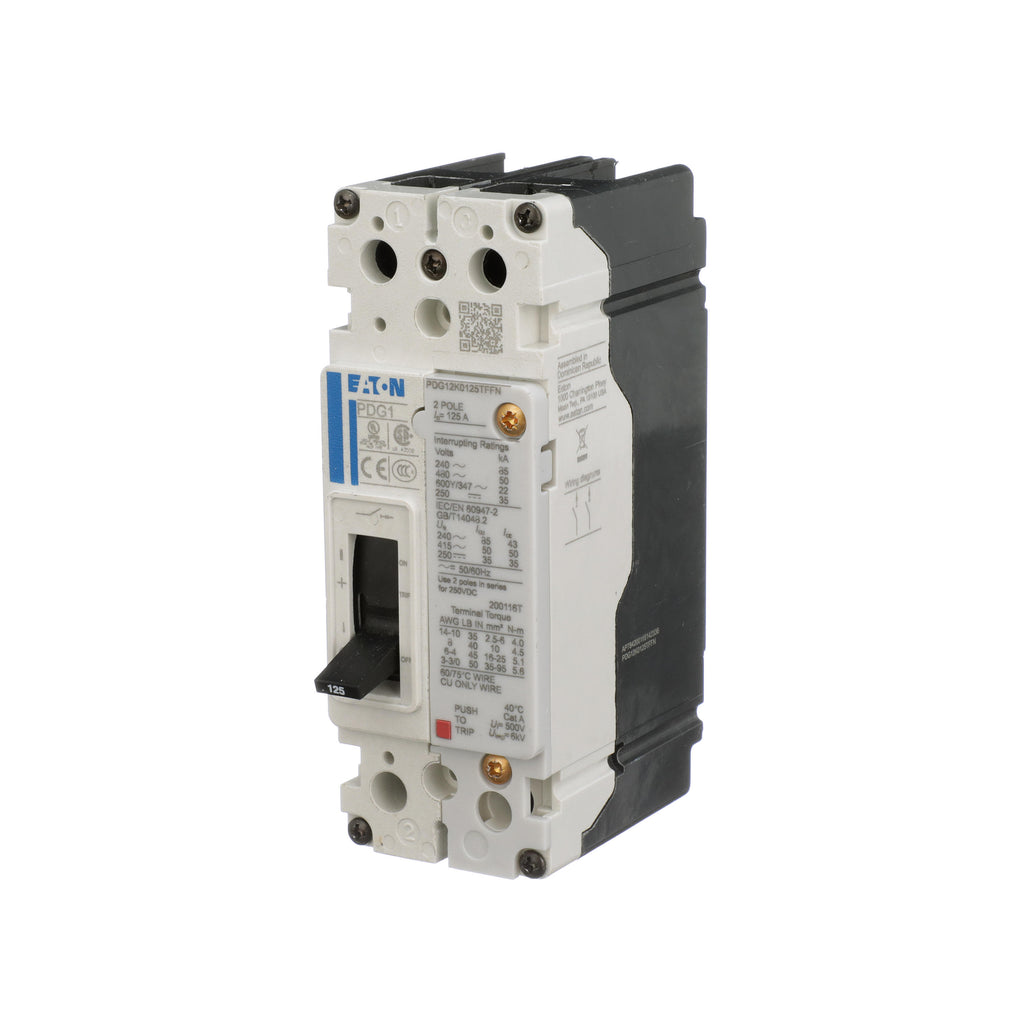

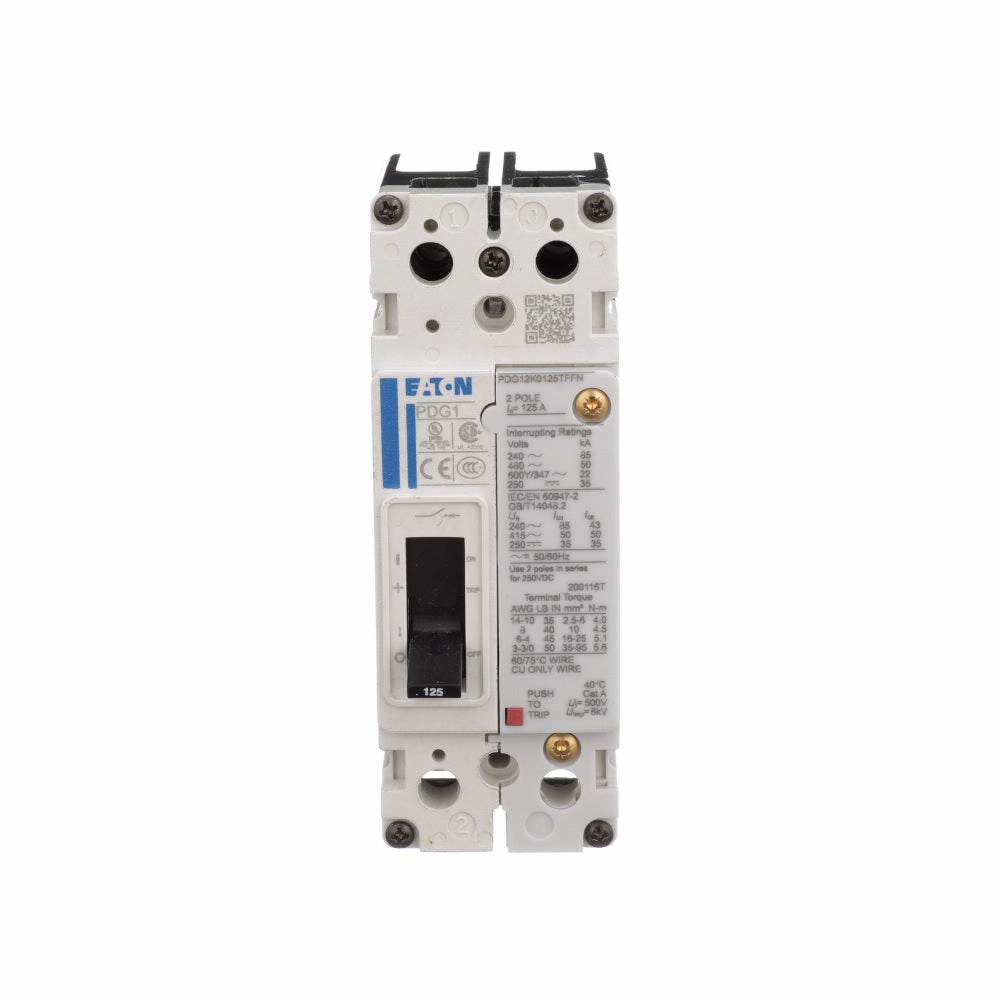

PDG12C0025TFFJ is a Cutler Hammer Power Defense molded case circuit breaker designed for reliable power distribution and superior arc flash safety.

This globally rated, two-pole circuit breaker offers robust protection with a 25 amp rating, 600V voltage, and an 18kA interrupt rating at 480V. It features a Frame 1 design, fixed mounting, and a standard trip unit for consistent performance in commercial and industrial applications.

Key Specifications
• Part Number: PDG12C0025TFFJ
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 25A
• Voltage: 600V
• Poles: 2
• Mounting Type: Fixed
• Interrupt Rating: 18kA @ 480V
• Series/Frame: PD1 Global, Frame 1
• Trip Unit: Standard
• Terminals: Standard line and load
• Certifications: Globally rated (specific certifications not listed)
• Dimensions: 76 mm (L) x 139.7 mm (H) x 50.8 mm (W)
• Weight: 0.907 kg

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG12C0025TFFJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679297254
• GTIN : 00786679297254
• Country of Origin : Dominican Republic
• Dimensions : 76 mm x 139.7 mm x 50.8 mm (Length/Depth x Height x Width)
• Weight : 2.02261
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
