Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
PD63F160

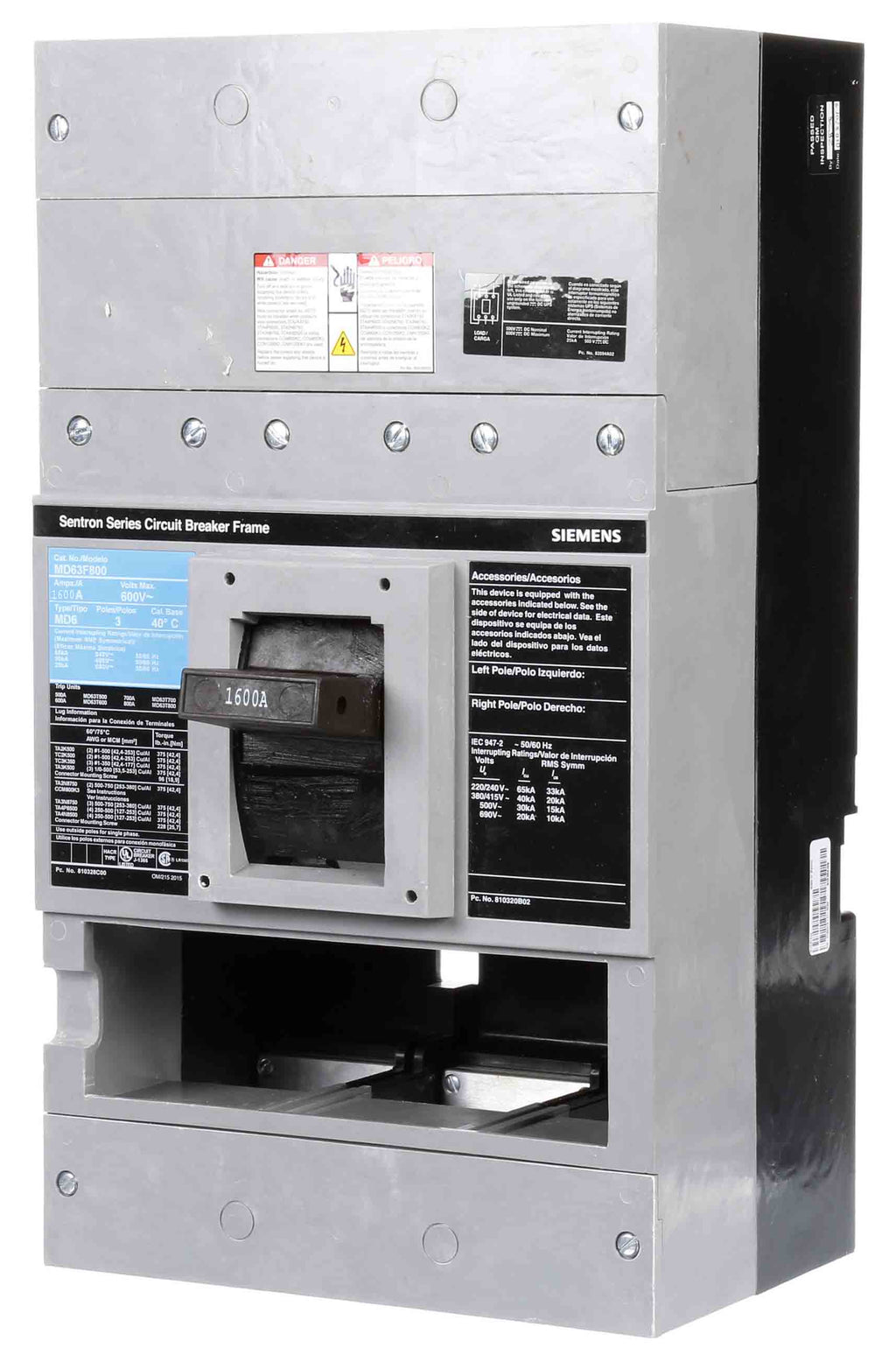

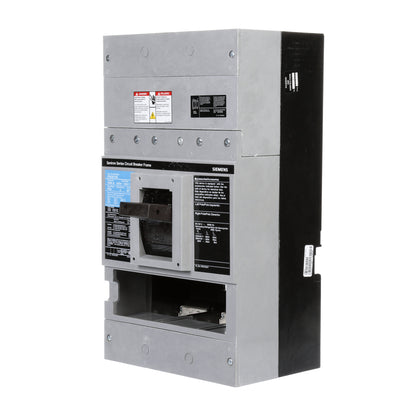

PD63F160 is a Siemens 3-pole circuit breaker frame rated for 1600 amperes and 600 volts with bolt-on mounting.This Siemens PD series circuit breaker frame features a fixed thermal magnetic trip unit, suitable for 3-phase applications. It supports a high interrupting rating of up to 65kA at 240VAC and 50kA at 480VAC, meeting UL 489 and IEC 60947-2 standards. The breaker includes line and load side lugs compatible with wire ranges from 300 to 600 kcmil copper/aluminum conductors. It is designed for industrial and commercial power distribution with a compact size of 9" W x 6.19" D x 16" H.
- Key Specifications
- Manufacturer: Siemens
- Series/Frame: PD
- Amperage: 1600A
- Voltage Rating: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 65kA @ 240VAC, 50kA @ 480VAC, 25kA @ 600VAC
- Trip Unit: Fixed Thermal Magnetic
- Certifications: UL Listed, IEC Rated
- Wire Range: 300-600 kcmil CU/AL
- Dimensions: 9" W x 6.19" D x 16" H
Specifications
- Part Number: PD63F160
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : PD
- Voltage : 600
- Amperage : 1600
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : PD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643226159
- GTIN : 00783643226159
- Country of Origin : Mexico
- Weight : 51.35
