Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description

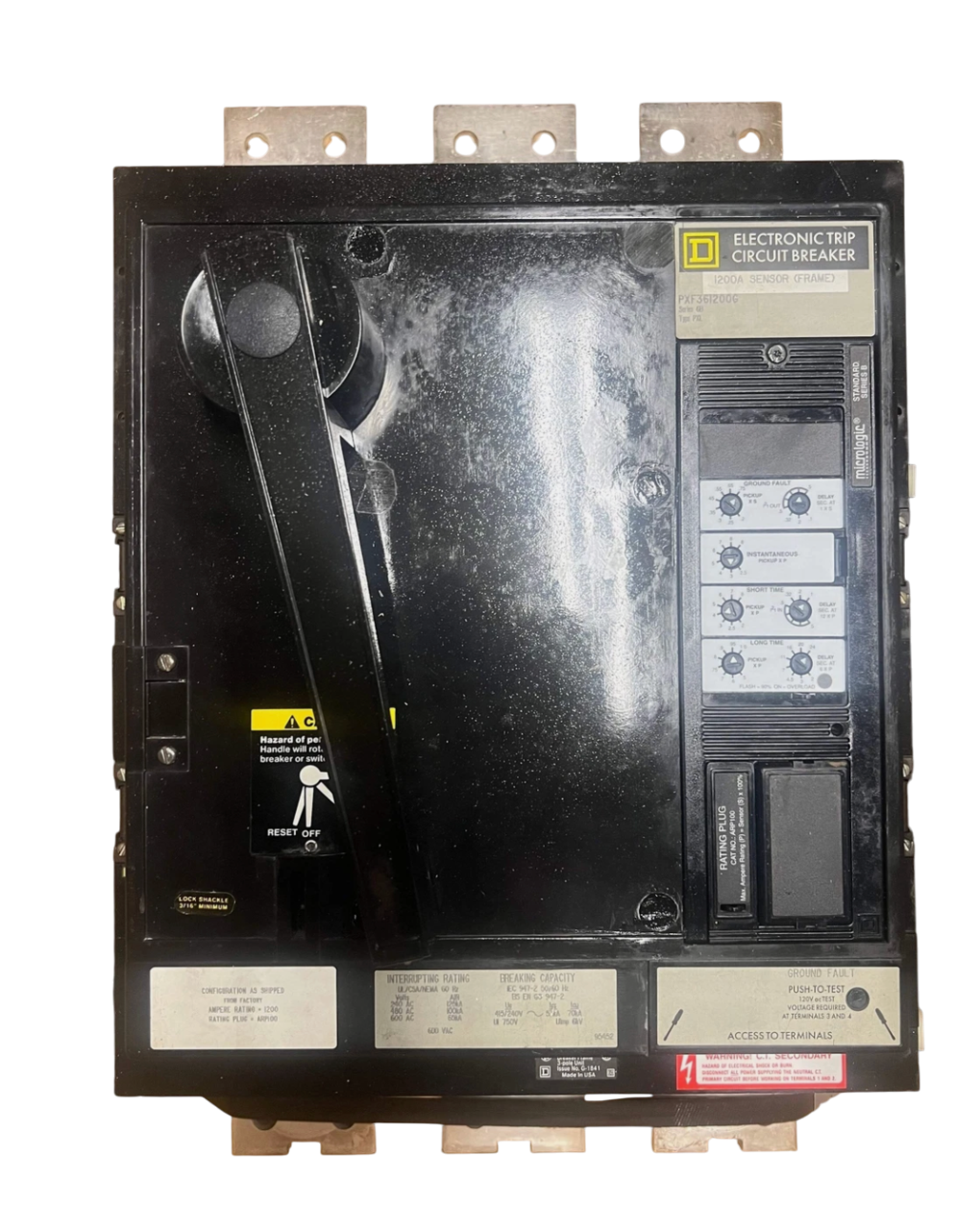

PCP36800
PCP36800 is a high-performance molded case circuit breaker from Square D, designed for reliable protection in industrial and commercial power distribution systems. This unit features a robust 800A current rating, 3-pole configuration, and is rated for 600VAC operation with a 25kA interrupt rating at 600VAC. The breaker is built on the M-frame platform and includes the ET 1.0 electronic trip unit for precise protection and monitoring. It is designed for unit mount lug installation, making it suitable for a wide range of panelboard and switchgear applications. This Square D PCP36800 circuit breaker is engineered for durability and ease of installation, with standard mounting holes and handle locations for compatibility with existing systems. The ET 1.0 trip unit provides basic electronic protection functions, ensuring reliable operation in demanding environments. The breaker is rated for use in systems up to 600VAC and is suitable for applications requiring high interrupt capacity.
- 800A rated current
- 3-pole configuration
- 600VAC maximum voltage
- 25kA interrupt rating at 600VAC
- M-frame design
- ET 1.0 electronic trip unit
- Unit mount lug mounting type
- Standard mounting holes and handle locations
- Compatible with Square D PCP series panels
- Designed for industrial and commercial power distribution
- Robust construction for demanding environments
- Easy installation and replacement
Specifications
- Part Number: PCP36800
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : PCP Series
- Type : PCP
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : P Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 762179020998
- Weight : 100
