Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Tap Box
Description
PBTB506G

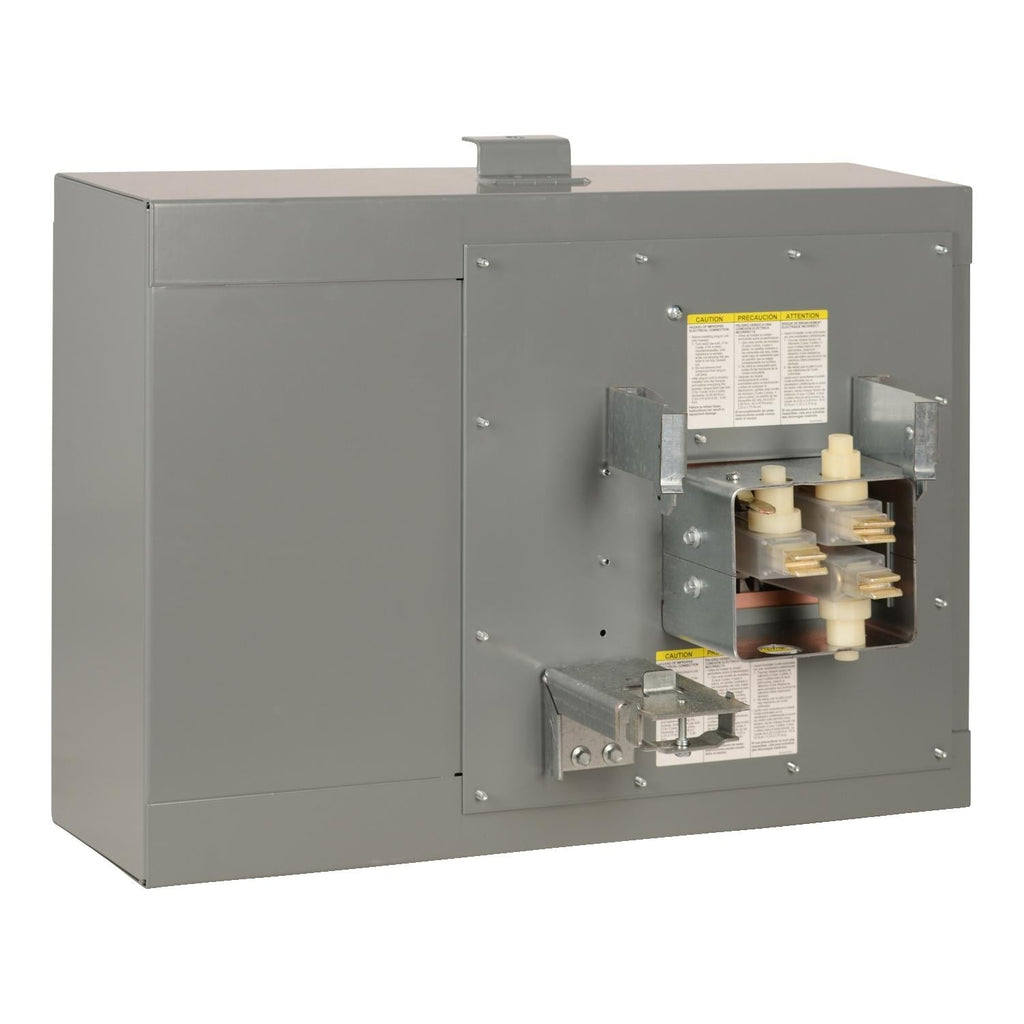

PBTB506G is a 3-phase, 4-wire plug-in tap box designed for use with Square D I-Line busway systems. This tap box provides a reliable connection for power distribution in commercial and industrial applications, supporting both aluminum and copper busway configurations.Engineered for versatility, the PBTB506G features a plug-in mounting style, integral ground bus, and mechanical lugs for secure power connections. It is rated for 600A maximum current and 600VAC, making it suitable for high-capacity power distribution needs. The aluminum enclosure ensures durability and compatibility with I-Line series bus ducts.
- Part Number: PBTB506G
- Manufacturer: Square D
- Series: I-Line
- Mounting Type: Plug-In
- Amperage: 600A (also compatible with 400A busway)
- Voltage: 600VAC
- Phase: 3-Phase
- Wires: 4-Wire (3 Phase + Ground)
- Enclosure Material: Aluminum
- Grounding: Integral Ground Bus
- Certifications: UL Listed, CSA Certified
- Standards: RoHS Compliant
Specifications
- Part Number: PBTB506G
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Tap Box
- Family : I-Line
- Type : PBTB
- Voltage : 600
- Amperage : 600
- Phase : 3
- Wire : 4
Product Data
- UPC : 785901787198
- GTIN : 00785901787198
- Country of Origin : United States
- Dimensions : 18.4 in (468 mm) x 25.9 in (659 mm) x 7.8 in (197 mm) (Height x Width x Depth)
- Weight : 62.001
- Certification : CSA - UL
