Description
PBQ4640GGSC

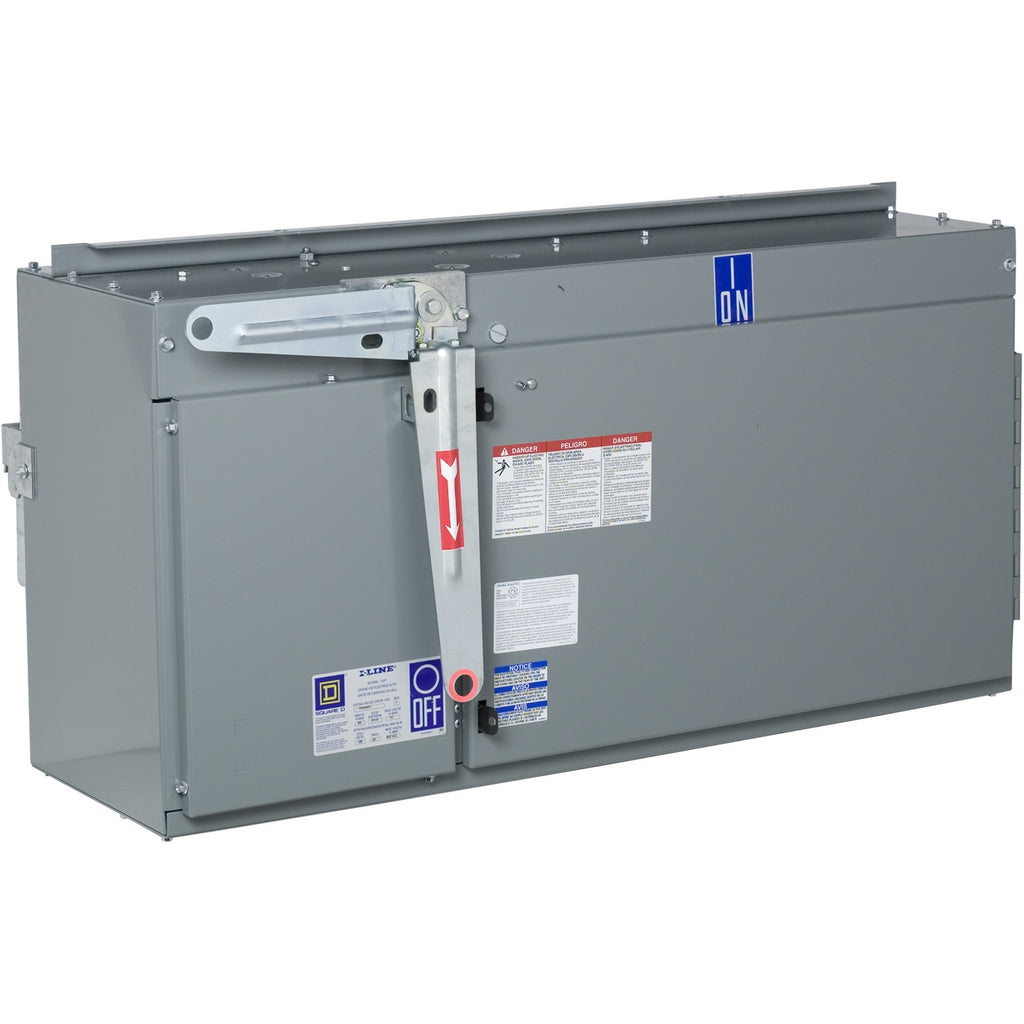

PBQ4640GGSC is a 400A, 600V fusible bus plug designed for use with Square D I-Line busway systems. This 3-pole unit provides reliable power distribution in commercial and industrial applications, featuring a bolt-on mounting style for secure installation. The PBQ4640GGSC is compatible with I-Line and I-Line II bus duct, offering a robust solution for branch circuit protection. It accepts Class H, K, and R fuses for flexible overcurrent protection and includes a ground connection for safety.
- Manufacturer: Square D
- Part Number: PBQ4640GGSC
- Amperage: 400A
- Voltage Rating: 600V
- Poles: 3
- Mounting Type: Bolt-On
- Series: I-Line
- Fusibility: Fusible (Class H, K, R)
- Wire: 4-Wire
- Interrupt Rating: 200kA @ 480V
- Standards: UL, CSA, RoHS
Specifications
- Part Number: PBQ4640GGSC
- Manufacturer : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PBQ
- Voltage : 600
- Amperage : 400
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H, K, R
- Wire : 4
Product Data
- UPC : 785901753315
- GTIN : 00785901753315
- Country of Origin : United States
- Dimensions : Height 20.94 in (532 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.01
- Certification : CSA C22.2 NO 27-UL LISTED FILE E22182
