Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PBLA36125

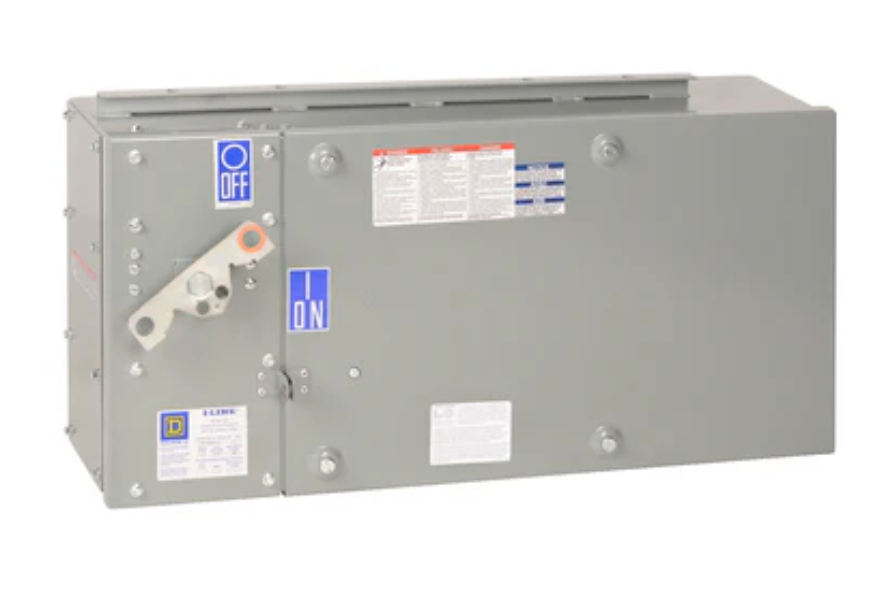

PBLA36125 is a 125A, 600V, 3-phase, 3-wire breaker type bus plug designed for use with Schneider Electric I-Line busway systems. This unit provides reliable circuit protection and easy installation for industrial and commercial power distribution applications. The PBLA36125 features a robust H-frame breaker and is rated for 125 amps and 600 volts AC. It is engineered for use in 3-phase, 3-wire systems and offers a compact, durable design for efficient power distribution. The unit is compatible with standard I-Line busway configurations and is suitable for a wide range of electrical environments.
- 125A current rating
- 600VAC voltage rating
- 3-phase, 3-wire configuration
- H-frame breaker
- Breaker type bus plug
- Compatible with I-Line busway
- Thermal-magnetic trip unit
- Interrupting rating: 50kA
- Mounting: Plug-in for I-Line busway
- UL listed
Specifications
- Part Number: PBLA36125
- Manufacturer : Schneider Electric
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PBLA
- Voltage : 600
- Amperage : 125
- Phase : 3
- AIC rating : 30kA@480V
- Wire : 3
Product Data
- Weight : 150
