Product Info
- Manufacturer:Westinghouse
- Sub-Category:Insulated Case
Description
PB32500F

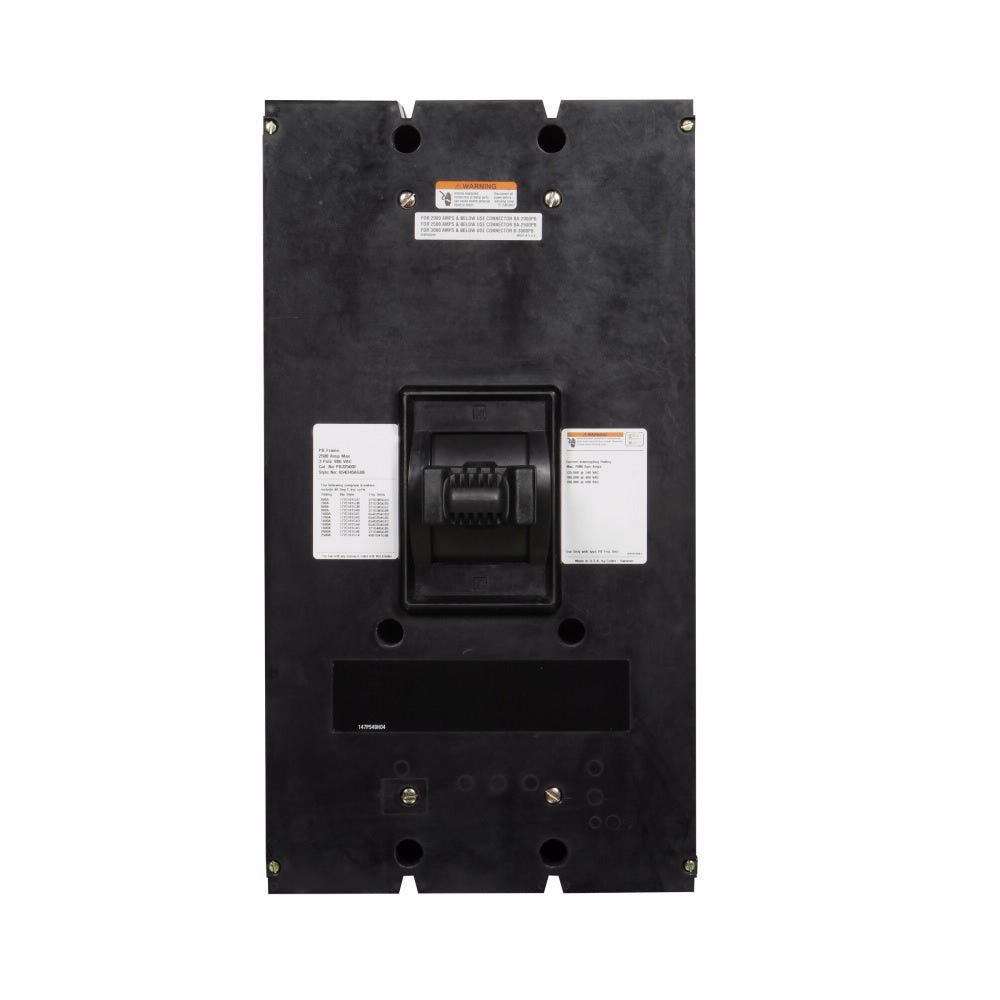

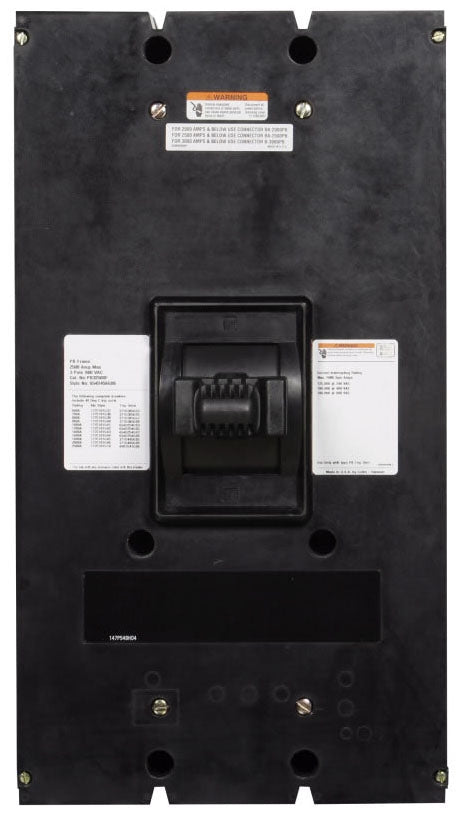

PB32500F is a Westinghouse 3-pole molded case circuit breaker rated for 2500 amps and 600 volts AC, designed for reliable protection in industrial and commercial power distribution systems.This PB series circuit breaker features a bolt-on mounting configuration and is engineered for high interrupting capacity, making it suitable for demanding electrical environments. The unit includes an adjustable thermal magnetic trip unit for precise circuit protection and is compatible with standard PB series enclosures.
- Part Number: PB32500F
- Manufacturer: Westinghouse
- Series/Frame: PB Series
- Amperage Rating: 2500A
- Voltage Rating: 600V AC
- Number of Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 200kA at 600V
- Interrupt Rating: 100kA at 480V
- DC Voltage Rating: 250V DC
- Trip Unit Type: Adjustable Thermal Magnetic
- Connection Type: Rear Connection
Additional Information
Frame only, Trip unit and lugs not included.
Specifications
- Part Number: PB32500F
- Manufacturer : Westinghouse
- Brand : Westinghouse
- Category : Circuit Breaker
- Item Subcategory : Insulated Case
- Family : PB Series
- Type : PB
- Voltage : 600
- Amperage : 2500
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786679767825
- GTIN : 00786679767825
- Dimensions : 24.5 in x 15.5 in x 15.5 in (Length/Depth x Height x Width)
- Weight : 112
