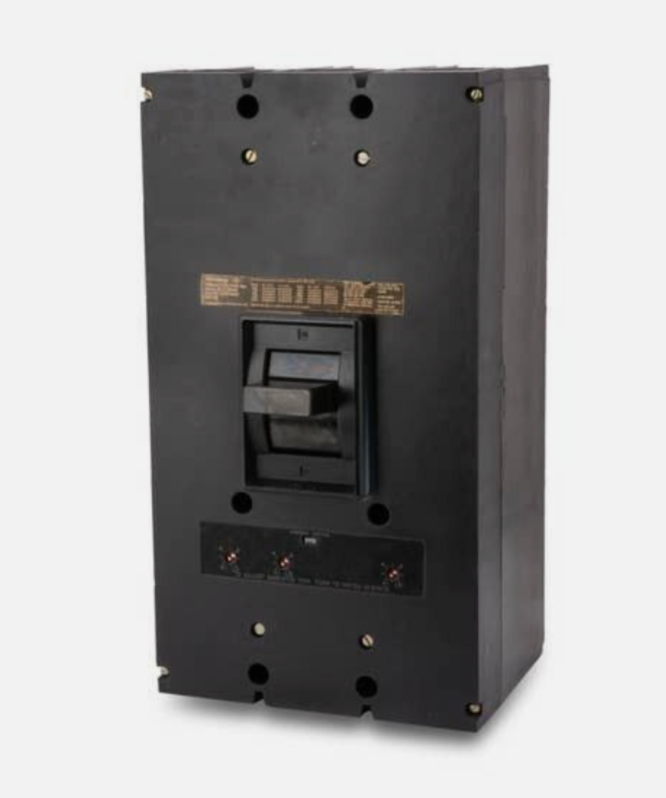

PB31600PRF - Eaton Cutler Hammer 1600A 600V 3-Pole Molded Case Circuit Breaker

PB31600PRF

PB31600PRF is a 3-pole molded case circuit breaker manufactured by Eaton under the Cutler Hammer brand, designed for industrial power distribution applications requiring high amperage capacity.

This TRI-PAC frame circuit breaker features a bolt-on mounting configuration with thermal magnetic trip protection. The unit is rated for 1600 amperes at 600 volts AC maximum, with an interrupt rating of 200 kA at 480V. It is supplied as a frame only, allowing for customizable trip unit installation to meet specific application requirements. The breaker is suitable for three-phase systems and provides reliable overcurrent protection in industrial and commercial settings.

• Part Number: PB31600PRF
• Manufacturer: Eaton Cutler Hammer
• Type: PB Molded Case Circuit Breaker
• Frame Style: TRI-PAC
• Amperage Rating: 1600A
• Voltage Rating: 600V AC
• Poles: 3
• Mounting: Bolt-On
• Trip Type: Thermal Magnetic
• Interrupt Rating: 200 kA at 480V
• Configuration: Frame Only

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Frame only, Trip unit and lugs not included.

Specifications

• Part Number: PB31600PRF
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Insulated Case
• Family : Tri-Pac
• Type : PB
• Voltage : 600
• Amperage : 1600
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786679767191
• GTIN : 00786679767191
• Country of Origin : United States
• Dimensions : 25.2 in x 15.3 in x 15.3 in (Length/Depth x Height x Width)
• Weight : 130
• Certification : UL 489
