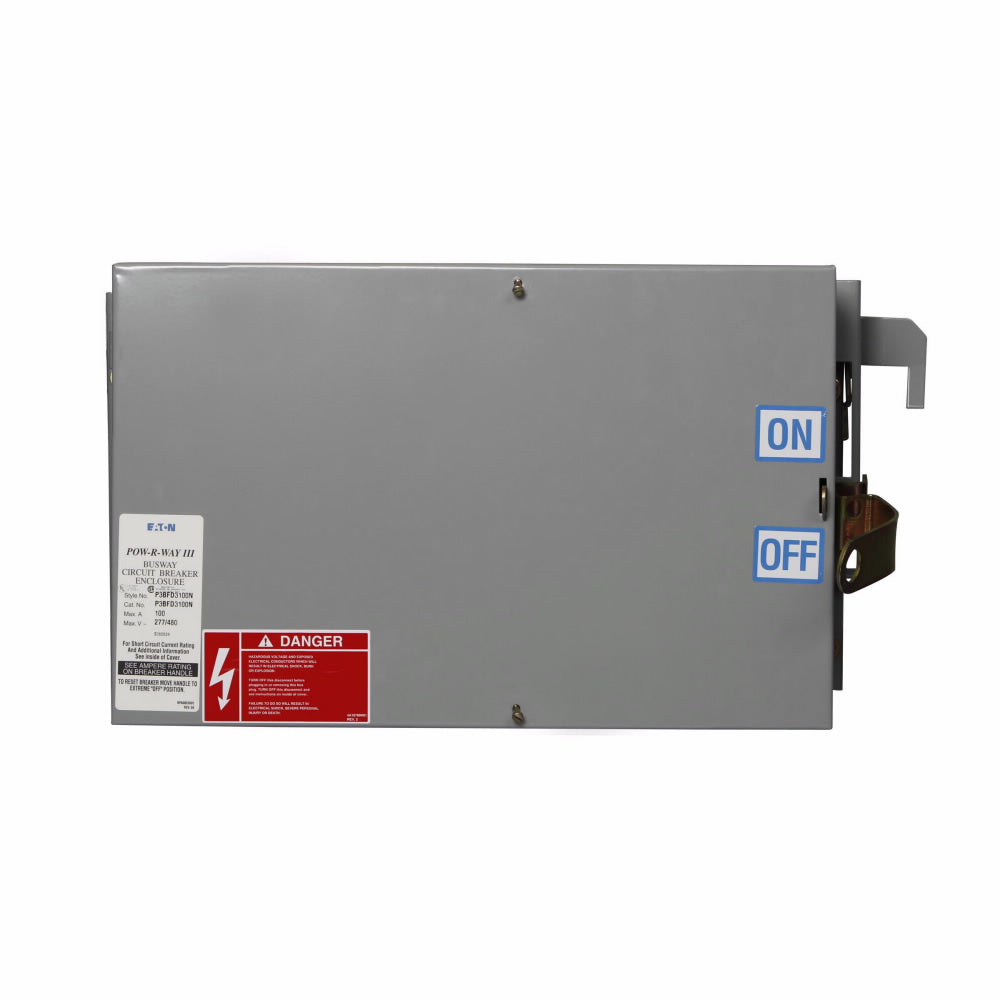

P3BHFD3100N - Cutler Hammer 100 Amp 600 Volt 3-Pole Bus Plug HFD Frame

P3BHFD3100N

This bus plug features a 100 Amp rating, 600 Volt maximum voltage, and a three-pole configuration. It uses the HFD circuit breaker frame (F Frame) and offers high interrupt ratings of 100 kAIC at 240 and 480 VAC, and 25 kAIC at 600 VAC. The unit includes 100% neutral and 50% integral or housing ground options. Its compact, lightweight aluminum housing allows for easier installation compared to traditional cable and conduit systems. The bus plug is polarized to prevent improper installation and is engineered for efficient energy use with lower voltage drop.

Key Specifications
• Amperage: 100 Amp
• Voltage: 600 VAC
• Poles: 3
• Frame Type: HFD (F Frame)
• Interrupt Rating: 100 kAIC at 240 VAC
• Interrupt Rating: 100 kAIC at 480 VAC
• Interrupt Rating: 25 kAIC at 600 VAC
• Neutral: 100%
• Grounding: 50% Integral or Housing Ground
• Mounting Type: Plug-in Busway

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: P3BHFD3100N
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Bus Plug
• Item Subcategory : Breaker Type
• Family : Pow-R-Way III
• Type : P3BHFD
• Voltage : 600
• Amperage : 100
• Phase : 3
• AIC rating : 65kA@480V
• Wire : 4
• Compatible Frames : HFD



Product Data

• UPC : 786683007672
• GTIN : 00786683007672
• Country of Origin : United States
• Dimensions : 12.36 in x 21.2 in x 5.43 in (Length/Depth x Height x Width)
• Weight : 25
• Certification : UL 857 ANSI IEEE Certified CSA Certified
