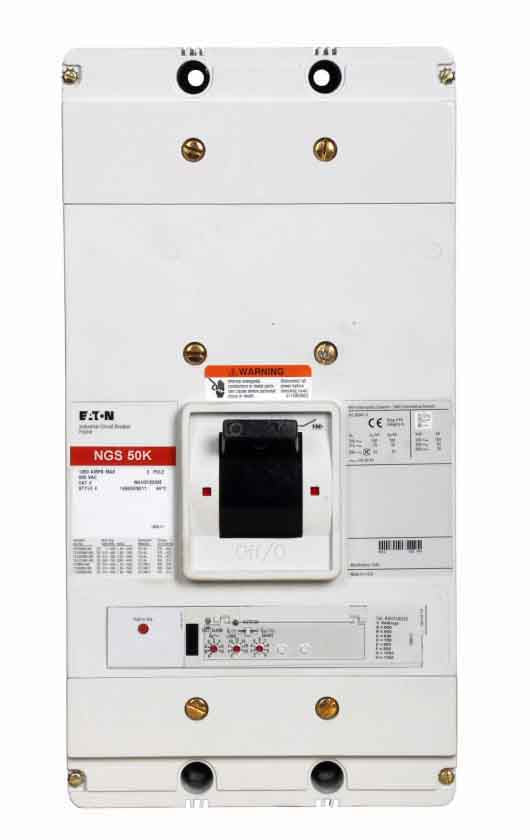

NGS312035E - Eaton Cutler Hammer Circuit Breaker 1200 A 3P 480 V

NGS312035E

NGS312035E is an Eaton Cutler Hammer Series G NG-frame molded case circuit breaker designed for high-capacity power distribution protection in industrial and commercial systems.This electronic LSG-trip breaker provides adjustable long, short, and ground fault protection at 1200 A for three-phase circuits up to 480 Vac with high interrupting capability.Key Specifications

• Part Number: NGS312035E
• Manufacturer: Cutler Hammer
• Type: Molded case circuit breaker
• Voltage: 480 V
• Amperage: 1200 A
• Phase: 3
• Poles: 3
• Interrupt Rating: 50 kA
• Frame Size: NG-frame 1200 A
• Breaker Type: Series G NG-frame electronic LSG trip
• Frequency: 50-60 Hz
• Connection: Bolt-on / imperial tapped line and load terminals
• Trip Type: Digitrip 310+ electronic LSG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: NGS312035E
• Manufacturer : Eaton Cutler Hammer
• Brand : Eaton Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G NG-frame molded case circuit breaker
• Type : Molded case circuit breaker
• Voltage : 480 V
• Amperage : 1200 A
• Phase : 3
• Poles : 3
• AIC rating : 50 kA
• Connection : Bolt-on, imperial tapped line and load terminals
• Functions : LSG - Long-Time, Short-Time and Ground Fault
• Terminal Connection : Line/Load Lug
• Frame Size : NG-frame 1200 A
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 500 MCM
• Breaker Type : Series G NG-frame electronic LSG trip
• Hz : 50-60 Hz
• Protection : Solid State
• Phase Connection : ABC
• Trip Type : Digitrip 310+ electronic LSG

Product Data

• UPC : 786685379425
• GTIN : 00786685379425
• Country of Origin : United States
• Dimensions : 6 in x 9 in x 9 in (Length/Depth x Height x Width)
• Weight : 48
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
• Wire Size : 4 AWG, 500 MCM
