NGS312033E - Cutler Hammer Circuit Breaker 1200 A 480 Vac 3P

NGS312033E

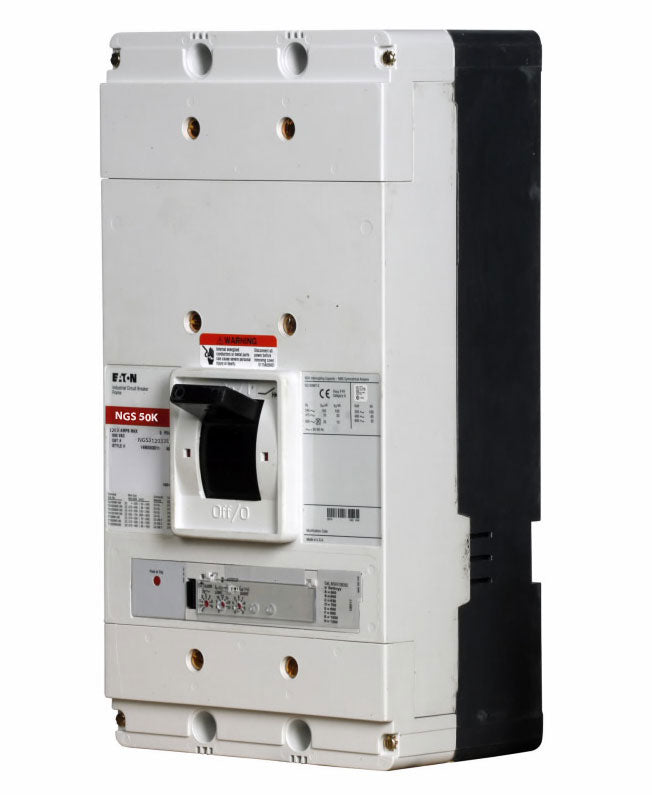

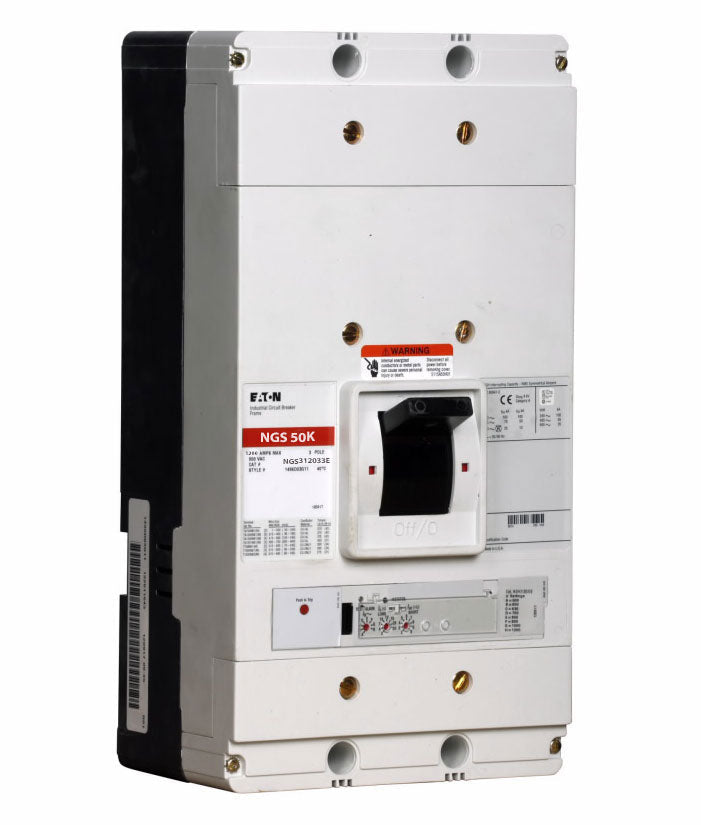

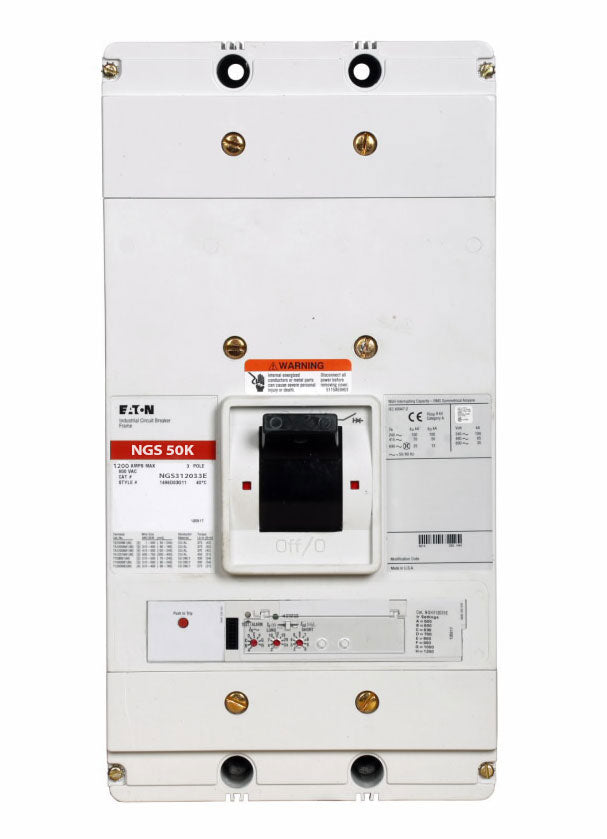

NGS312033E is a Cutler Hammer Series G NG-frame molded case electronic circuit breaker designed for high-capacity three-phase power distribution applications.This Eaton/Cutler Hammer breaker features a 3-pole configuration with a 1200 A current rating, 480 Vac voltage rating, Digitrip 310 RMS electronic LS trip, and solid-state protection with standard interrupting capacity suitable for demanding commercial and industrial installations.Key Specifications

• Part Number: NGS312033E
• Manufacturer: Cutler Hammer
• Family: Series G
• Type: NGS
• Voltage: 480 Vac
• Amperage: 1200 A
• Phase: 3
• Poles: 3
• AIC Rating: 50 kA at 480 Vac, 85 kA at 240 Vac
• Connection: Bolt-on, line and load
• Functions: LS - Long-time and short-time, Digitrip 310 RMS electronic LS trip
• Protection: Solid state electronic
• Trip Type: T167 electronic LS
• Frequency: 50-60 Hz
• Temperature Rating: 40 C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: NGS312033E
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : NGS
• Voltage : 480 Vac
• Amperage : 1200 A
• Phase : 3
• Poles : 3
• AIC rating : 50 kA at 480 Vac, 85 kA at 240 Vac
• Connection : Bolt-on, line and load
• Functions : LS long-time and short-time, Digitrip 310 RMS electronic LS trip
• Terminal Connection : Line/Load Lug
• Frame Size : 1200A/N
• Temp Rating : 40 C
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 500 MCM
• Breaker Type : LS Functionality
• Hz : 50-60 Hz
• Protection : Solid state electronic
• Phase Connection : ABC
• Trip Type : T167 electronic LS

Product Data

• UPC : 786685379401
• GTIN : 00786685379401
• Country of Origin : United States
• Dimensions : 6 in x 9 in x 9 in (Length/Depth x Height x Width)
• Weight : 48 lb
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
