Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
NGB3K080B

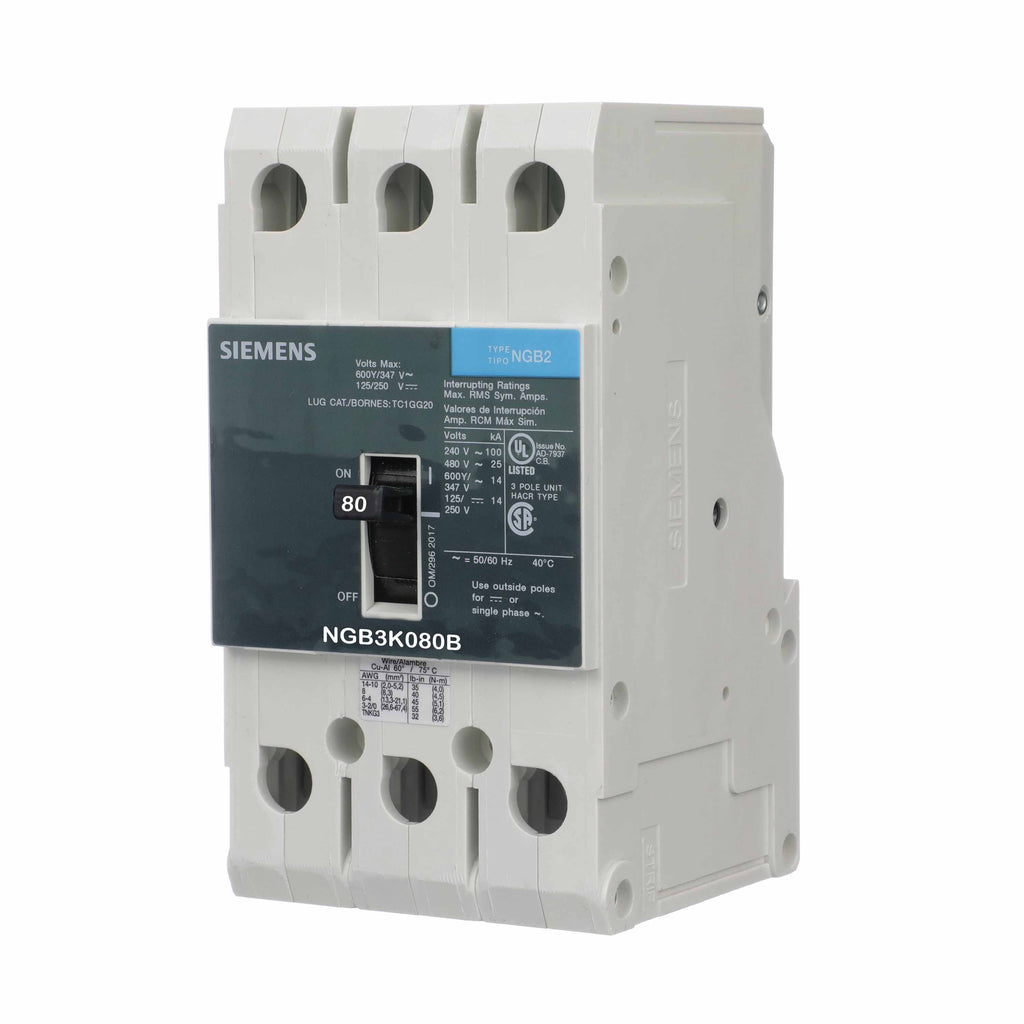

NGB3K080B is a Siemens 3 pole, 80 amp, 600 Volt bolt-on circuit breaker designed for reliable circuit protection.This Siemens NGB3K080B circuit breaker features a GB2 frame with a thermal magnetic trip unit. It supports a maximum voltage of 600Y/347V AC and has an interrupting rating of 25kA at 480V and 14kA at 600Y/347V. The breaker is UL489 certified and designed for bolt-on mounting, making it suitable for various industrial and commercial applications.
- Key Specifications
- Amperage: 80 Amps
- Voltage: 600Y/347V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA @ 480V, 14kA @ 600Y/347V
- Frame/Series: GB2 (NGB Frame)
- Trip Unit: Thermal Magnetic
- Certifications: UL489 Listed
- Part Number: NGB3K080B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : NGB
- Voltage : 600
- Amperage : 80
- Phase : 2
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13¡F-158¡F
- Protection : Thermal Magnetic
- UPC : 804766339523
- GTIN : 00804766339523
- Country of Origin : Mexico
- Dimensions : 7.00 x 4.098 x 4.701 inch
- Weight : 2.601
- Certification : UL, IEC
- Wire Size : 8 to 1/0 AWS, Cu/Al
