Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
NEL36600LIG

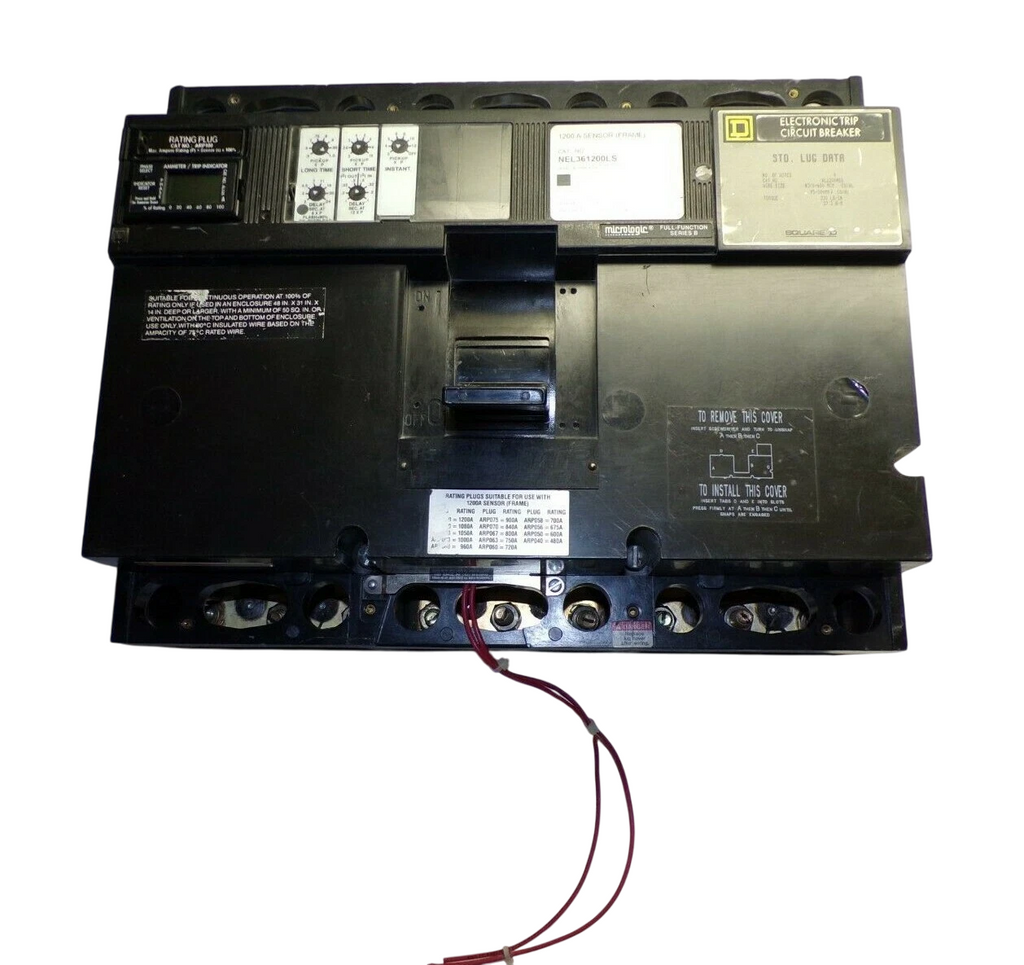

NEL36600LIG is a Square D molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems.This NEL series circuit breaker features a 600 ampere frame and trip rating, 600 volt maximum, and 3 poles for three-phase applications. It is engineered for plug-in mounting and offers long-time and instantaneous trip functions for effective circuit protection. The breaker is built to meet rigorous standards for durability and safety in demanding environments.
- 600A Frame Amperage
- 600A Trip Amperage
- 600V Maximum Voltage
- 3 Pole Configuration
- Plug-In Mounting Type
- NEL Series
- Long-Time and Instantaneous Trip Functions
- Thermal-Magnetic Trip Unit
- UL Listed
- CSA Certified
Specifications
- Part Number: NEL36600LIG
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Micrologic
- Type : NEL
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : LIG - Long-Time, Instantaneous and Ground Fault
- Frame Size : NE Frame
- Protection : Solid State
Product Data
- Weight : 82
