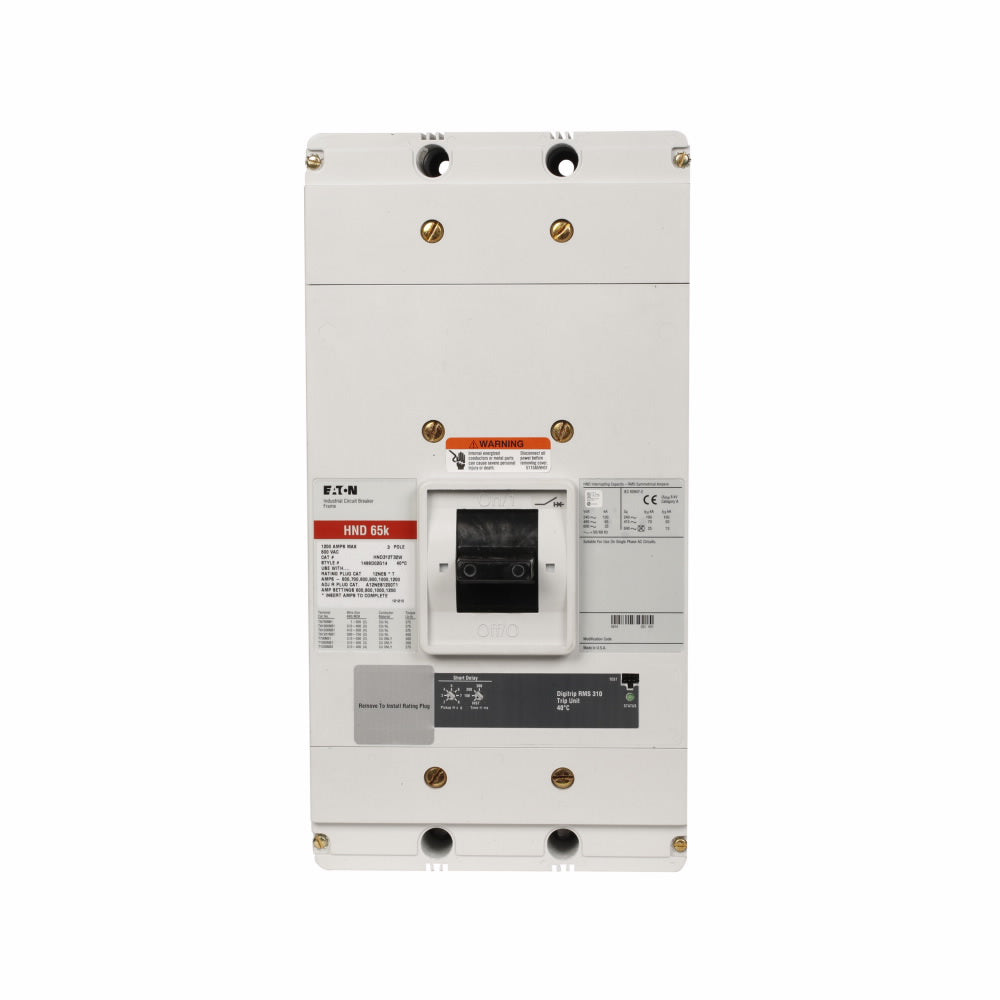

NDC3800T52W - Cutler Hammer Series C 800A 600V 3-Pole Electronic Molded Case Circuit Breaker

NDC3800T52W

NDC3800T52W is an Eaton Series C electronic molded case circuit breaker designed for industrial and commercial power distribution applications requiring high-capacity protection and reliable performance. This three-pole breaker features an electronic LSI (Long Short Instantaneous) trip unit that provides advanced protection against overloads and short circuits with precision control and coordination capabilities. The breaker is rated for 800 amperes at 600 volts AC and delivers an interrupt rating of 200 kAIC at 240 Vac and 100 kAIC at 480 Vac, making it suitable for demanding electrical systems. Built with the OPTIM 550 design philosophy, this NG frame breaker combines robust construction with modern electronic trip technology for enhanced system reliability and safety. The unit comes without terminals and is HACR rated for use in air-conditioning and refrigeration applications. Dimensions are 8.25 inches in height and width with a 5.5-inch depth, and the breaker weighs 44 pounds.

• Amperage Rating: 800 A
• Voltage Rating: 600 Vac
• Number of Poles: Three-pole
• Circuit Breaker Type: NDC
• Frame: NG (Series C)
• Trip Unit: Electronic LSI
• Interrupt Rating: 200 kAIC at 240 Vac, 100 kAIC at 480 Vac
• Design: OPTIM 550
• Terminals: Without terminals
• HACR Rated: Yes
• Product Weight: 44 lb
• Warranty: One year from installation or eighteen months from shipment, whichever occurs first

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NDC3800T52W
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : NDC
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Protection : Solid State

Product Data

• UPC : 78211440882
• GTIN : 00782114408827
• Dimensions : 5.5 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 44
