Product Info
- Manufacturer:Siemens
- Sub-Category:Trip Units & Programmers
Description
ND63T900

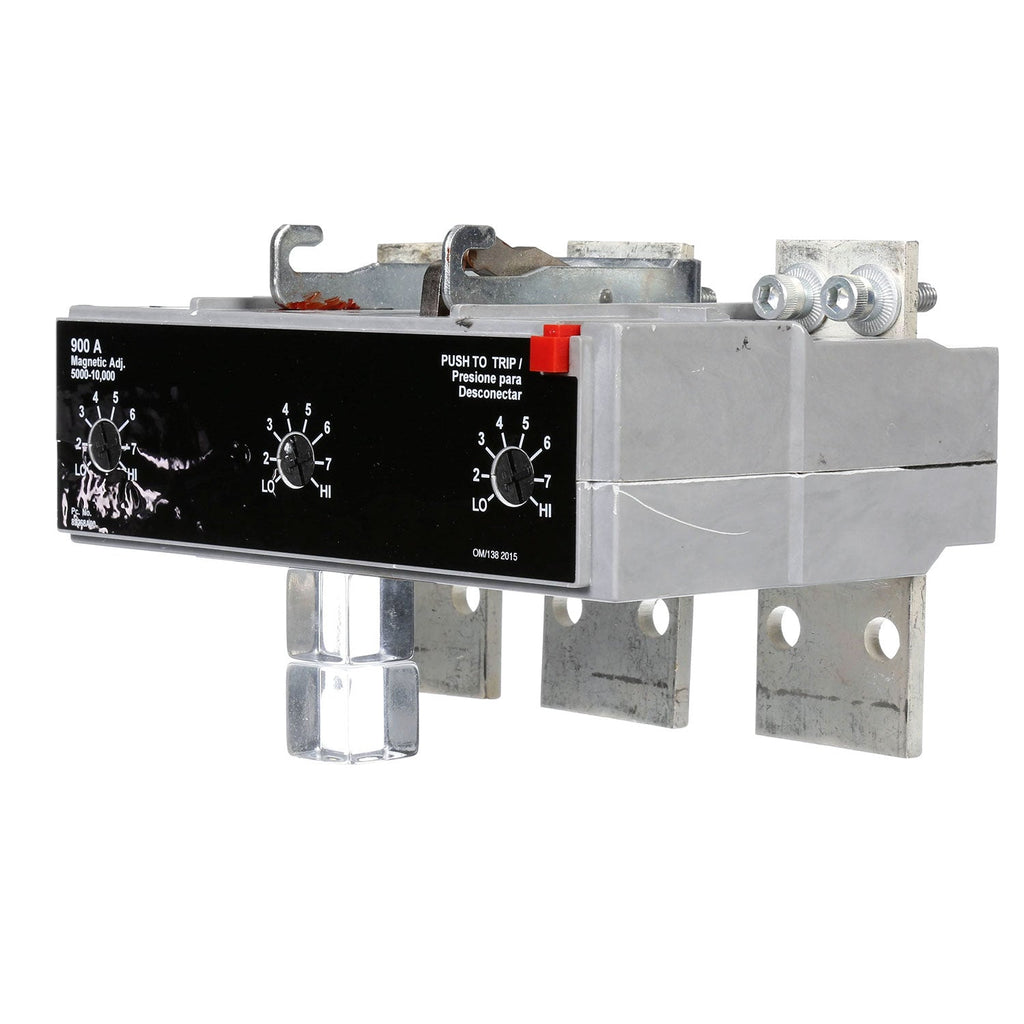

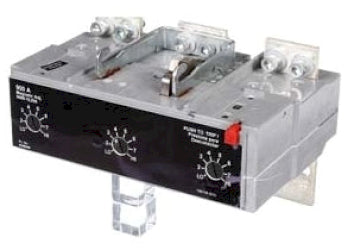

ND63T900 is a Siemens 900 Amp, 600 Volt, 3-Pole interchangeable thermal magnetic trip unit designed for ND Series molded case circuit breakers.This trip unit fits ND6 Series circuit breakers and provides reliable protection with a 900A current rating and compatibility with 600V systems. It features a thermal magnetic trip mechanism and is UL listed for safety and performance.
- Manufacturer: Siemens
- Part Number: ND63T900
- Amperage: 900 A
- Voltage Rating: 600 V AC
- Number of Poles: 3
- Frame Type: ND Series
- Trip Unit Type: Interchangeable Thermal Magnetic
- Mounting: Bolt-on for ND6 Series breakers
- Interrupt Rating: 50kA at 480V (typical for ND6 frame)
- Certifications: UL Listed
- Dimensions: Approx. 7.2 in L x 7.9 in W x 9.6 in H
Specifications
- Part Number: ND63T900
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Sentron Series
- Type : ND
- Voltage : 600
- Amperage : 900
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : 900
- Amperage Maximum : 900
- Protection : Thermal Magnetic
- Compatible Frames : ND,HND
Product Data
- UPC : 783643215672
- GTIN : 00783643215672
- Country of Origin : Mexico
- Weight : 6.1
- Certification : Ul Listed
- Wire Size : 250KCM to 500KCM, Cu/Al
