Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ND63B100

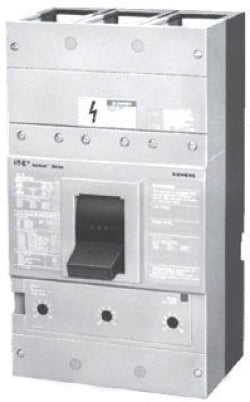

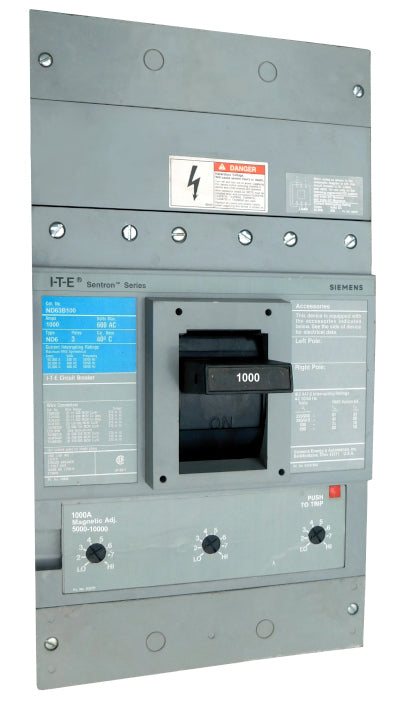

ND63B100 is a Siemens 3-pole thermal magnetic circuit breaker rated for 1000 Amps and 600 Volts AC, designed for reliable industrial and commercial power protection.ND63B100 features a robust ND frame with a standard breaking capacity suitable for demanding electrical systems. It supports line and load side lugs accommodating 250 to 500 KCM wire sizes and meets UL 489 and IEC 60947-2 safety standards.
- Amperage: 1000 Amps
- Voltage Rating: 600V AC (25kAIC), 480V AC (50kAIC), 240V AC (65kAIC)
- Poles: 3
- Trip Unit: Thermal Magnetic
- Frame: ND Frame
- Mounting Type: Standard 40°C breaker
- Interrupt Rating: 25kA at 600V, 50kA at 480V, 65kA at 240V
- Wire Range: 250 to 500 KCM (CU/AL)
- Dimensions: 9 x 16 x 6 inches
- Certifications: UL 489, IEC 60947-2
- Country of Origin: Mexico
Specifications
- Part Number: ND63B100
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ND
- Voltage : 600
- Amperage : 1000
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ND Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643215405
- GTIN : 00783643215405
- Country of Origin : Mexico
- Weight : 64
- Certification : UL, IEC
