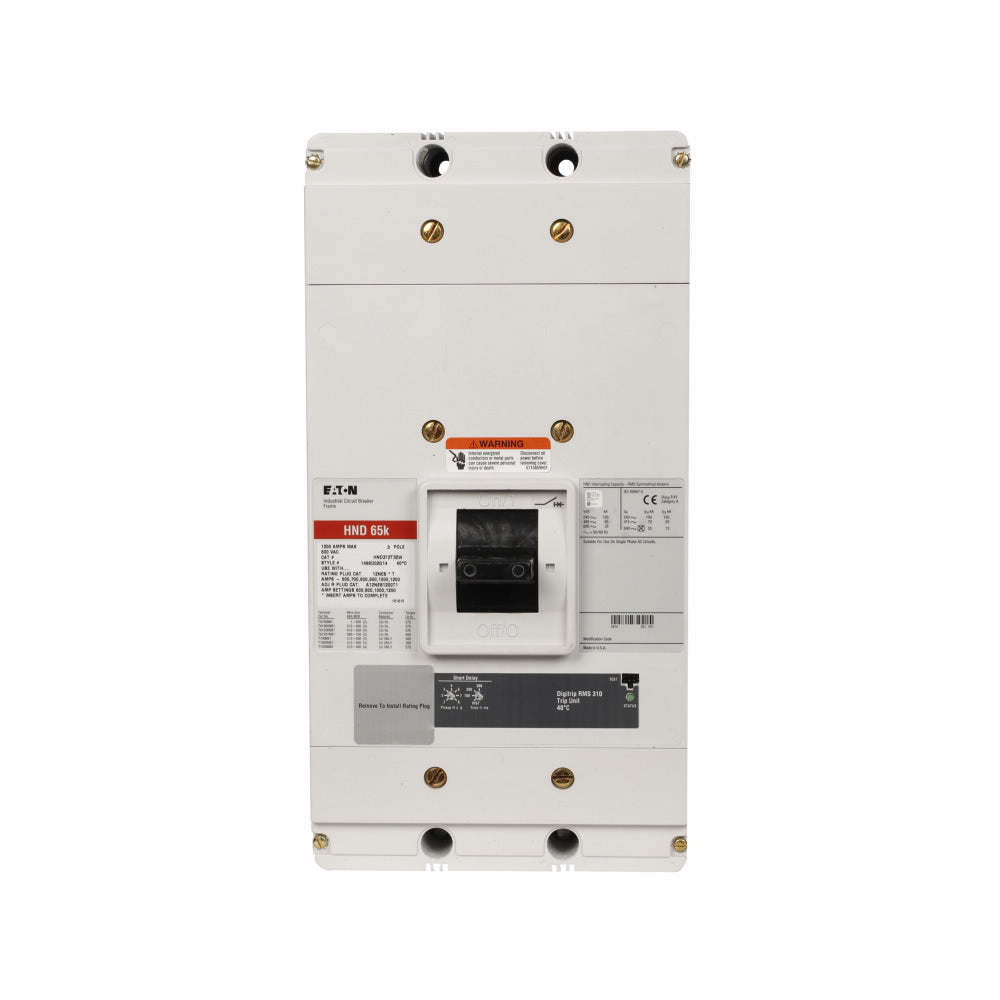

ND3800T56W - Eaton Series C 800A 600Vac 3-Pole Electronic Molded Case Circuit Breaker

ND3800T56W

ND3800T56W is an Eaton Series C electronic molded case circuit breaker designed for three-pole power distribution applications requiring 800-ampere capacity at 600 volts AC. This NG-frame complete breaker features OPTIM 550 design with electronic LSIG trip unit and zone selective interlock capability for coordinated protection in complex electrical systems. The breaker delivers reliable performance in industrial and commercial installations with HACR rating for motor circuit protection. Key Specifications

• Amperage Rating: 800 A
• Voltage Rating: 600 Vac
• Number of Poles: Three-pole
• Circuit Breaker Type: ND
• Frame: NG
• Trip Unit: Electronic LSIG T172
• Interrupt Rating: 85 kAIC at 240 Vac, 50 kAIC at 480 Vac
• Design: OPTIM 550
• Terminals: Without terminals
• Frequency: 50/60 Hz
• Certifications: HACR Rated
• Weight: 46 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ND3800T56W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : ND
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Frame Size : N Frame
• Protection : Solid State

Product Data

• UPC : 782114408605
• GTIN : 00782114408605
• Dimensions : 5.5 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 44
