2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
ND3800T36W

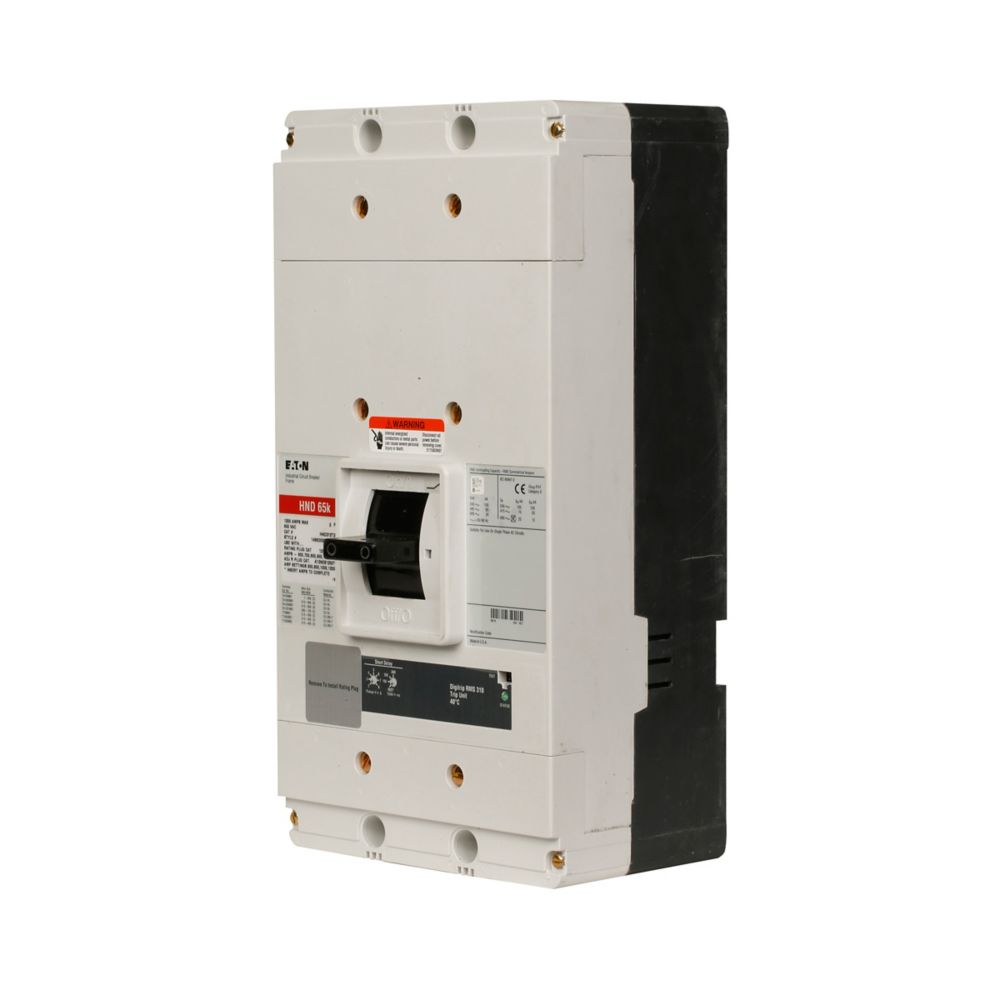

ND3800T36W is a Cutler Hammer 3 pole molded case circuit breaker rated for 800 amps and 600 volts with bolt-on mounting.This circuit breaker features a Type ND N-frame design with fixed thermal and magnetic trip units, providing reliable protection for industrial and commercial electrical systems. It has an interrupt rating of 50kA at 480V and 85kA at 240V, suitable for high fault current applications. The breaker is UL listed and CSA certified, ensuring compliance with safety standards.
- Amperage: 800 A
- Voltage: 600 VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 50kA at 480V, 85kA at 240V
- Frame/Series: N Frame (Type ND)
- Trip Unit: Fixed Thermal / Fixed Magnetic
- Certifications: UL Listed, CSA Certified
- Manufacturer: Cutler Hammer (Eaton)
Specifications
- Part Number: ND3800T36W
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : ND
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Frame Size : N Frame
- Protection : Solid State
Product Data
- UPC : 786679253007
- GTIN : 00786679253007
- Country of Origin : United States
- Dimensions : 5.5 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
- Weight : 46
- Certification : HACR Rated
