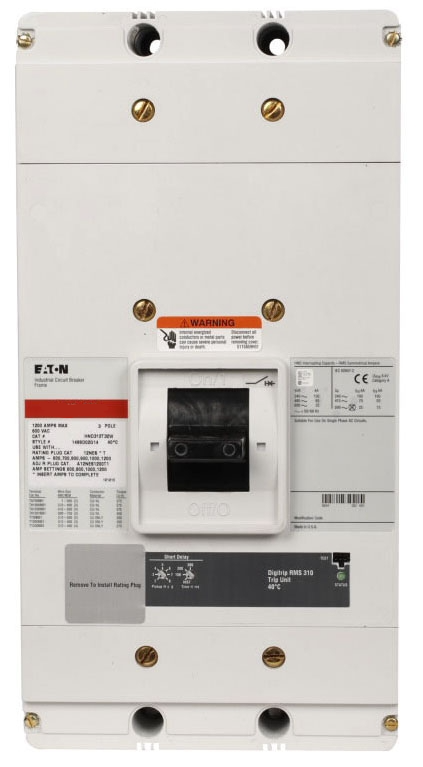

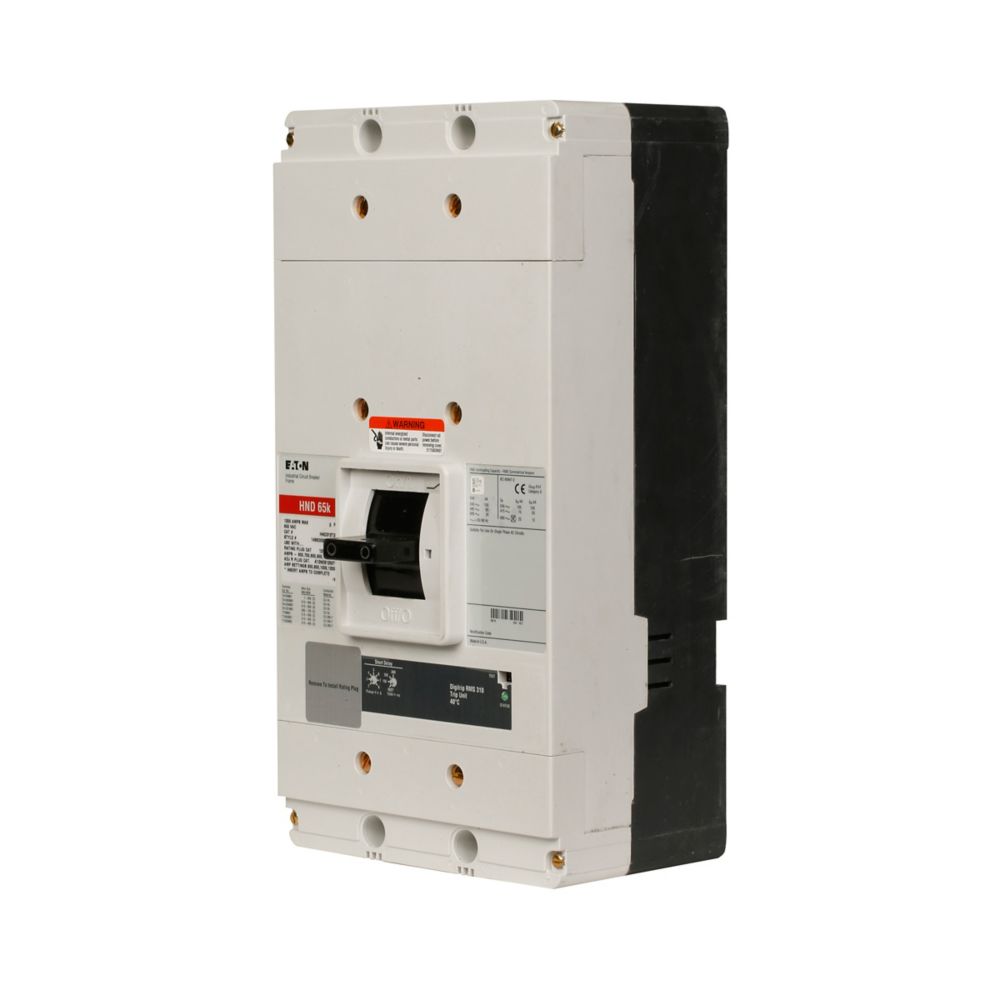

ND312T32W - Cutler Hammer 1200A 600VAC 3-Pole Electronic Molded Case Circuit Breaker NG Frame

ND312T32W

ND312T32W is a Cutler Hammer electronic molded case circuit breaker designed for high-performance power distribution applications.This circuit breaker features a 1200 ampere rating, 600 VAC voltage rating, and a three-pole configuration. It uses an NG frame and includes an electronic LSI trip unit (Digitrip 310 RMS) for precise protection. The breaker has an interrupt rating of 85 kAIC at 240 VAC and 50 kAIC at 480 VAC, is 80% rated, and is HACR rated for HVAC applications. It is designed for bolt-on mounting and operates at 50/60 Hz frequency.

Key Specifications
• Amperage: 1200 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Frame Type: NG
• Trip Unit: Electronic LSI (Digitrip 310 RMS)
• Interrupt Rating: 85 kAIC at 240 VAC, 50 kAIC at 480 VAC
• Mounting Type: Bolt-On
• Frequency: 50/60 Hz
• Rating: 80% rated
• Certifications: HACR Rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: ND312T32W
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : ND
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
• Frame Size : N Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State



Product Data

• UPC : 786679252666
• GTIN : 00786679252666
• Country of Origin : United States
• Dimensions : 5.5 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 49.15
• Certification : HACR Rated
