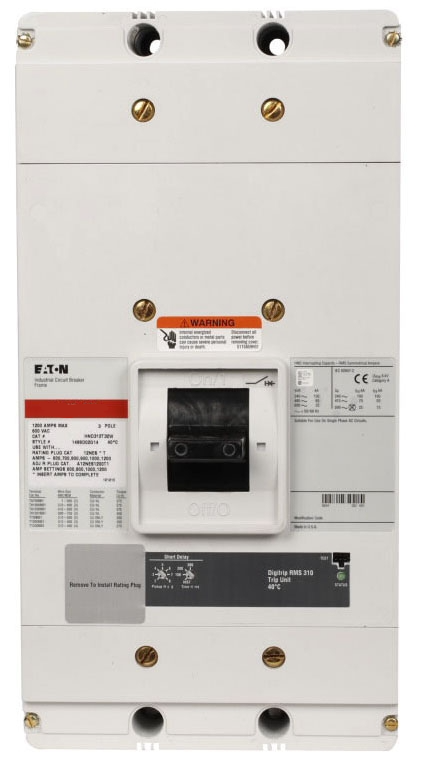

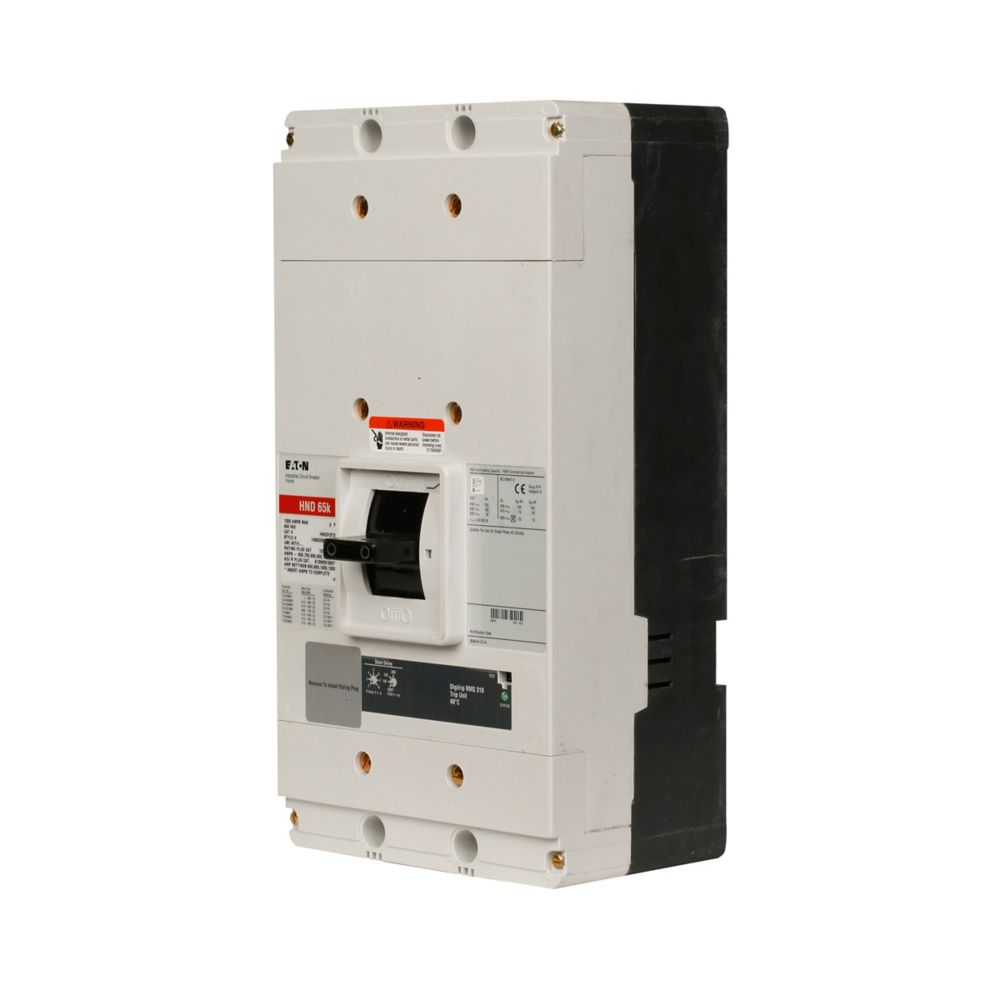

ND312T33W - Eaton 1200A 600V 3-Pole Electronic Molded Case Circuit Breaker Series C NG Frame

ND312T33W

ND312T33W is an Eaton Series C electronic molded case circuit breaker with a 1200 Amp rating, 600 Vac voltage, and 3 poles designed for industrial applications.ND312T33W features an NG frame with Digitrip 310 RMS electronic LS trip unit, 85 kAIC interrupt rating at 240 Vac, and 50 kAIC at 480 Vac. It is 80% rated, panel mount type, and UL, CSA, CE certified for safety and reliability.

Key Specifications
• Amperage: 1200 A
• Voltage Rating: 600 Vac
• Poles: 3 (Three-pole)
• Frame Type: NG Frame
• Trip Unit: Digitrip 310 RMS Electronic LS Trip
• Interrupt Rating: 85 kAIC @ 240 Vac, 50 kAIC @ 480 Vac
• Mounting Type: Panel Mount
• Frequency: 50/60 Hz
• Rated 80% Duty Cycle
• Certifications: UL, CSA, CE
• Terminals: Without terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ND312T33W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : ND
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Bolt-On
• Functions : LS - Long-Time and Short-Time
• Frame Size : N Frame
• Protection : Solid State

Product Data

• UPC : 786679252642
• GTIN : 00786679252642
• Country of Origin : United States
• Dimensions : 5.5 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 48.35
• Certification : HACR Rated
