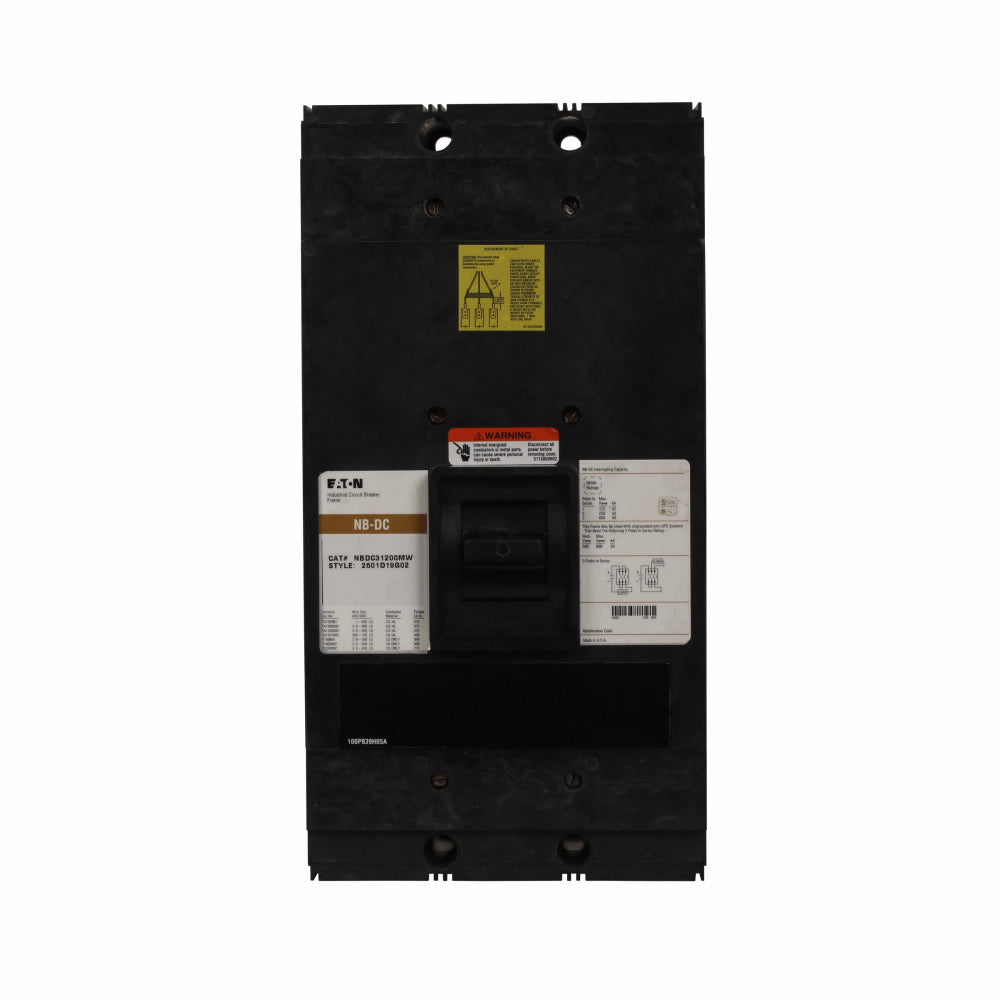

NBDC31000MW - Eaton 1000A 600V 3-Pole Molded Case Circuit Breaker NB Frame

NBDC31000MW

NBDC31000MW is a 3-pole molded case circuit breaker from Eaton designed for 1000 ampere rating and 600 volts AC applications.

This Eaton NBDC31000MW circuit breaker features a 3-pole configuration with a 1000A continuous current rating and is built on the NB frame series. It supports a voltage rating of 600VAC and offers a high interrupting capacity of 50 kAIC. The breaker is designed for panel or surface mounting without terminals included, and it incorporates a thermal-magnetic trip unit for reliable circuit protection. This product meets applicable UL and IEC standards, ensuring safety and performance in industrial and commercial electrical distribution systems.

• Amperage Rating: 1000A
• Voltage Rating: 600VAC
• Number of Poles: 3
• Frame/Series: NB Frame
• Interrupting Rating: 50 kAIC
• Trip Unit Type: Thermal-Magnetic
• Mounting Type: Panel or surface mount
• Terminals: Not included
• Certifications: UL 489, IEC 60947-2 compliant
• Country of Origin: USA
• Dimensions: Approx. 16" height, 8 1/4" width, 5 1/2" length

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: NBDC31000MW
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : NB Series
• Voltage : 600
• Amperage : 1000
• Phase : 3
• Poles : 3
• AIC rating : 50kA@600V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 78667955800
• GTIN : 00786679558003
• Country of Origin : United States
• Dimensions : 5.5 in x 16 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 1
• Certification : UL 489
