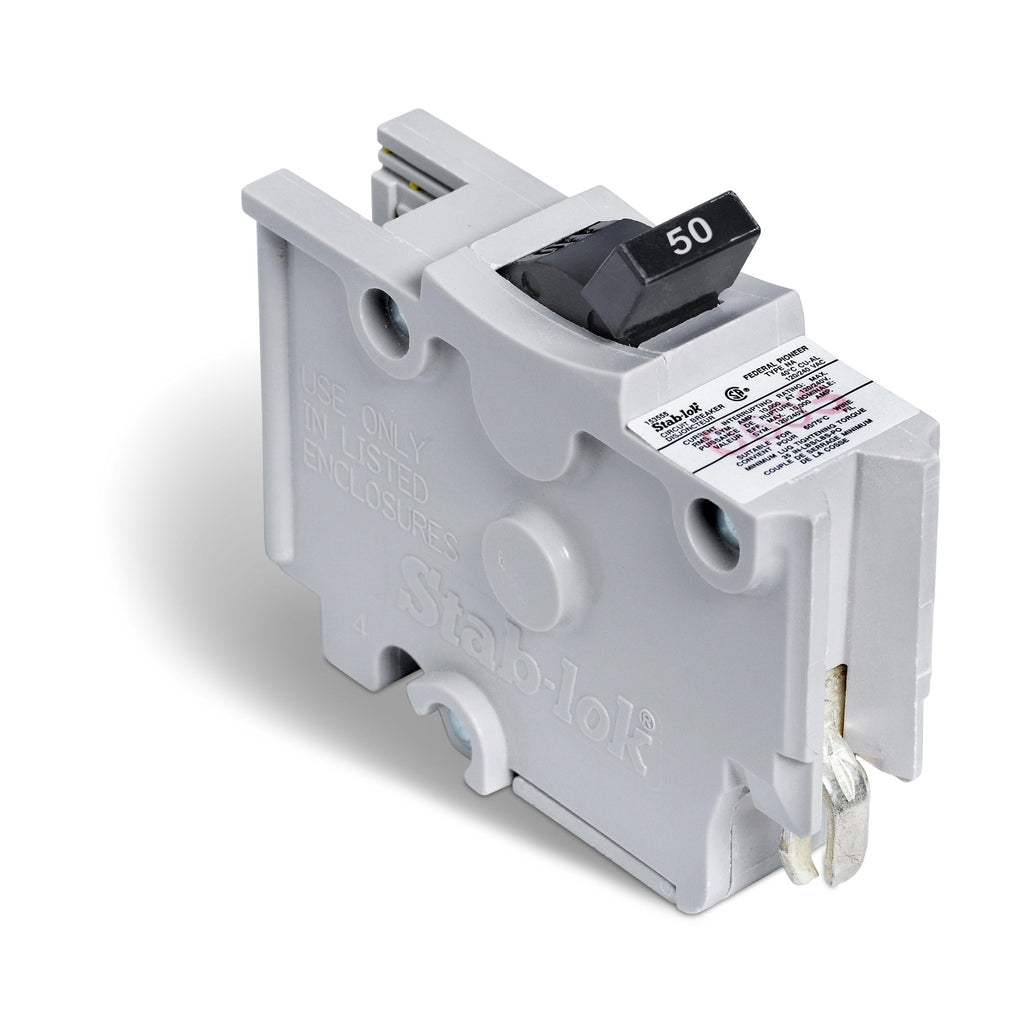

NA50 - American/Federal Pacific 50 Amp 1 Pole 120VAC Circuit Breaker Stab-Lok Series

NA50

NA50 is a 50 Amp, 1 Pole circuit breaker from American/Federal Pacific designed for 120VAC applications.NA50 is a thermal magnetic molded case circuit breaker featuring a plug-in mounting type and Stab-Lok series design. It offers a 10kA interrupting rating at 120 volts and includes long-time and instantaneous trip functions for reliable protection. The breaker is single-phase with load side lug terminal connections and is suitable for Federal Pacific load centers.

• Manufacturer: American/Federal Pacific
• Series: Stab-Lok
• Amperage: 50 Amps
• Voltage: 120VAC
• Poles: 1
• Interrupting Rating: 10kA at 120V
• Mounting Type: Plug-In
• Protection: Thermal Magnetic
• Trip Functions: Long-Time and Instantaneous
• Terminal Connection: Load Side Lug
• Phase: Single

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NA50
• Manufacturer : American/Federal Pacific
• Brand : American/Federal Pacific
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Stab-Lok
• Type : NA
• Voltage : 120
• Amperage : 50
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 0.26
• Certification : CSA
• Wire Size : AWG 14...AWG 2 aluminum/copper
