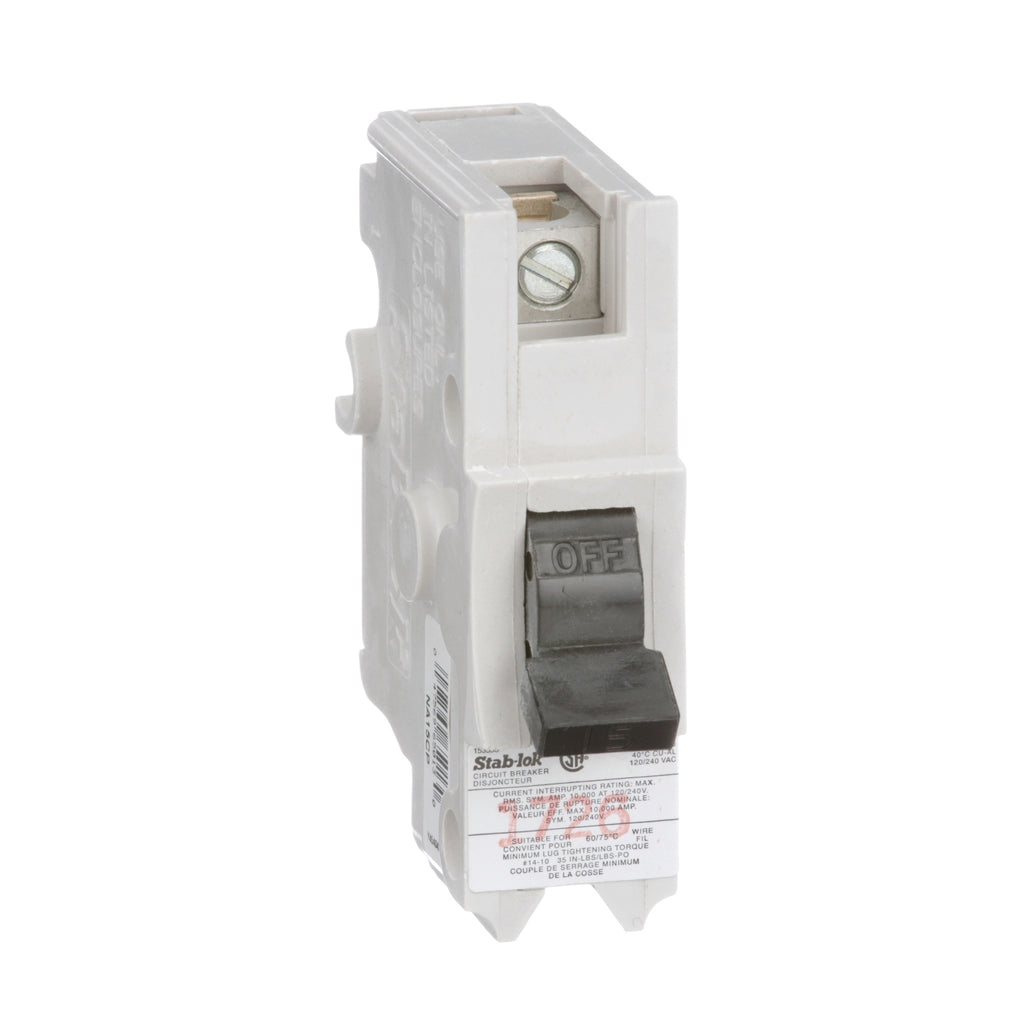

NA15 - American/Federal Pacific 15 Amp 1-Pole 120V NA Type Circuit Breaker Plug Mount 10kA Interrupt Rating

NA15

NA15 is a 15 amp, 1-pole circuit breaker manufactured by American/Federal Pacific designed for plug-in mounting in NA type load centers.This circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions, suitable for 120 volts AC applications. It has a 10,000 amp interrupt rating (AIC) and is UL-listed and CSA-certified for safety and reliability. The breaker is designed for use in Federal Pacific Electric load centers and supports wire sizes from 14 to 6 AWG.

• Manufacturer: American/Federal Pacific
• Part Number: NA15
• Amperage: 15 A
• Voltage: 120 V AC
• Poles: 1
• Mounting Type: Plug-in
• Interrupt Rating: 10 kA (10,000 AIC)
• Trip Unit: Thermal Magnetic
• Frame/Series: NA Type
• Certifications: UL Listed, CSA Certified
• Wire Size Range: 14 to 6 AWG
• Dimensions: Approx. 3.36 in L x 1 in W x 2.55 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: NA15
• Manufacturer : American/Federal Pacific
• Brand : American/Federal Pacific
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Stab-Lok
• Type : NA
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 0.26
• Certification : CSA
• Wire Size : AWG 14...AWG 2 copper
