Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
MXD63L800

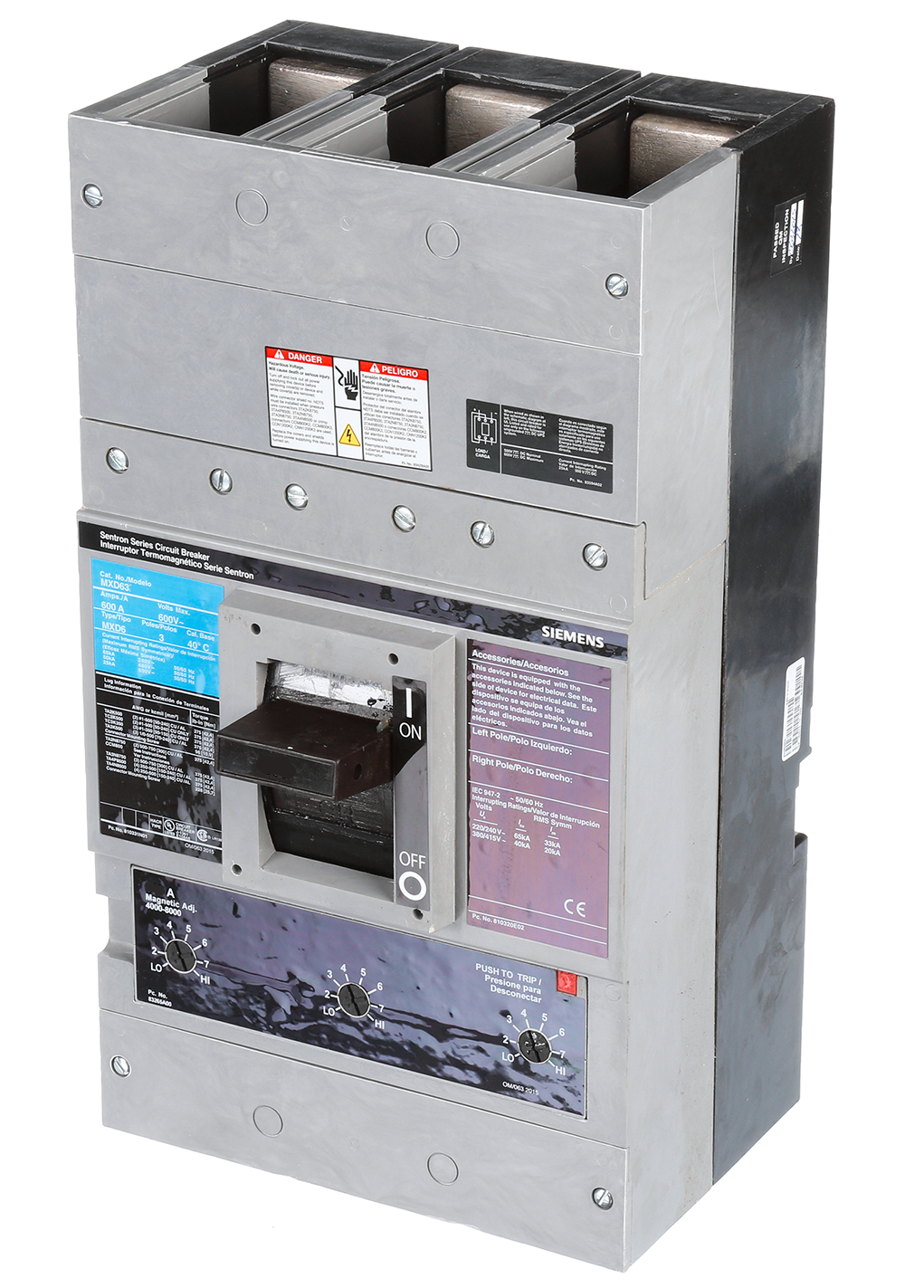

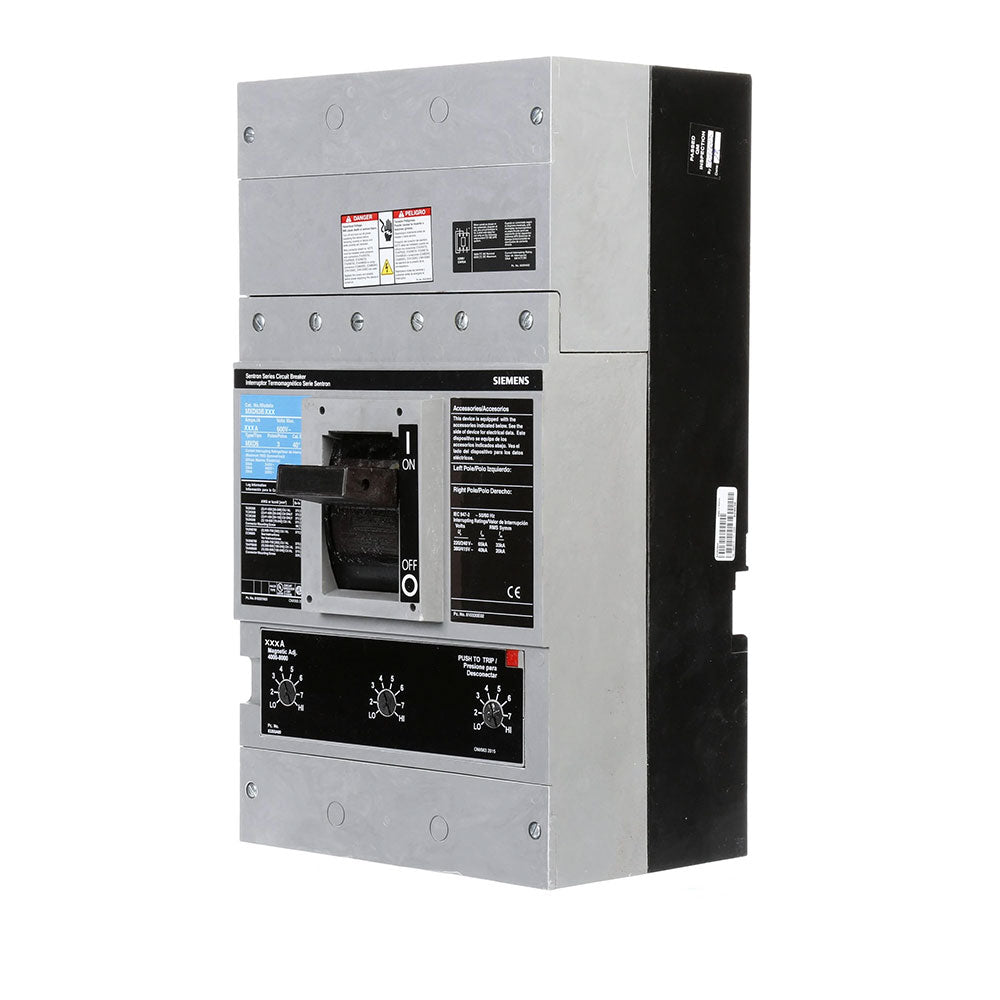

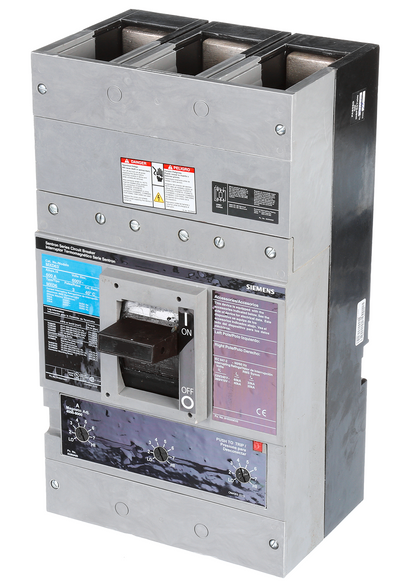

MXD63L800 is a Siemens 3 pole, 800 amp, 600 volt circuit breaker designed for industrial power distribution applications.This Siemens MXD63L800 circuit breaker features a bolt-on mounting type with a magnetic-only trip unit, providing instantaneous trip protection with a magnetic range of 3000-6000 amps. It has a 50kA interrupting rating at 480V AC and is part of the MXD frame series, suitable for motor circuit protection and other specialized uses.
- Manufacturer: Siemens
- Part Number: MXD63L800
- Amperage: 800A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 50kA @ 480V
- Trip Unit: Magnetic Only (Instantaneous)
- Frame/Series: MXD
- Application: Motor Circuit Protector
- Magnetic Trip Range: 3000-6000A
- Certifications: UL Listed, CSA Certified (typical for Siemens MCCBs)
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: MXD63L800
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : MXD
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : Instantaneous Trip
- Frame Size : MD Frame
- Protection : Magnetic Only
Product Data
- UPC : 783643215245
- GTIN : 00783643215245
- Country of Origin : Mexico
- Weight : 53.7
- Certification : Ul Listed
